REXROTH IndraControl L40 Series - Fig. 8-15: Connecting the Shield to the Shield Connector

IndraControl L40 Installation and Maintenance 8-19
DOK-CONTRL-IC*L40*****-PR03-EN-P
Connecting Shielded Lines Via the Shield Connector
a
15 mm
(0.591")
8mm
(0.315")
1
2
3
4
5
6
Schirmstecker.FH9

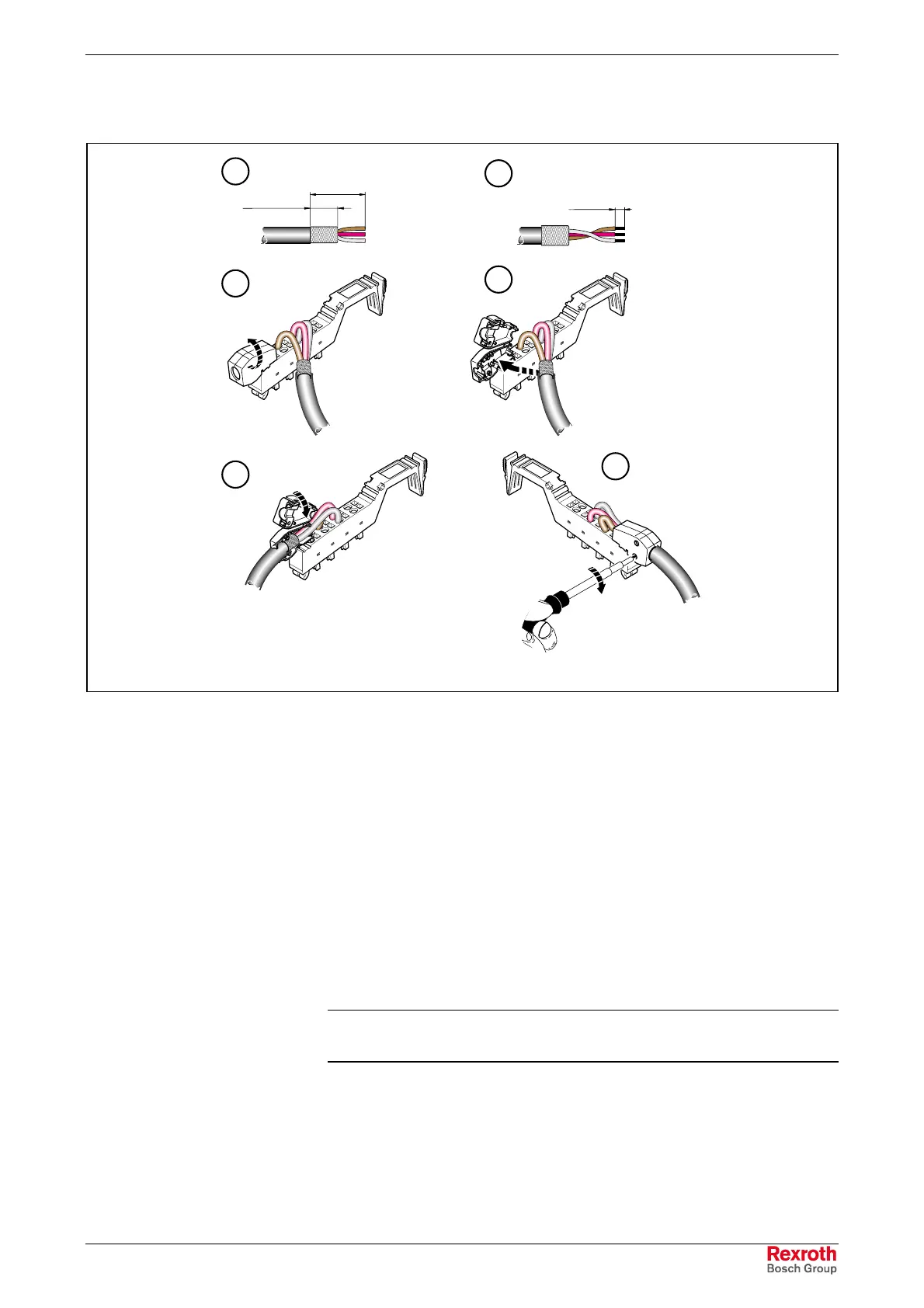

Fig. 8-15: Connecting the shield to the shield connector
Below, connection of a shielded line is described by example of an
"analog line".
Proceed as follows:
• Strip the outer sheath of the line to the desired length (a) (1).
The desired length (a) depends on the position where you connect the
cores and on whether you intend to place the cores between the
connection point and shield connection in a generous or a tight
arrangement.
• Shorten the braid to 15 mm (1).
• Place the braid around the outer sheath (2).
• Remove the protective foil.
• Strip the lines for 8 mm (2).
Note: The Rexroth Inline wiring is provided without connector
sleeves.
Stripping the Lines
