IndraControl L40 Connections and Interfaces 7-27
DOK-CONTRL-IC*L40*****-PR03-EN-P

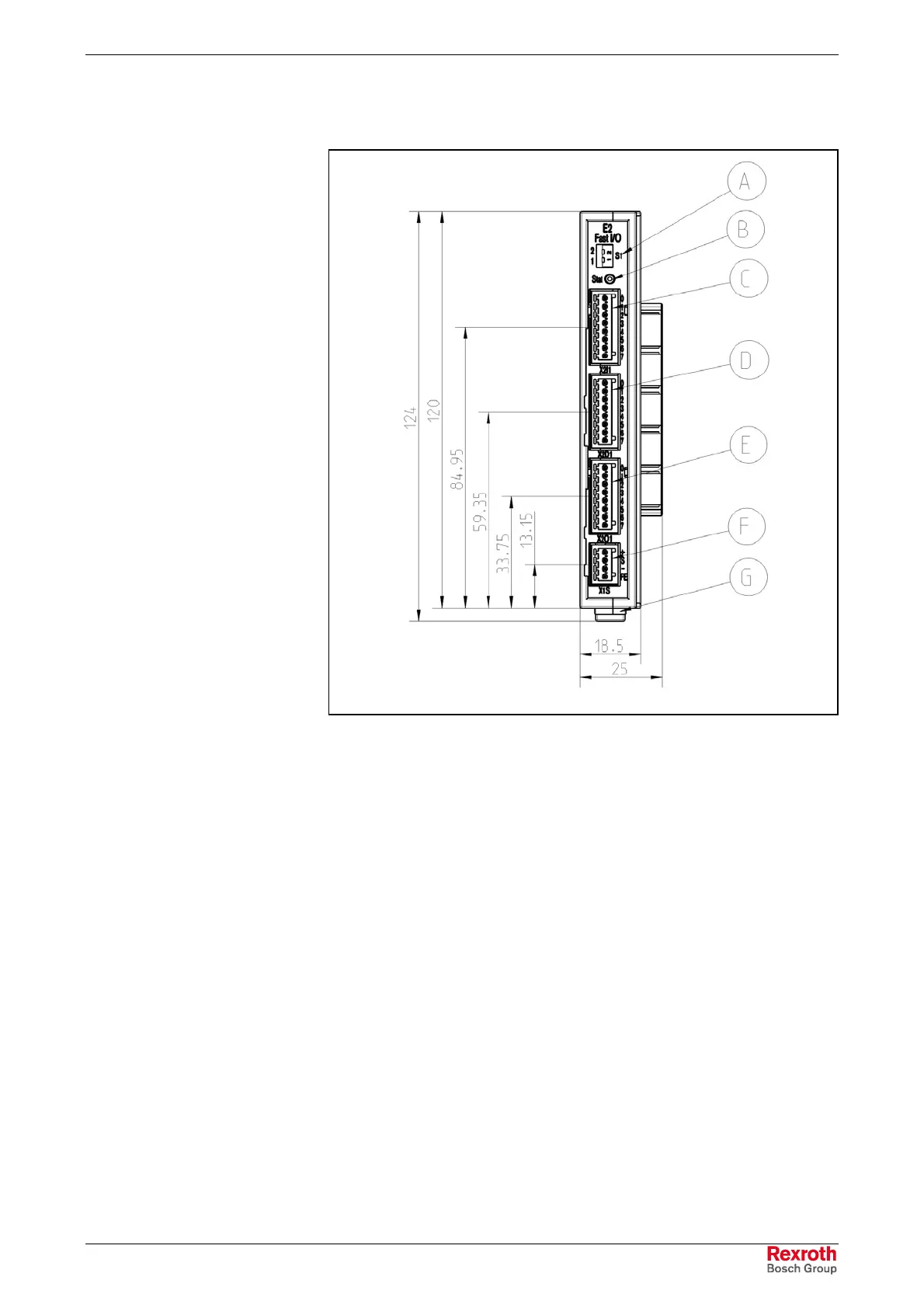

CFL01.1-E2 Fast I/O Function Module
CFL01.1-E2.TIF
A: S1, switch for slot number
B: Stat, status indicator of the function module
C: X2I1, digital inputs
D: X2D1, digital inputs/outputs
E: X2O1, digital outputs
F: X1S, power supply and FE
G: Mounting rail interlock
Fig. 7-40: Fast I/O function module
Each Fast I/O function module is equipped as follows:
• 8 inputs
• 8 inputs/outputs (selectable bit by bit)
• 8 outputs
• 3 MICRO COMBICON spring terminals with 8 outputs and 8 inputs
(X2I1, X2D1 and X2O1)
• 1 MICRO COMBICON spring terminal with power supply and
functional earth ground
• LED status indicator power fail and overload
• Current per output 500 mA for 24 V nominal voltage
• Delay time of the inputs 0 -> 1 typ. 40 µs, 1 -> 0 typ. 45 µs
• Delay time of the outputs 0 -> 1 typ. 70 µs, 1 -> 0 typ. 70 µs
Properties
