IndraControl L40 System Presentation 1-1
DOK-CONTRL-IC*L40*****-PR03-EN-P
1 System Presentation
1.1 Brief Description of the IndraControl L40
The IndraControl L40 is a modular and scalable control. It combines the
benefits of an embedded-PC architecture with a standardized I/O system
on the basis of terminal technology. It is a universal hardware platform
that can be used for motion-logic and PLC applications. The hardware is
available in system-specific versions (e.g. with/without SERCOS
interface). It provides onboard interfaces, e. g. high-speed inputs and
outputs (8 each) and communication interfaces, such as Ethernet,
PROFIBUS, RS232 and SERCOS. Via the integrated PCI bus, additional
modules permit the extension of the IndraControl L40 by additional field
bus and technology interfaces, such as DeviceNet and master axis
encoder interfaces. The locally available I/O units can be extended by the
Rexroth Inline I/O system, just by simply mounting the components side
by side. Application programs, inclusive runtime, are completely stored to
an easily accessible standardized compact flash medium.
1.2 View
Operating elements and interfaces are arranged on the front.
The eight-digit display with four operator keys, the reset button with light-
emitting diode, the RS232 interface, and the receptacle for the compact
flash card are provided to the left of the unit. Depending on the design
further interfaces (Ethernet, PROFIBUS DP, SERCOS, ready contact) are
located in the central section of the unit. The terminals for digital inputs
and outputs (eight each) and the voltage supply connectors are arranged
to the right of the unit.
PST2376_02R.tif

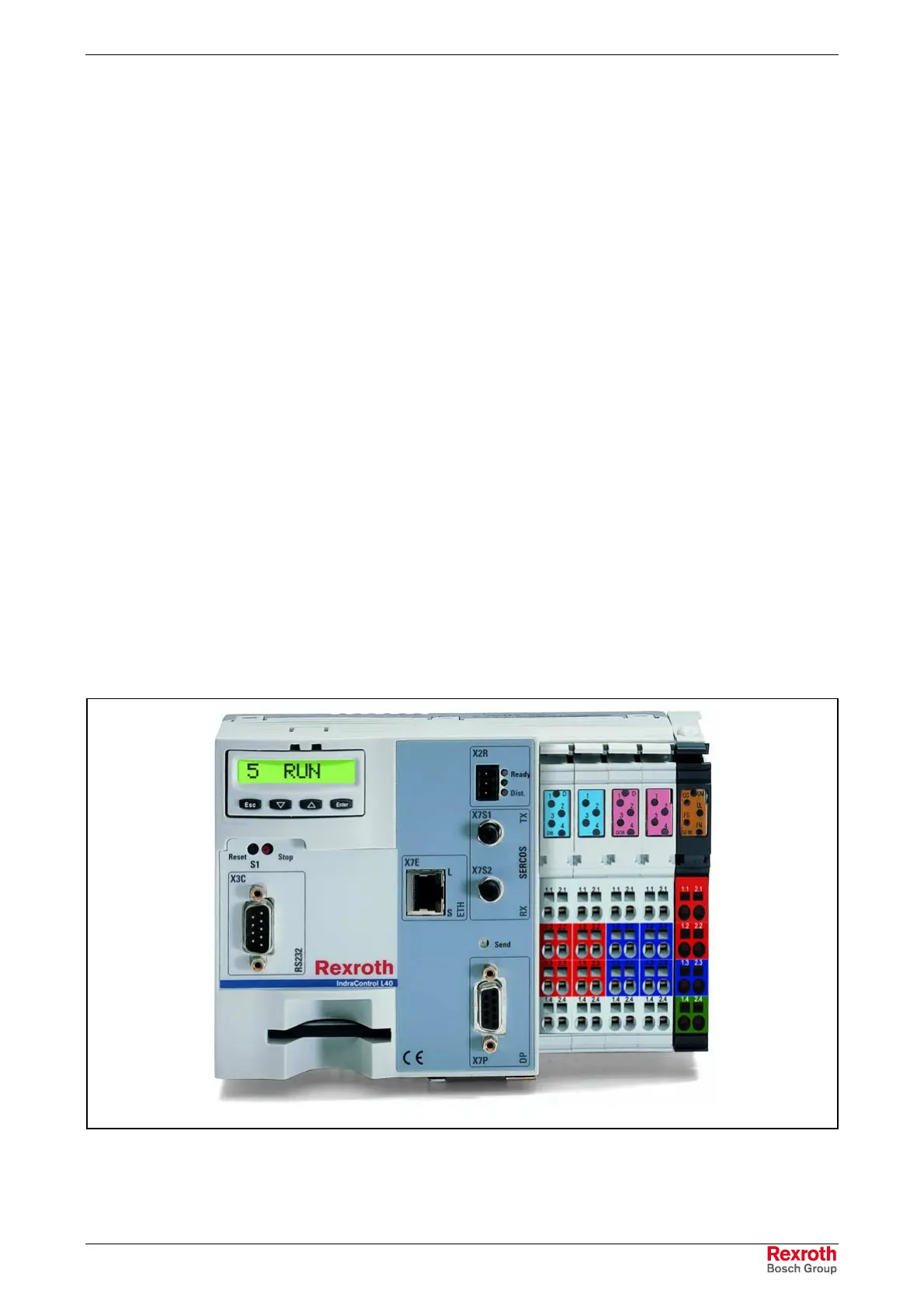

Fig. 1-1: Front view of an IndraControl L40
