8-20 Installation and Maintenance IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P
• Put a screwdriver into the actuation slot of the appropriate terminal
point (Fig. 8-14, A) as far as necessary to be able to insert the core
into the opening of the spring.
• Insert the core (Fig. 8-14, B). Pull the screwdriver out of the opening.
This fixes the core.
Please refer to the pertinent module-specific data sheet for information on
the connector pin assignment .
• Open the shield connector (3).
• Check the orientation of the shield clip in the shield connector (see
Fig. 8-15).
• Place the line including surrounding braid in the shield connector (4).
• Close the shield connector (5).
• Tighten the screws on the shield connector using a screwdriver (6).
1
1
1
2
1
3
1
4
1
5
1
6
a
Schirmschelle.FH9

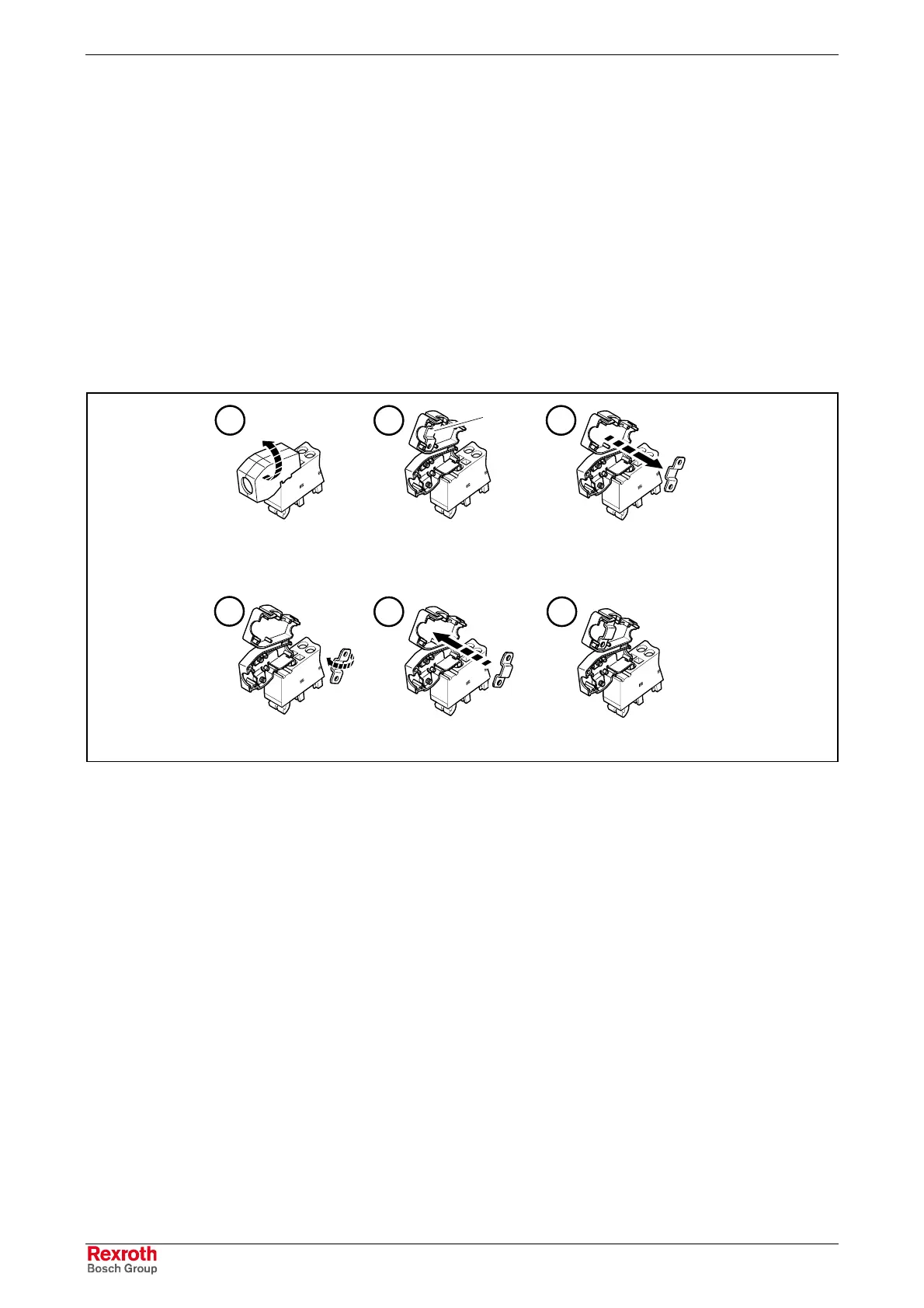

Fig. 8-16: Orientation of the shield clip
The shield clip (a in Fig. 8-16, 2) in the shield connector can be used
according to the line cross-section. If thicker lines are used, the camber of
the clip must be directed away from the line (Fig. 8-16, 2). If thinner lines
are used, the camber of the clip must be directed towards the line
(Fig. 8-16, 6).
If you have to change the orientation of the shield clip, proceed as
described below and shown in Fig. 8-16:
• Open the housing of the shield connector (1).
• On delivery, the shield connector is intended for the connection of
thicker lines (2).
• Remove the clip (3), turn the clip according to the cross-section of the
line used (4), and fit the clip (5).
• Figure 6 illustrates the clip, if a thin line is used.
8.4 Maintenance
Include the following measures in your maintenance schedule:
• At least once a year, check all plug and terminal connections for
proper tightness and damage. Verify that lines and cables are not
broken or squeezed. Replace damaged parts immediately.
Wiring the Connectors
Connecting the Shield
Shield Clip
