IndraControl L40 Installation and Maintenance 8-7
DOK-CONTRL-IC*L40*****-PR03-EN-P
Modulentnahme.FH9

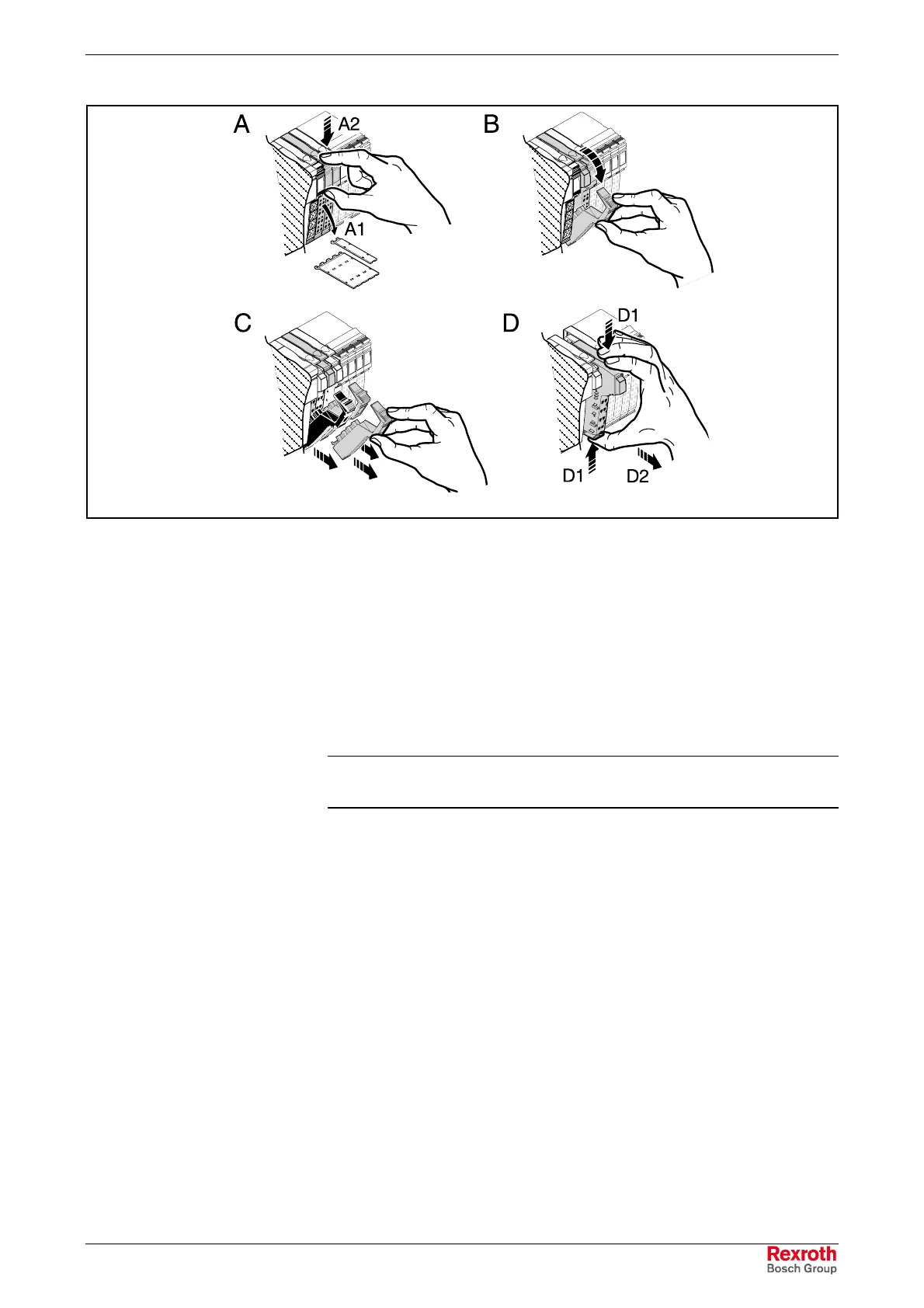

Fig. 8-5: Removing a module
If you intend to replace a module within the Rexroth Inline station,
proceed as described above to remove it. Do not latch on the adjacent
connector of the neighboring module to the left yet.
Insert the socket of the new module. Refit all connectors.
Fuse Replacement
If segment terminals with fuse are used, the connected voltage and the
state of the fuse are monitored and indicated by diagnostic indicators (see
the chapter entitled "Indicators on the Supply Terminals" on page 9-15).
Note: A missing fuse must be installed; a defective fuse must be
replaced.
When replacing the fuse, please observe the following instructions on the
safety of your health and the protection of your station!
1. Always use the screwdriver with care to prevent yourself and any
other person from being injured.
2. Pry out the fuse at the metal contact. Do not pry the fuse out at the
glass body to prevent the latter from being broken.
3. Pry out the fuse carefully on one side and then remove it by hand.
Take care not to drop the fuse into your station.
Replacing a Module
