8-2 Installation and Maintenance IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P

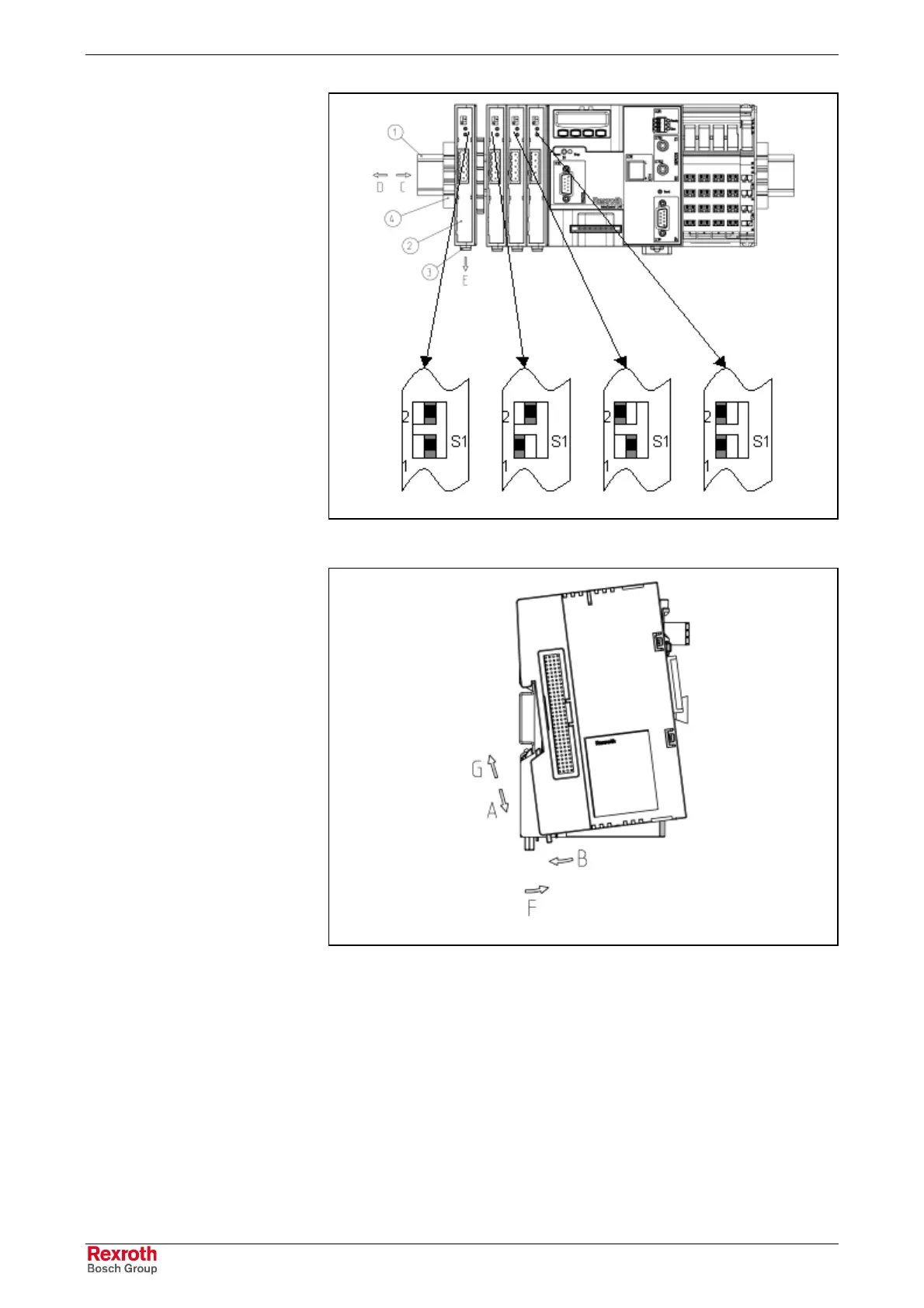

Fig. 8-1: Module slot and slot number of function modules
Fig. 8-2: Fitting and removing a function module
The function modules are fitted on the left 120-pin female connector of
the IndraControl L40.
Hang the function module (2) onto the mounting rail (1,A) and tilt it (B) to
the mounting rail until the interlock (3) snaps in.
Then, slide (C) the module on the left 120-pin female connector until a
safe connection via the PCI
PLUS
bus is established. If necessary, proceed
in the same manner with further function modules that are mounted in
series.
Adjust the function module with the end clamp (4) on the mounting rail.
Fitting a Function Module
