7-26 Connections and Interfaces IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P

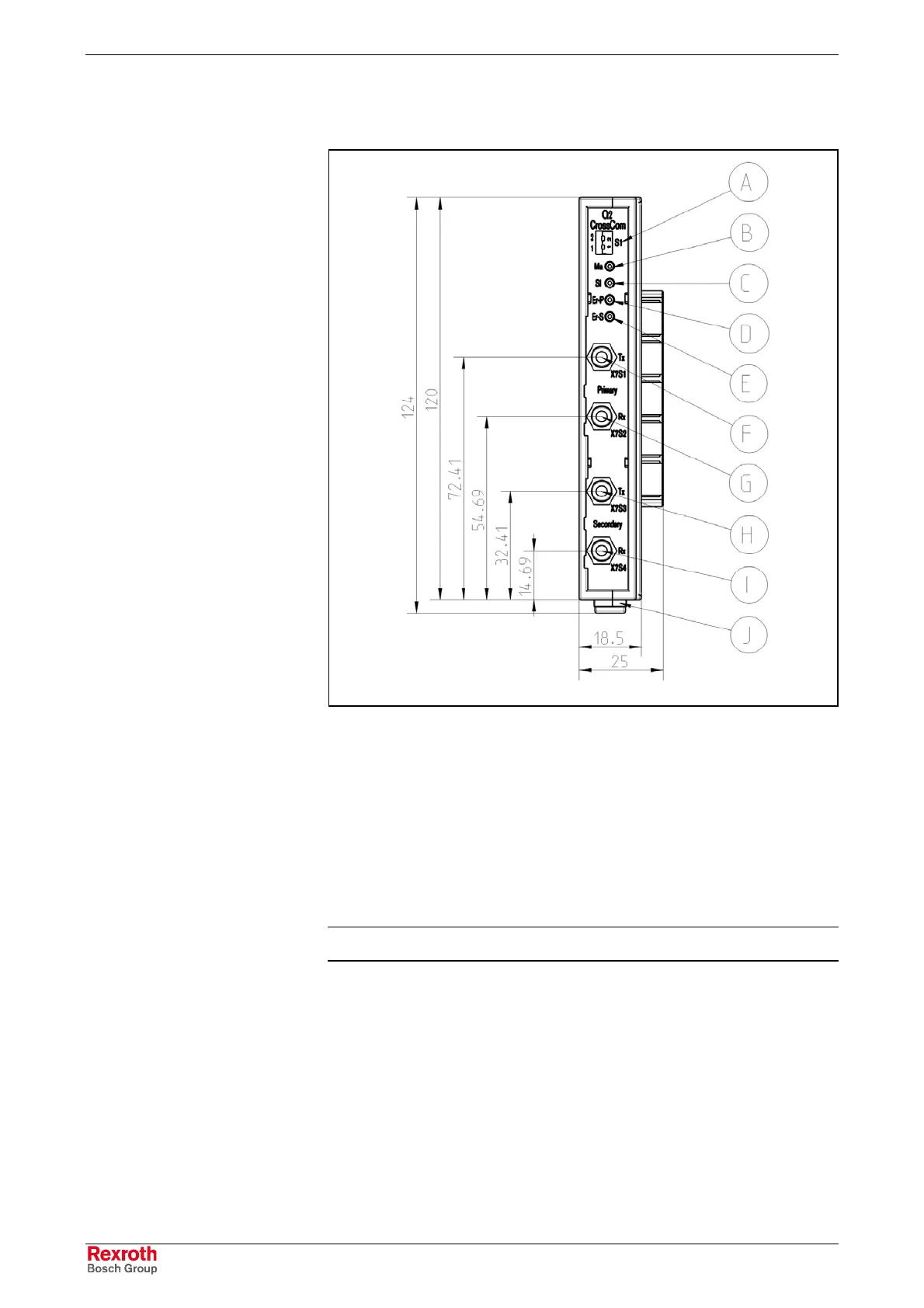

CFL01.1-Q2 Cross Communication Function Module
CFL01.1-Q2.TIF
A S1, switch for slot number
B Ma, indicator of the cross communication MASTER mode
C Sl, indicator of the cross communication SLAVE mode
D Er-P, primary ring error
E Er-S, secondary ring error
F X7S1, FO transmitter of the primary ring (SERCOS transmitter)
G X7S2, FO receiver of the primary ring (SERCOS receiver)
H X7S3, FO transmitter of the secondary ring (SERCOS transmitter)
I X7S4, FO receiver of the secondary ring (SERCOS receiver)
J Mounting rail interlock
Fig. 7-39: Cross communication function module
Note: Cable fixing during installation required!
For further descriptions please refer to the particular system-
specific manual.
