9-2 Structure of the Rexroth Inline Terminals IndraControl L40
DOK-CONTRL-IC*L40*****-PR03-EN-P
9.3 Connectors
The connection of the peripheral equipment or the supply voltages is
provided in the form of a connector, that can be disconnected from the
electronic socket.
This pluggable connection has the following advantages:
• Easy replacement of electronic module parts for servicing. The wiring
does not have to be removed.
• For different requirements, different connectors can be fitted on an
electronic socket.
Irrespective of the width of the electronic socket, the connectors have a
width of two terminal points. Accordingly, you must fit 1 connector on a 2-
slot socket, 2 connectors on a 4-slot socket and 4 connectors on a 8-slot
socket.
The following connector types are available:
1 2 3
Steckervarianten.FH9

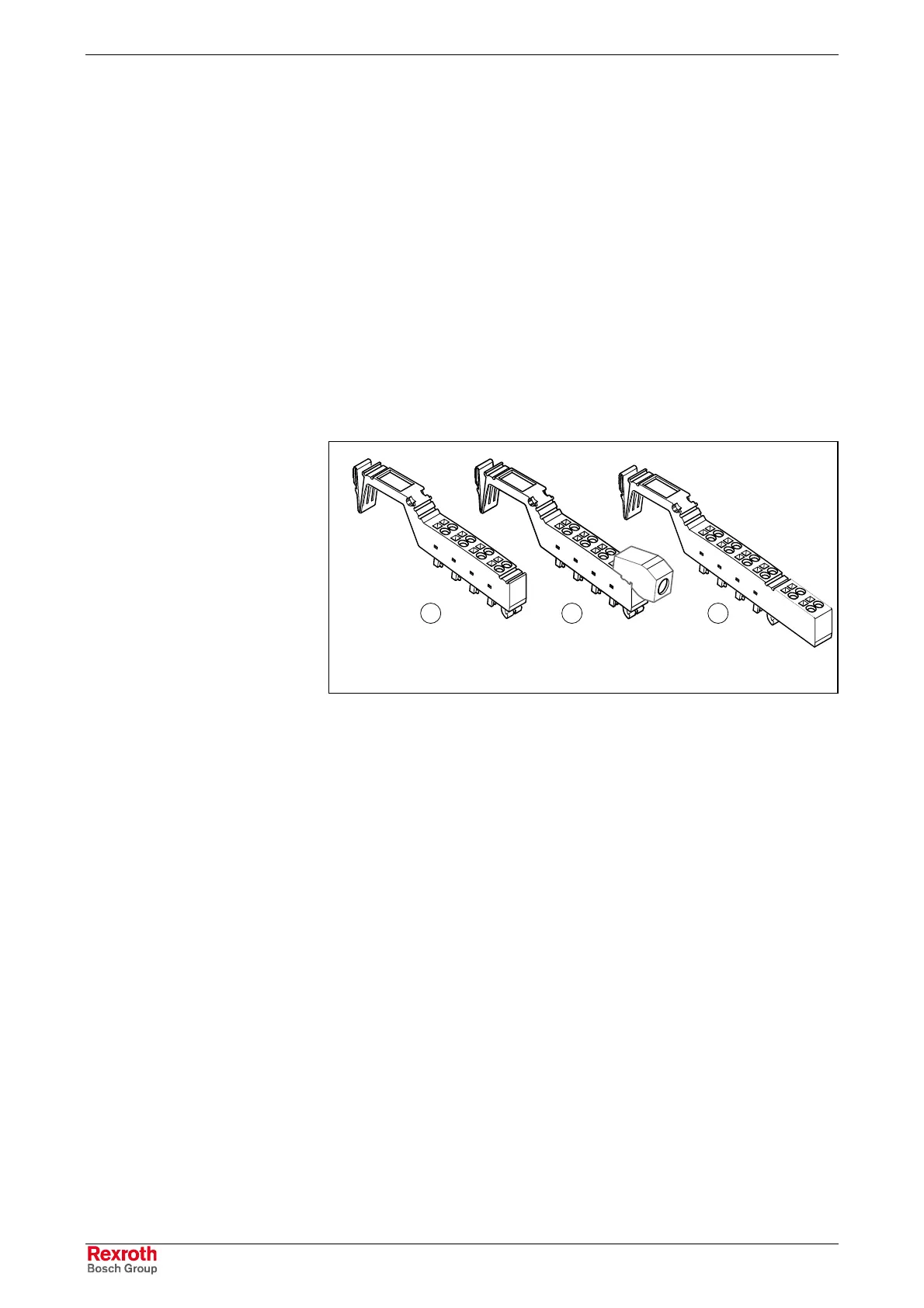

Fig. 9-2: Rexroth Inline connector types
All connectors are available with colored print. If connectors are provided
with colored print, the terminal points are color-coded according to their
functions.
The signals of the terminal points are coded by the following colors:
1 Standard connector
The gray standard connector is used for connecting two
signals as 4-wire connection (e. g. digital input/output signals).
The black standard connector is used for supply terminals. Its
neighboring contacts are internally jumpered (see B1 in
Fig. 9-4). Connector B2 (FE jumpered only) must be used for
the supply terminal of the IndraControl L40.
2 Shield connector
This gray connector is used for signals connected via shielded
lines (e. g. analog input/output signals). The FE and/or
shielding connection is not provided through terminal points,
but through a shield clip.
Advantages
Connector Width
Connector Types
Connector Identification
