7 Connections and Interfaces
7.1 Overview of Connections on the Front
Des. on the
housing
Type of connection Type of connector (integrated) Mating connector or cable (from
outside)
X3C Serial RS232 interface D-Sub male connector, 9-pin D-Sub female connector, 9-pin
X7E Network connection:
Ethernet 10Base T / 100Base X
RJ45 female connector, 8-pin RJ45 male connector (8-core twisted
pair)
X7P DP: PROFIBUS DP slave D-Sub female connector, 9-pin D-Sub male bus connector IP20, 9-pin
X7S2 SERCOS TX Female optical fiber connector Male FSMA FO connector
X7S1 SERCOS RX Female FO connector Male FSMA FO connector
X2R Ready contact 3-pin male connector strip, 3.5 mm 3-pin female connector strip, spring force,
3.5 mm (included in scope of delivery)
PWR IN
voltage supply
Eight digital
outputs
Eight digital
inputs
Slot for
compact flash card
1
2
3
45
Anschluesse.FH9

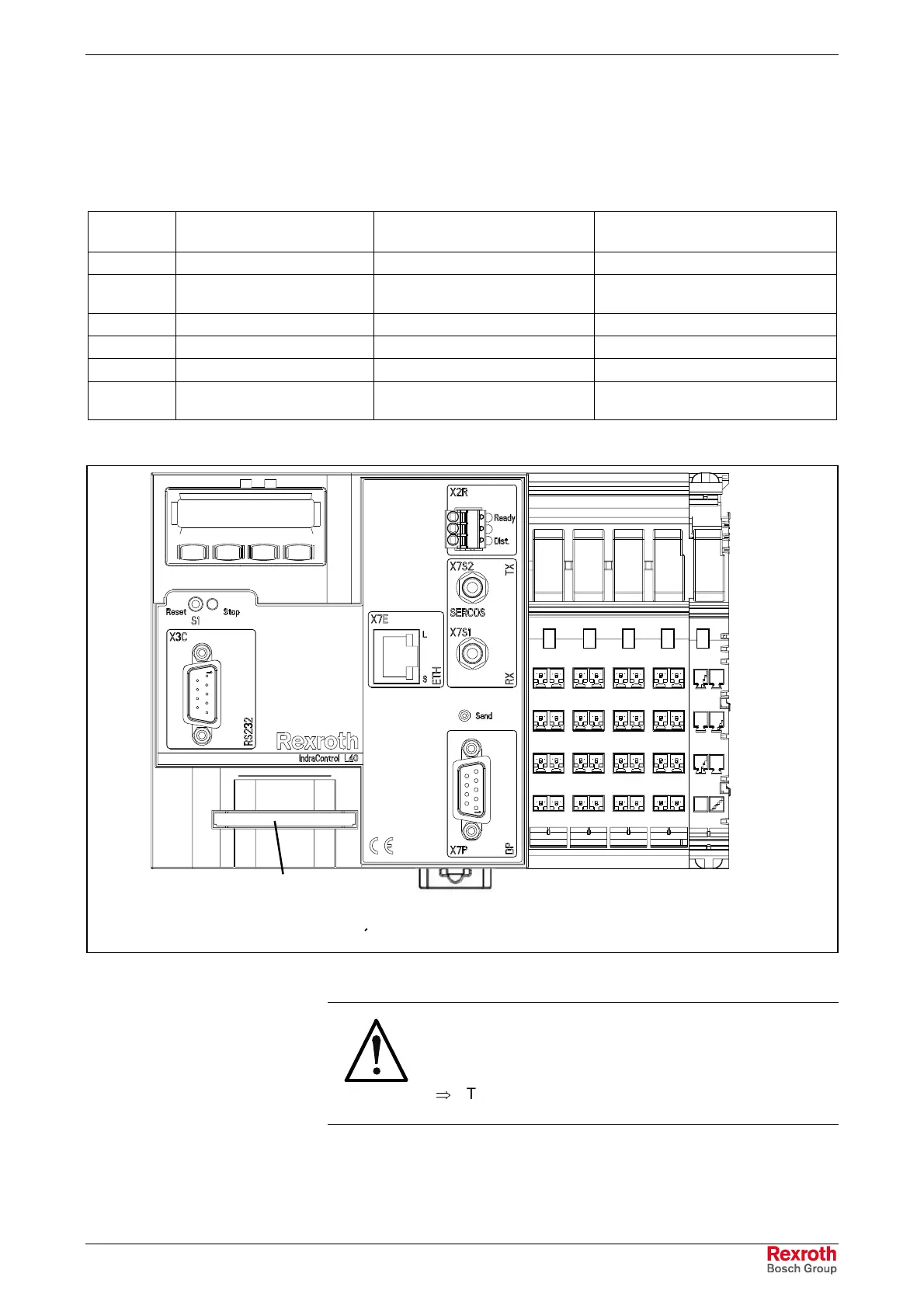

Fig. 7-1: IndraControl L40 connections
CAUTION
Fitting or removing connectors with the
IndraControl L40 being live may damage the
unit or an additional module!
⇒
Turn off the supply voltage before establishing or
breaking any connections!
