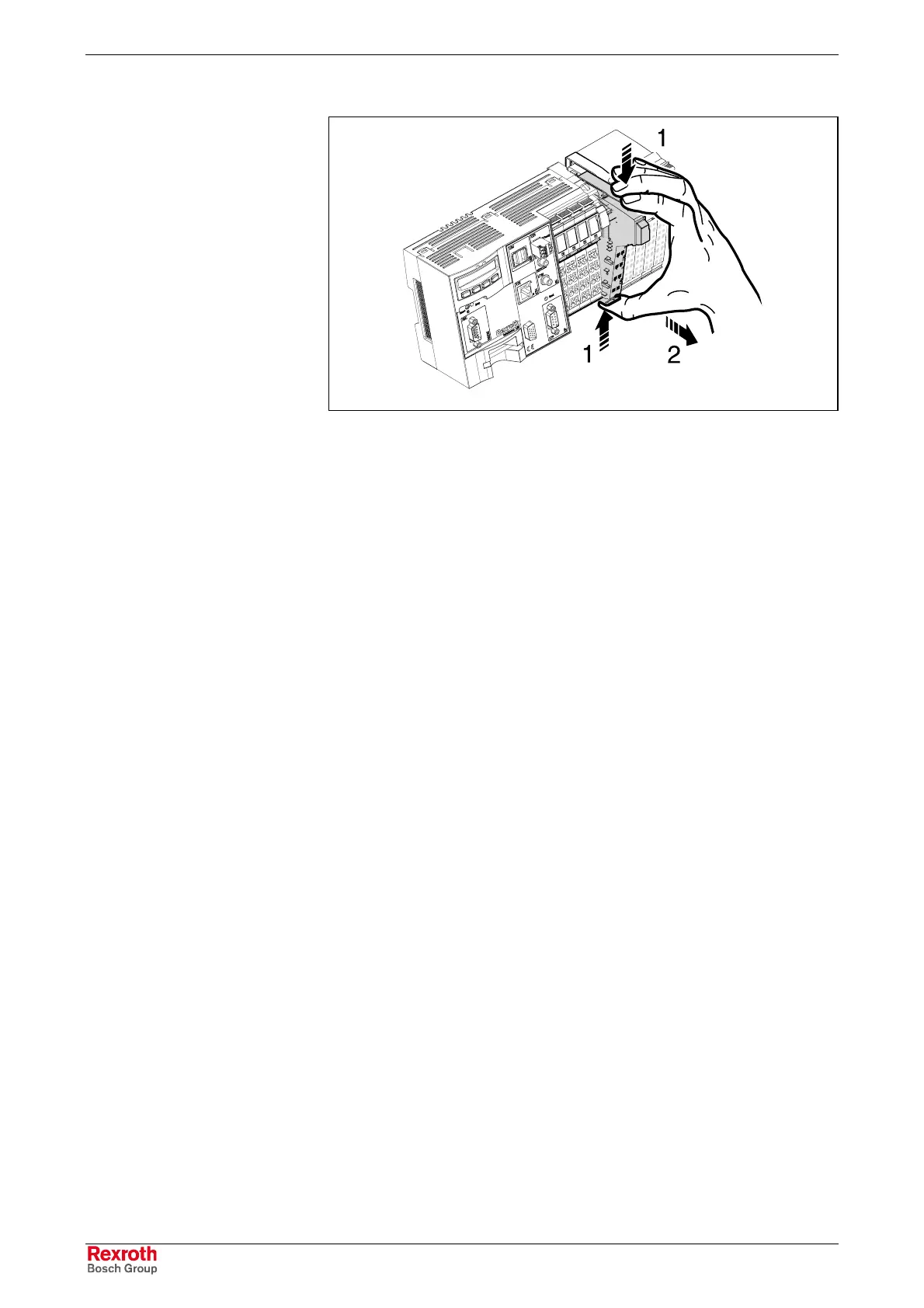

Fig. 8-3: Before dismounting the IndraControl L40, the first Rexroth Inline
module must be removed.
You can now remove the IndraControl L40 from the top-hat rail by
loosening the fixing claw on the bottom side by means of a tool
(screwdriver) and pulling the IndraControl L40 off the top-hat rail from
below, tilting it and removing it upwards.
Removing the IndraControl L40
from the Top-Hat Rail
