Proceed as follows to replace the fuse (also see the illustrations in
Fig. 8-6):
• Swing up the fuse lever (Fig. A).
• Put a screwdriver behind a metal contact of the fuse (Fig. B).
• Carefully pry out the metal contact of the fuse (Fig. C).
• Remove the fuse by hand (Fig. D).
• Latch in the new fuse (Fig. E).
• Press the fuse lever down again until it clicks into place (Fig. F).
AB
C
D
EF
Sicherungswechsel.FH9

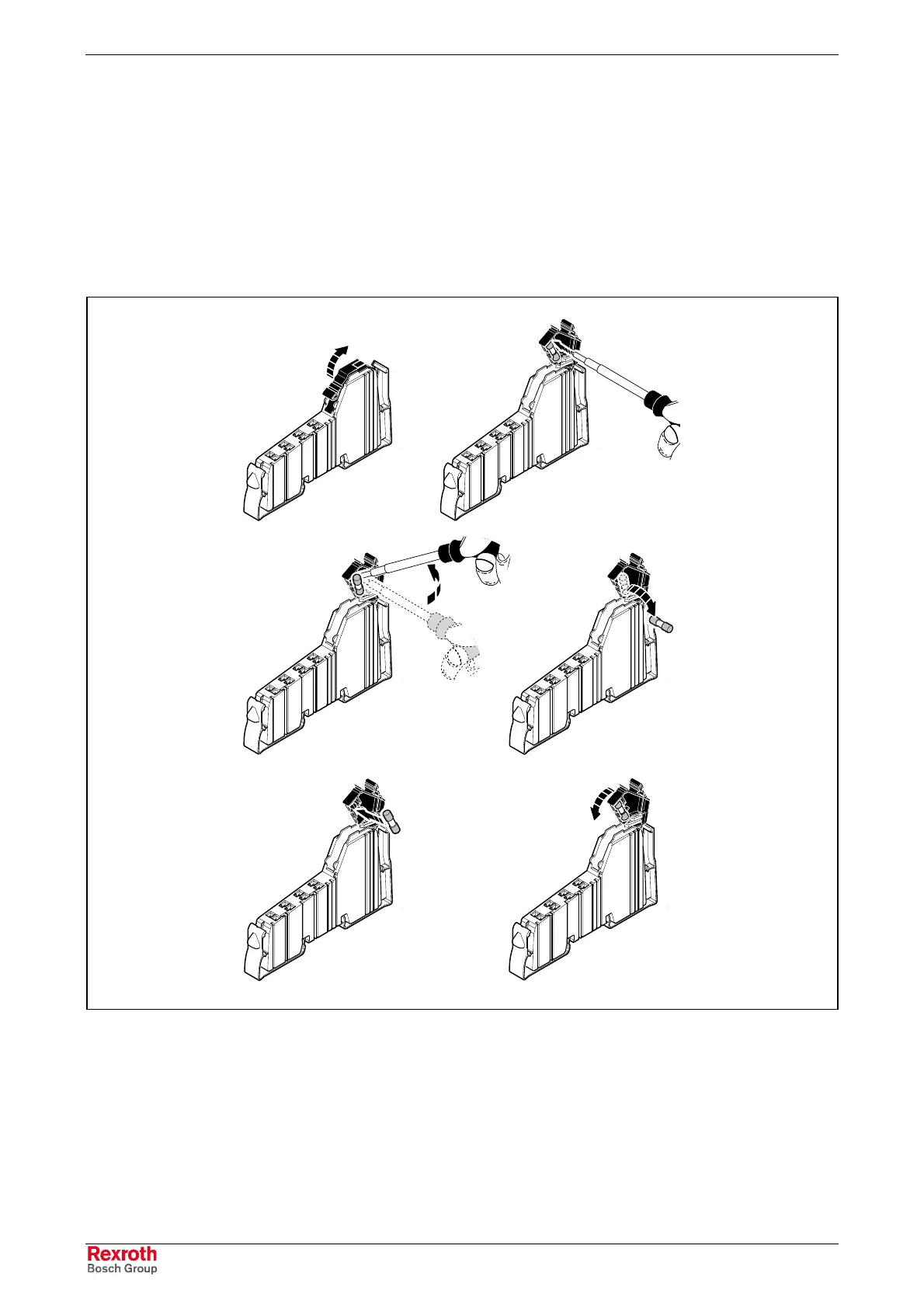

Fig. 8-6: Fuse replacement
