Ricoh M126 - Kickstand Removal

Imaging Component Removals
SM 4-83 M126/M127/M128
Replacement
and
Adjustment
4.3.6 KICKSTAND REMOVAL

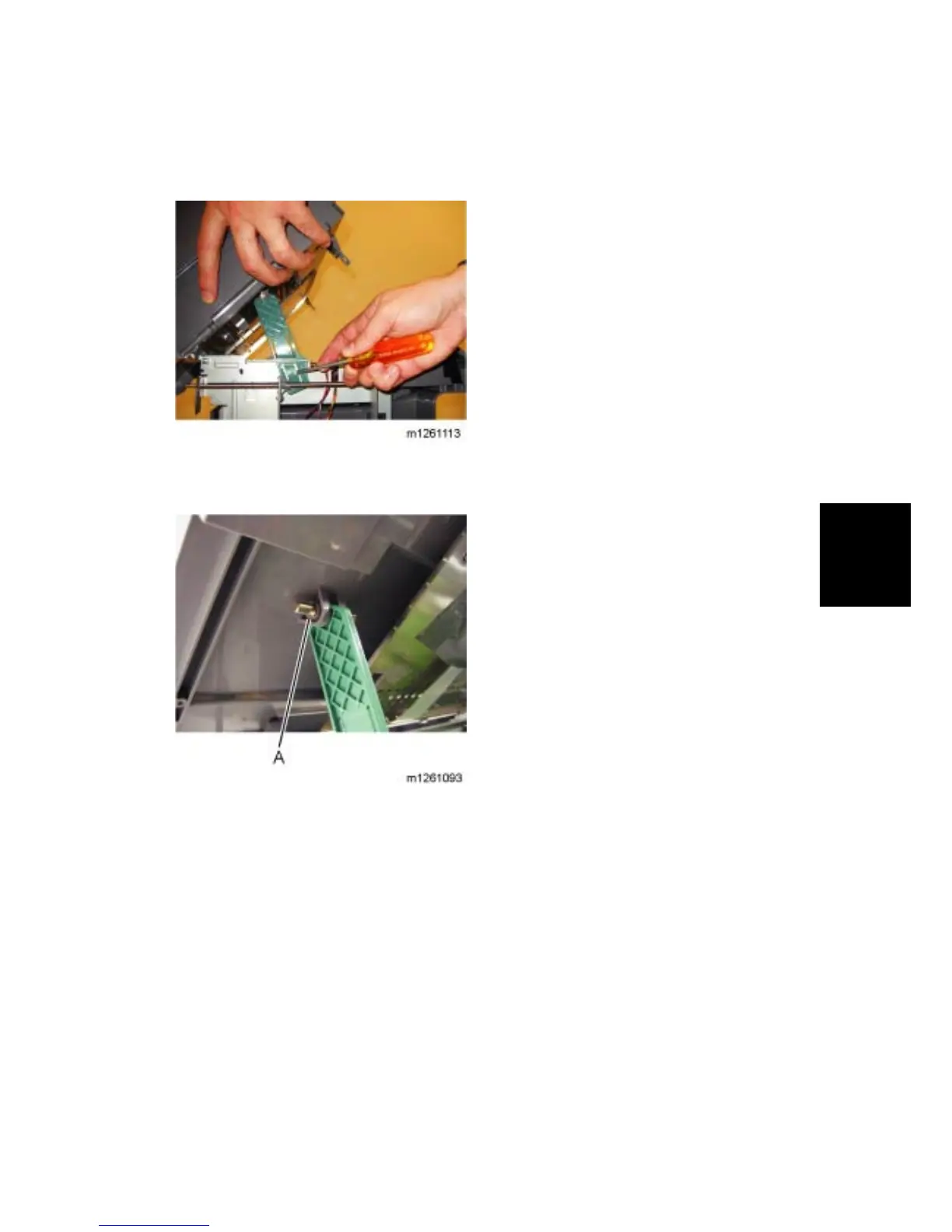

1. Lift the flatbed assembly to the up position.
2. Release the kickstand from the left rear frame assembly by depressing the tab holding the
kickstand in place.
3. Remove the e-clip (A) securing the kickstand rod to the flatbed.
4. Slide the rod out and remove the kickstand from the flatbed.
