Ricoh M126 - Installing an Internal Solutions Port (Isp)

Option Board Installation and Removal
SM 4-89 M126/M127/M128
Replacement
and
Adjustment

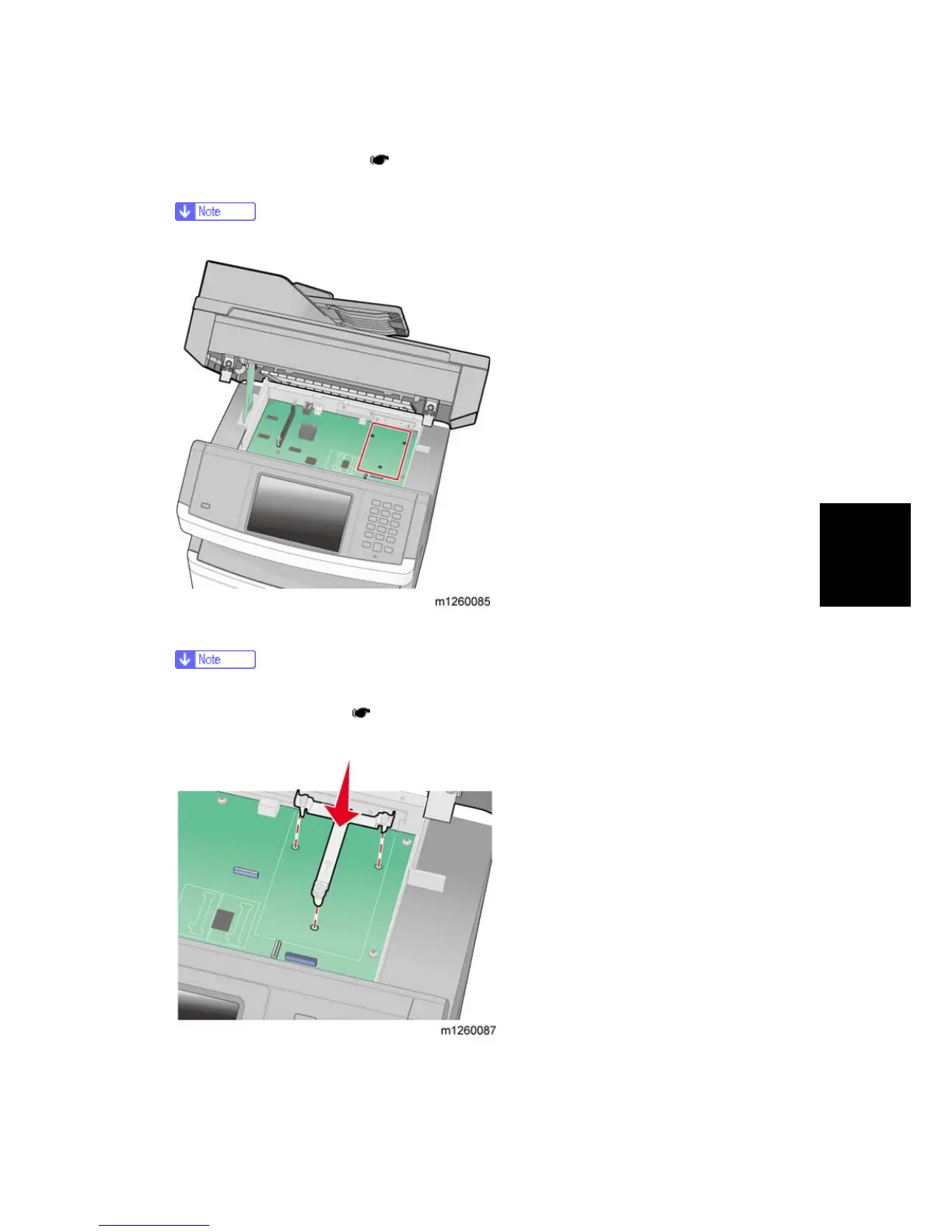

4.4.2 INSTALLING AN INTERNAL SOLUTIONS PORT (ISP)
1. Access the controller board ( p.4-87 "Lifting the Scanner to the Up Position").
2. Unpack the ISP and mounting tee.
 Avoid touching components on the card.
3. Locate the standoff location on the controller board.
 If an optional printer hard disk is currently installed, then the printer hard disk must
first be removed (
p.4-91 "Printer Hard Disk Removal").
4. Take off the metal cover from the ISP opening in the rear of the controller board cage.
5. Align the posts of the mounting tee, and press down to secure it to the controller board.
