6.6.2 UNDERSTANDING JAM NUMBERS AND LOCATIONS

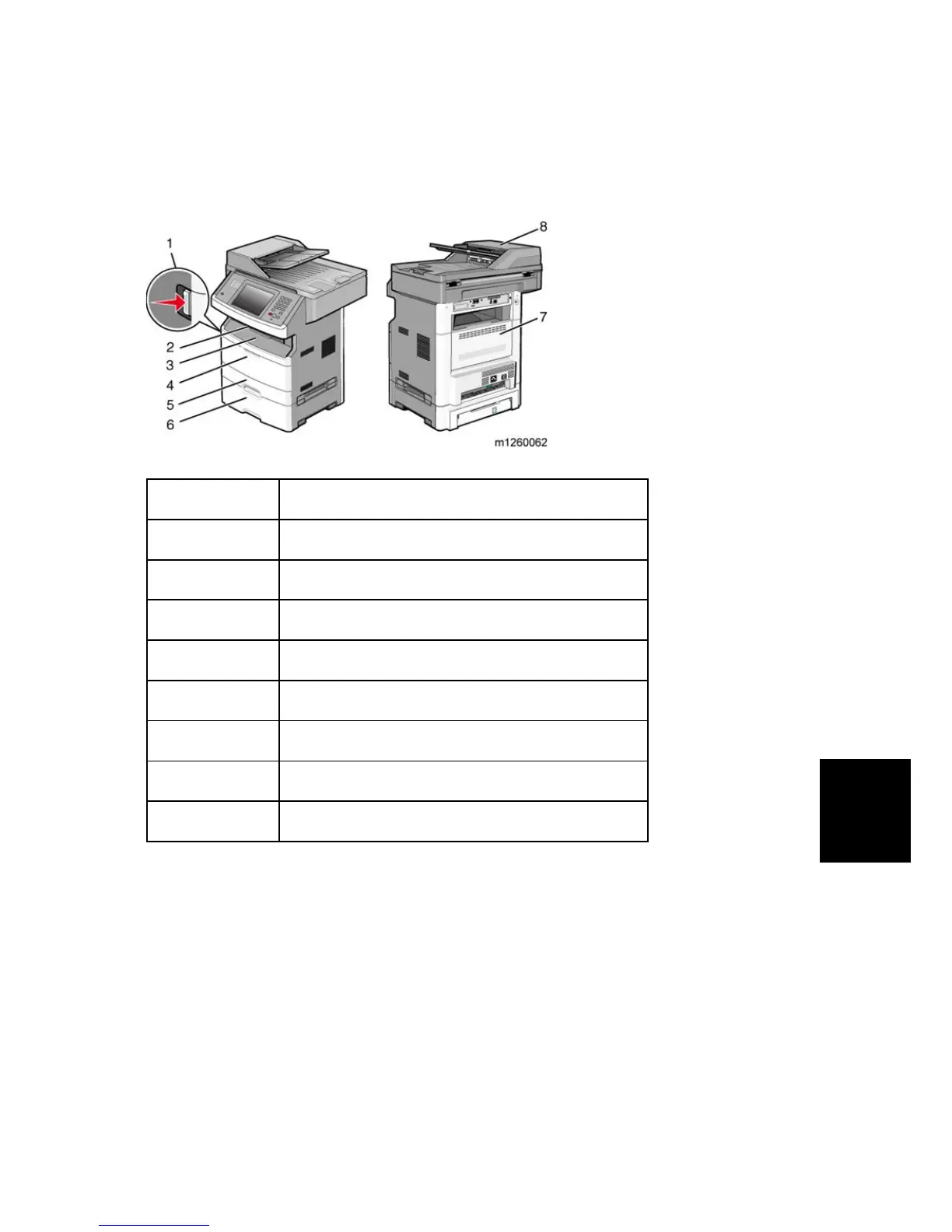

The following illustration shows the areas of the machine where jams occur. When paper jams
occur, follow the instructions in this section.
Jam Area No. Description
1 Opened front door
2 Paper output bin
3 Front door
4 Multi purpose feeder
5 Tray 1
6 Tray 2
7 Rear door
8 Automatic document feeder (ADF)
