Ricoh Pro C5200s User Manual

Procedure for entering the path to the destination manually (classic)

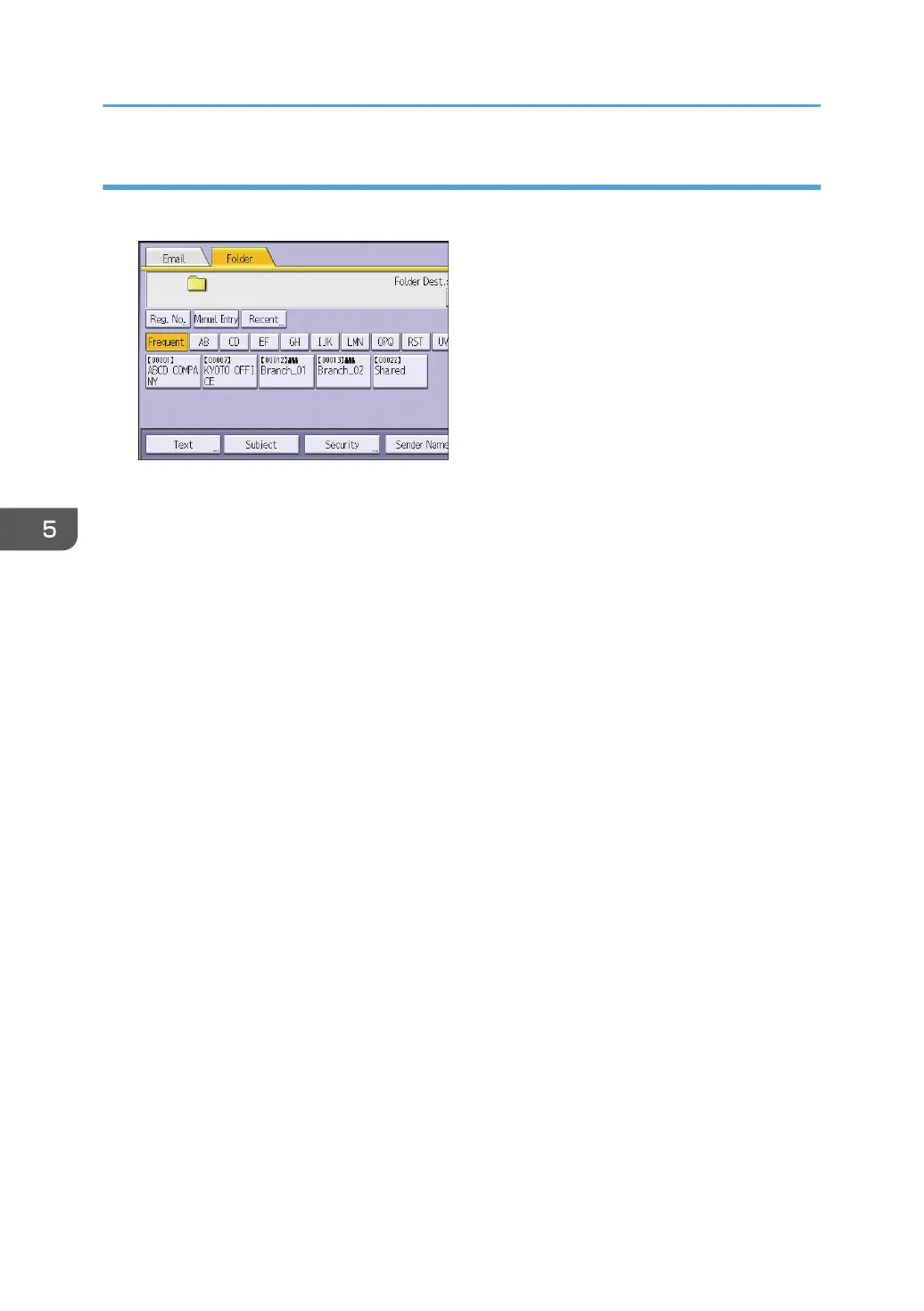

1. Press [Manual Entry].
2.
Make sure that [SMB] is selected.
3. Press [Manual Entry] on the right side of the path field.
4. Enter the path for the folder.
In the following example path, the shared folder name is "user" and the computer name is
"desk01":
\\desk01\user
5. Press [OK].
6. Depending on the destination setting, enter the user name for logging in to the computer.
Press [Manual Entry] to the right of the user name field to display the soft keyboard.
7. Press [OK].
8. Depending on the destination setting, enter the password for logging in to the computer.
Press [Manual Entry] for the password to display the soft keyboard.
9. Press [OK].
10. Press [Connection Test].
A connection test is performed to check whether the specified shared folder exists.
If the message "Connection with PC has failed. Check the settings." appears, see "Troubleshooting
When You Use the Scanner Function", Troubleshooting.
11. Check the connection test result, and then press [Exit].
12. Press [OK].
5. Scan
142

Ricoh Pro C5200s Specifications

General

Print Technology	Laser
Max Paper Size	330.2 x 487.7 mm
Monthly Duty Cycle	300, 000 pages
Print Speed	65 ppm
Resolution	1200 x 4800 dpi
Paper Input Capacity	8, 250 sheets
Paper Weight	52 to 360 gsm
Duplex Printing	Standard
Network Connectivity	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Media Sizes	A3, A4, A5, B4, B5
Supported Media Types	Plain, Recycled, Coated, Envelope
Warm-up Time	Less than 5 minutes
