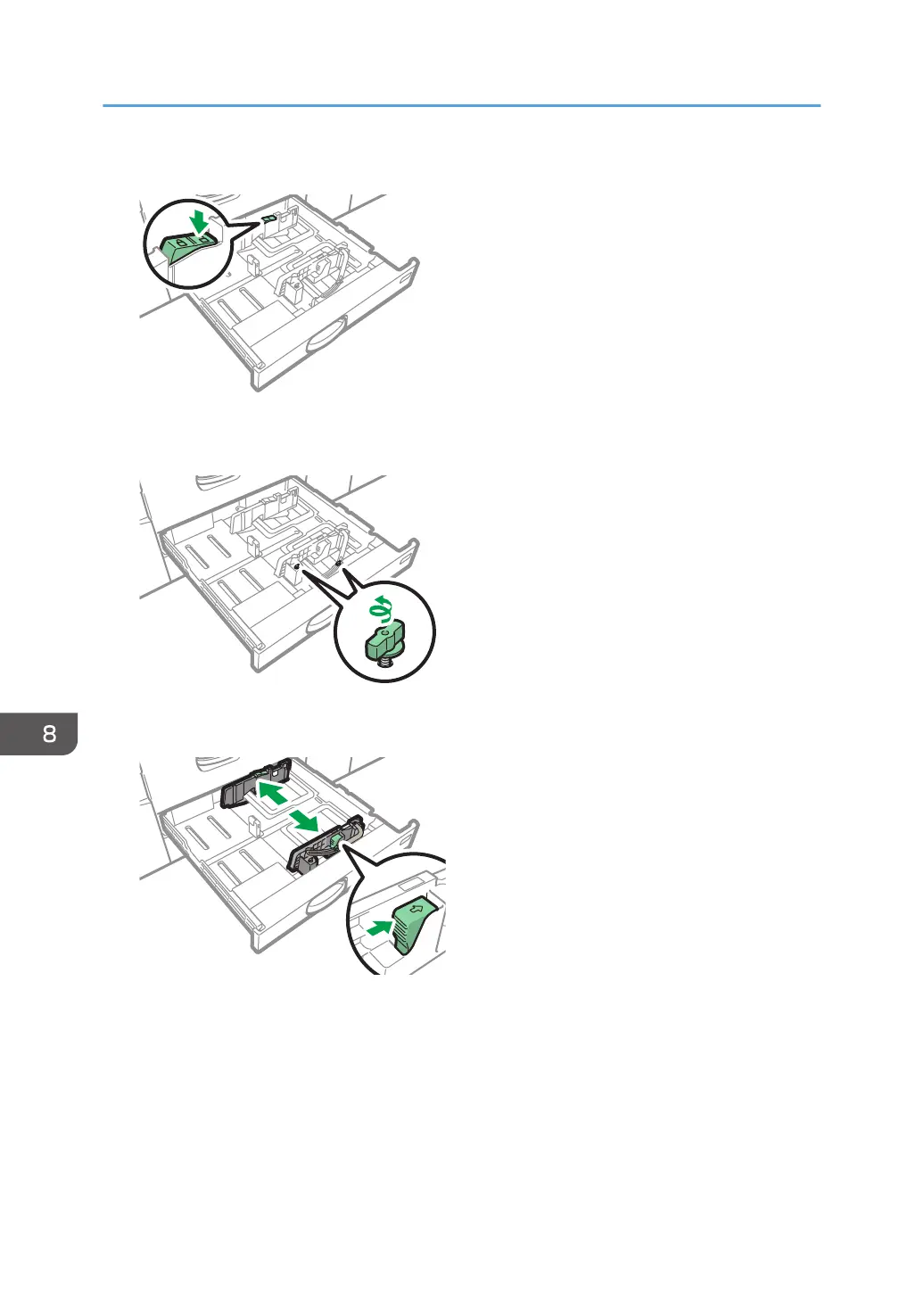

3. Release the lock on the side fence.

D0CPIC1316

4. Loosen the screws holding the side fences in position.

D0CPIC1370

5. While pressing down the release lever of the side fence, slide the side fences outward.

D0CPIC1319

8. Paper Specifications and Adding Paper

204
