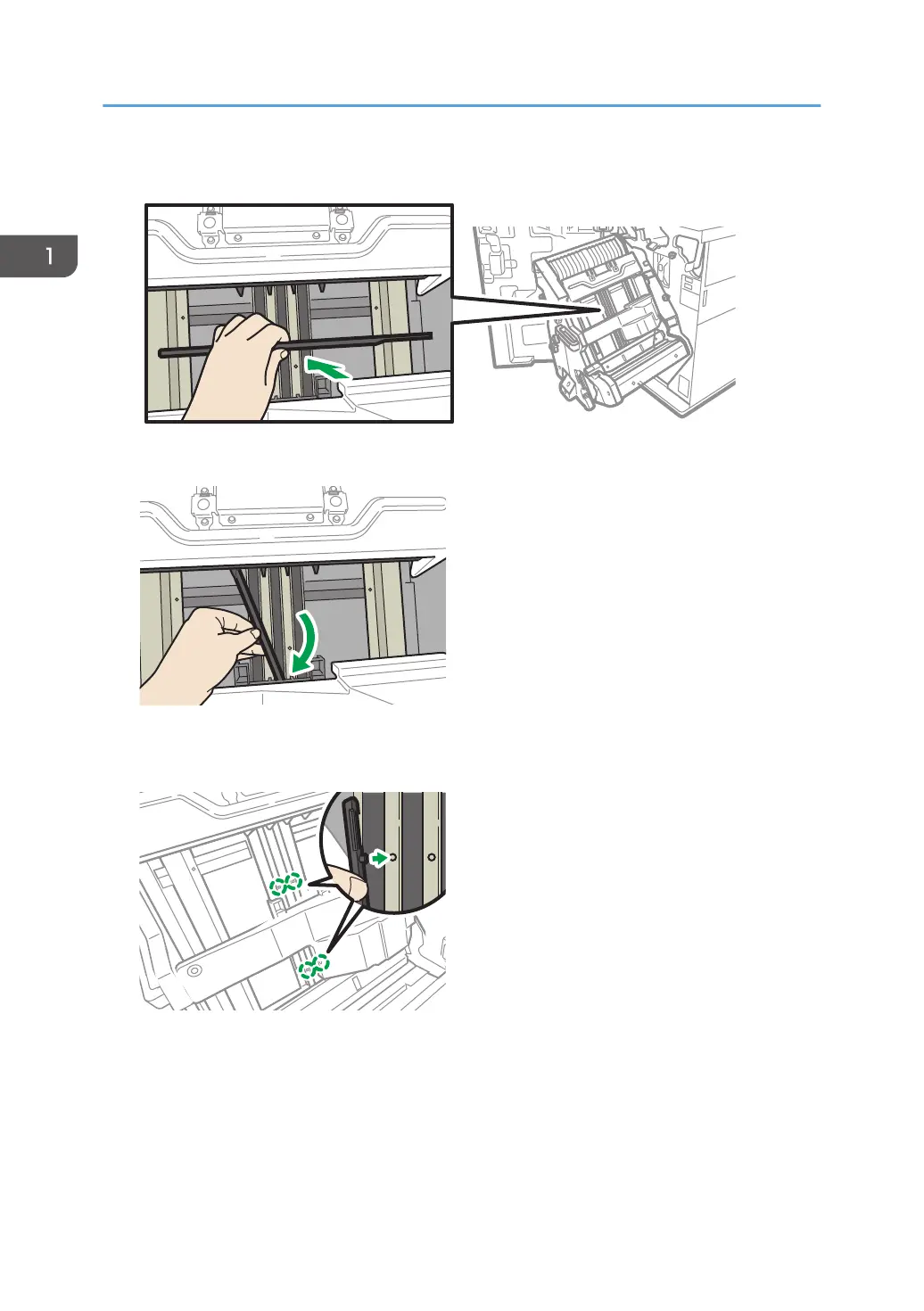

3. Holding the paper strengthening rib horizontally, insert it into the area as shown.

D0CPIC1776

4. Rotate the paper strengthening rib to a vertical orientation.

D0CPIC1777

5. Insert the protrusions (2 parts) of the paper strengthening rib into the holes in the staple

tray.

D0CPIC1778

Attach the paper strengthening rib with its cutout facing out.
