6. Attach the paper feed unit.

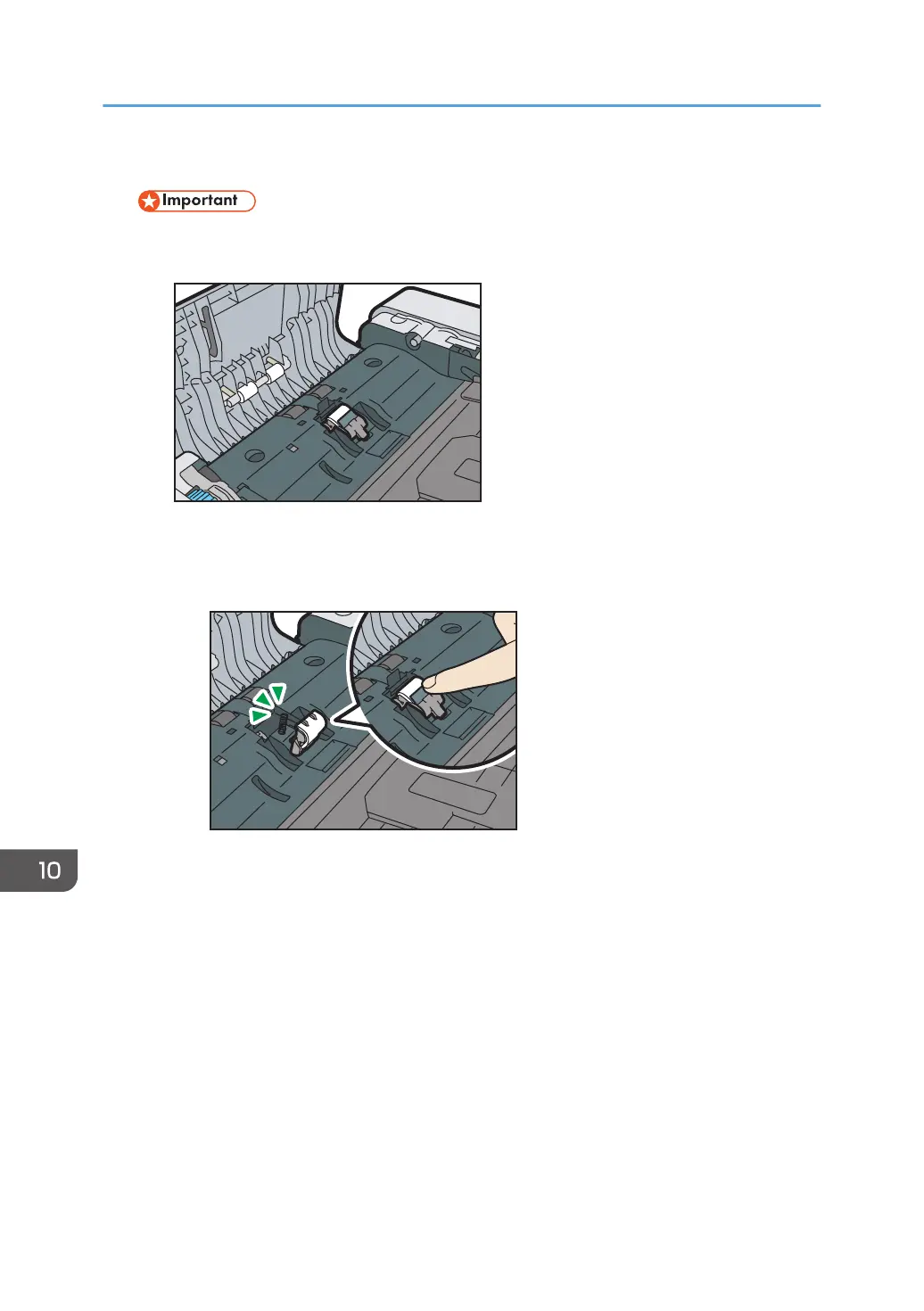

• When attaching the paper feed unit to the machine, check that the friction pad is fixed in the
correct position as indicated in the illustration.
DUP878
• If the friction pad is fixed improperly as shown in the illustration below, press on the
black part of the friction pad with your fingers until you hear a clicking sound to lock the
pad in position, and then attach the paper feed unit.
DUP879
1. While holding the blue part of the paper feed unit, insert the shaft on the near side of the unit
into the bearing of the ADF.
2. Slide the paper feed unit toward the front side of the machine, and then insert the shaft on the
far side of the unit into the bearing on the ADF.
