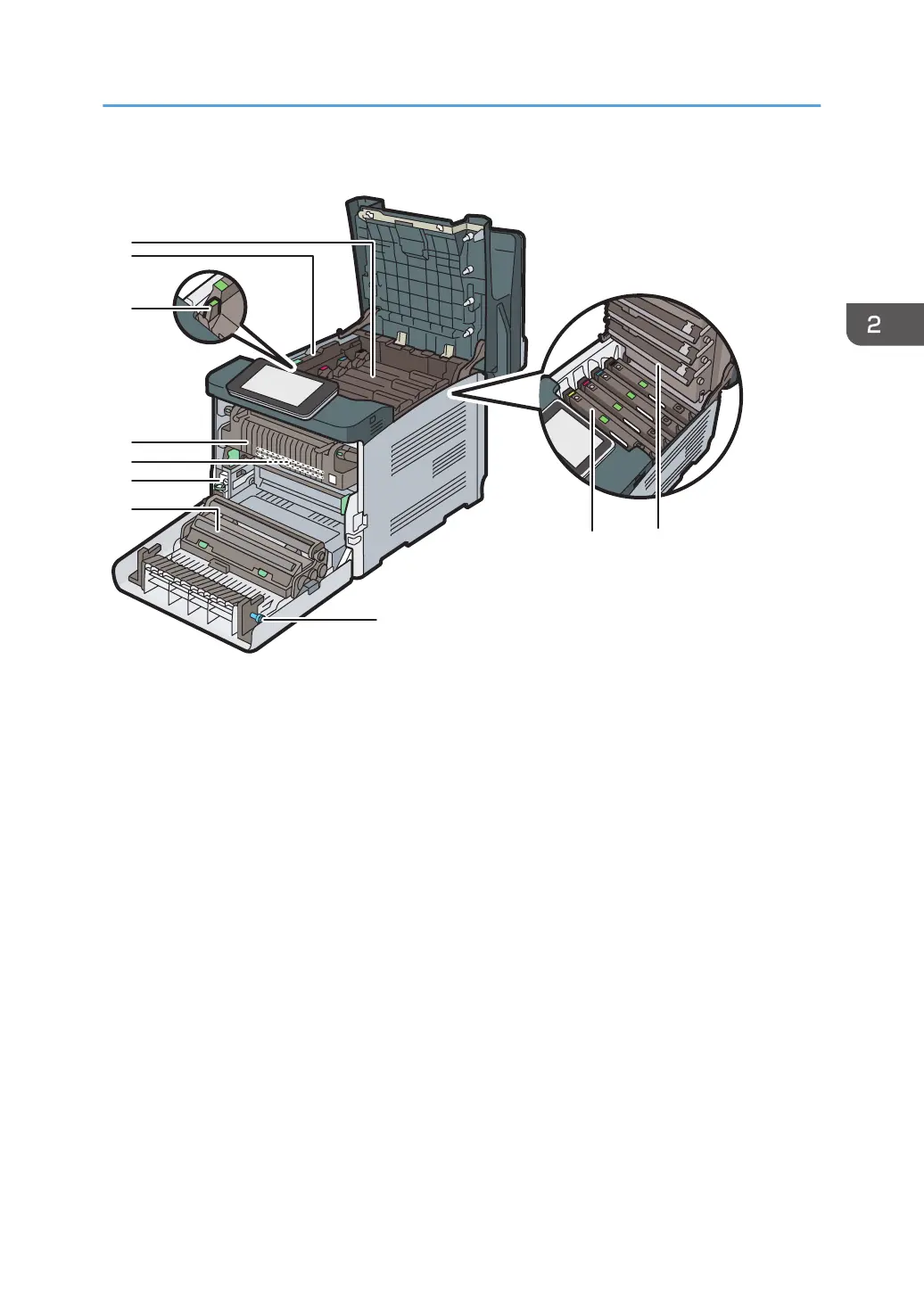

Interior: Front view
DUP834
1
3
2
4
5
6
7
98
10
1. Toner
Loads from the machine rear, in the order of black (K), cyan (C), magenta (M), and yellow (Y).
Messages appear on the screen when the toner cartridge needs to be replaced, or a new cartridge needs to
be prepared. For details about the messages that appear on the screen when consumables need to be
replaced, see "Replenishing and Replacing Consumables", Maintenance and Specifications.
2. Inner cover
Open this cover when replacing the black drum unit/color drum units.
3. Inner cover open lever
Pull this lever to open the inner cover.
4. Fusing unit
Messages appear on the screen when the fusing unit needs to be replaced, or a new fusing unit needs to be
prepared. For details about the messages that appear on the screen when consumables need to be replaced,
see "Replenishing and Replacing Consumables", Maintenance and Specifications.
5. Intermediate transfer unit
Messages appear on the screen when the intermediate transfer unit needs to be replaced, or a new
intermediate transfer unit needs to be prepared.
For details about the messages that appear on the screen when consumables need to be replaced, see
"Replenishing and Replacing Consumables", Maintenance and Specifications.
