Rockwell Automation Allen-Bradley PanelView 5310 User Manual

92 Rockwell Automation Publication 2713P-UM001G-EN-P - May 2022
Chapter 5

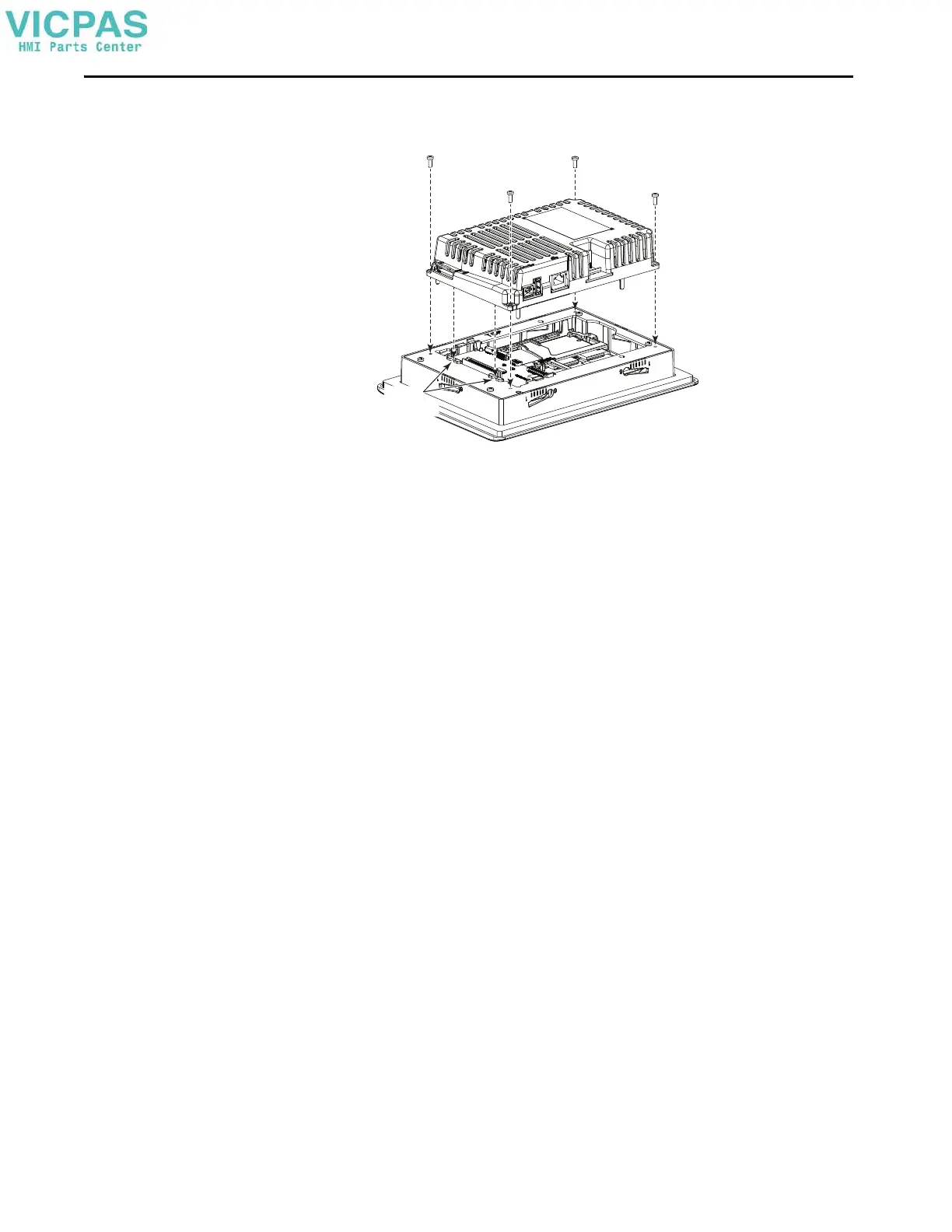

7. Reattach the logic module by aligning the connector on the bottom of the
logic module with the connector on the display module.
8. Push down on the logic module and make sure that it is fully seated.
9. Torque the screws to 0.68…0.90 N•m (6…8 lb•in).
Module
Connectors
Logic Module
Display Module
