Rockwell Automation SMC Dialog Plus

7-24
Options

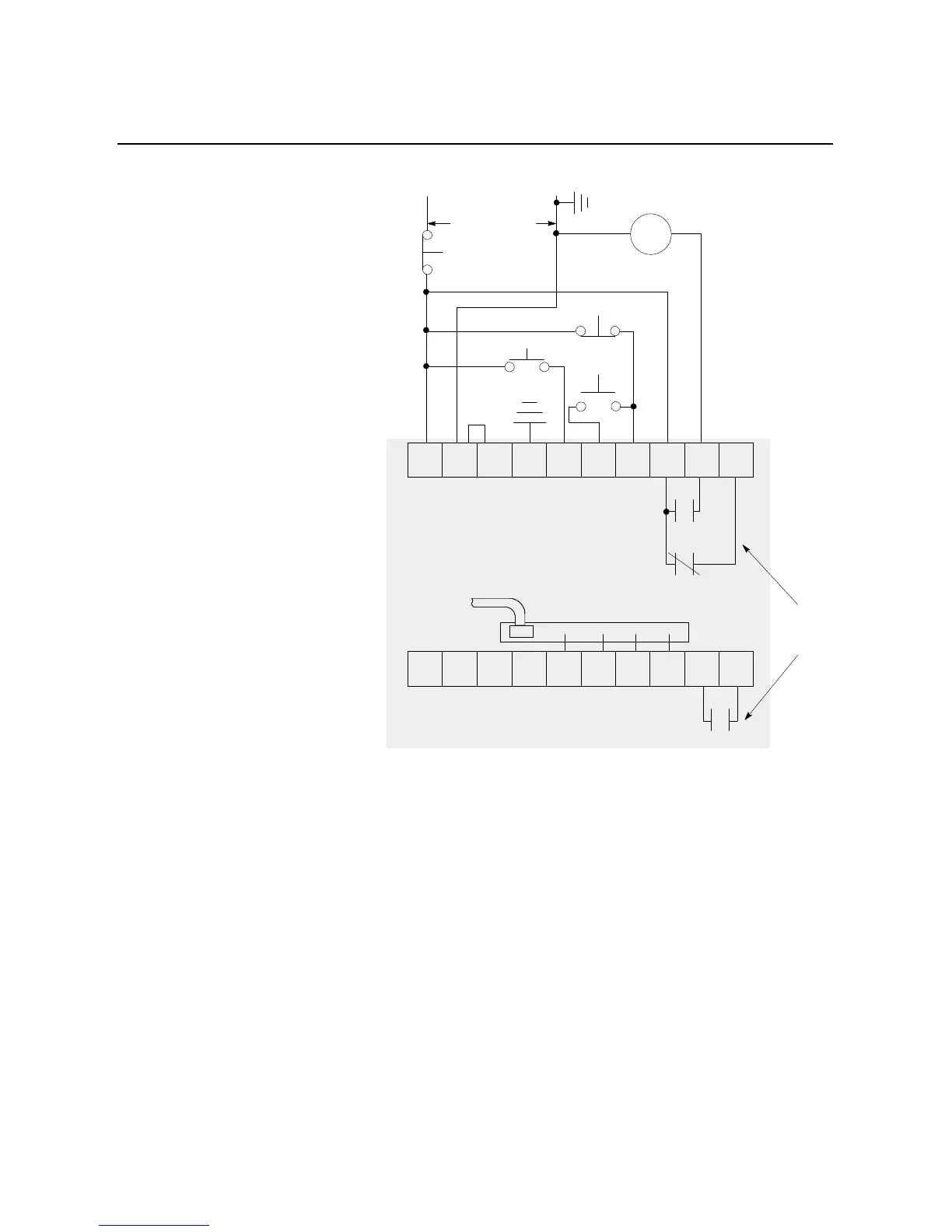

Figure 7.20 Typical Wiring Diagram for the Slow Speed with Braking Option
with a Bypass Contactor
①
Customer supplied.
②
Refer to the controller nameplate to verify the rating of the control power input voltage.
Note: Refer to Chapter 3 for typical power circuits.
Brake
➀
Stop
➀
BC
➀
Control Power
➁
Slow Speed
➀
Start
➀
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
Internal
Auxiliary
Contacts
To
Bulletin 825
Converter
Module
Auxiliary contacts set
for Up-to-speed
Fanning Strip
➀
SMC Dialog Plus
Control Terminals
