Rockwell Automation SMC Dialog Plus

Troubleshooting
10-9
500–1000 Amp
Refer to Figure 10.4 for control module removal reference.
1. Disconnect all control wires to control modules.
2. Loosen six control module screws.
3. Unplug control module from interface board by pulling forward.

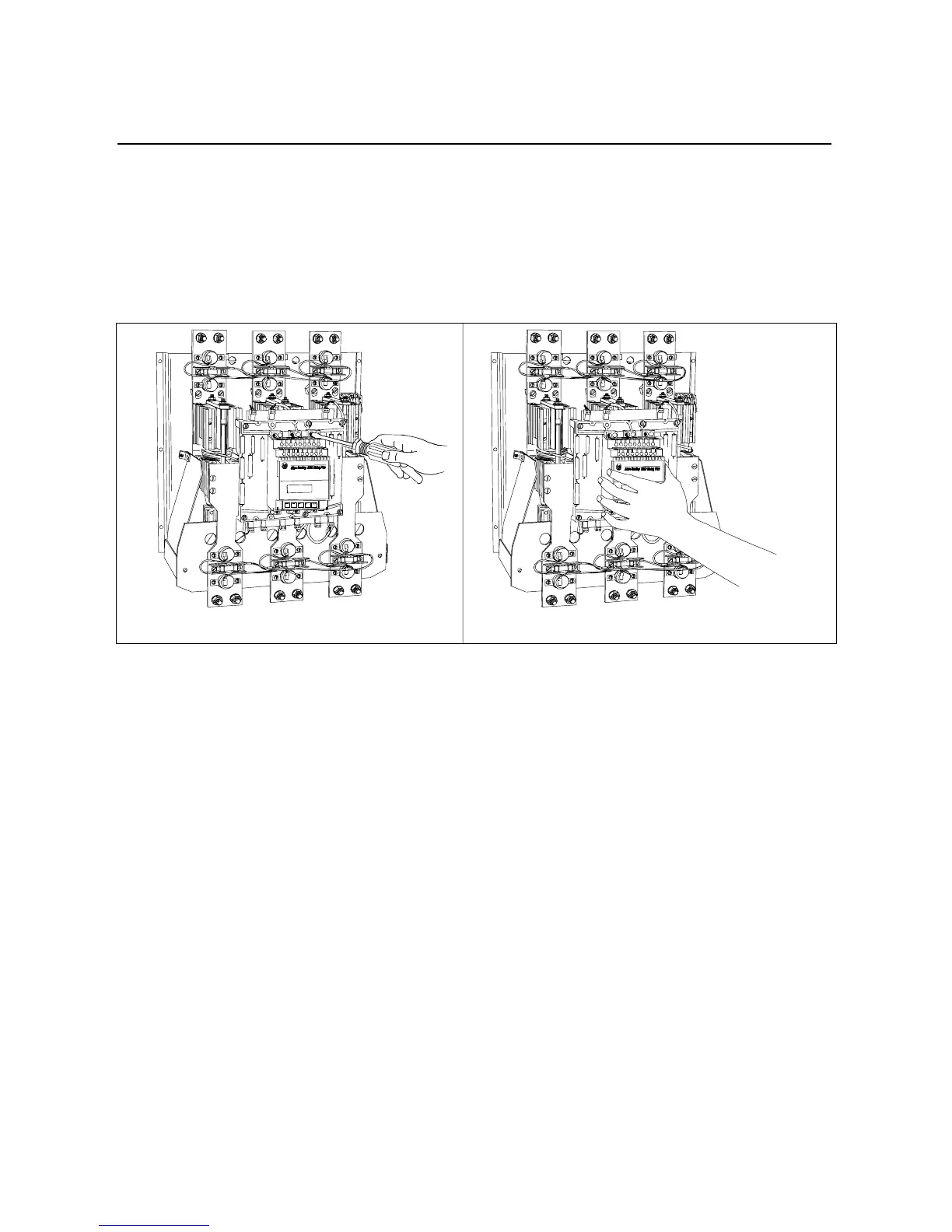

Figure 10.4 Removal of Control Module (500–1000A)
(1) (2)
