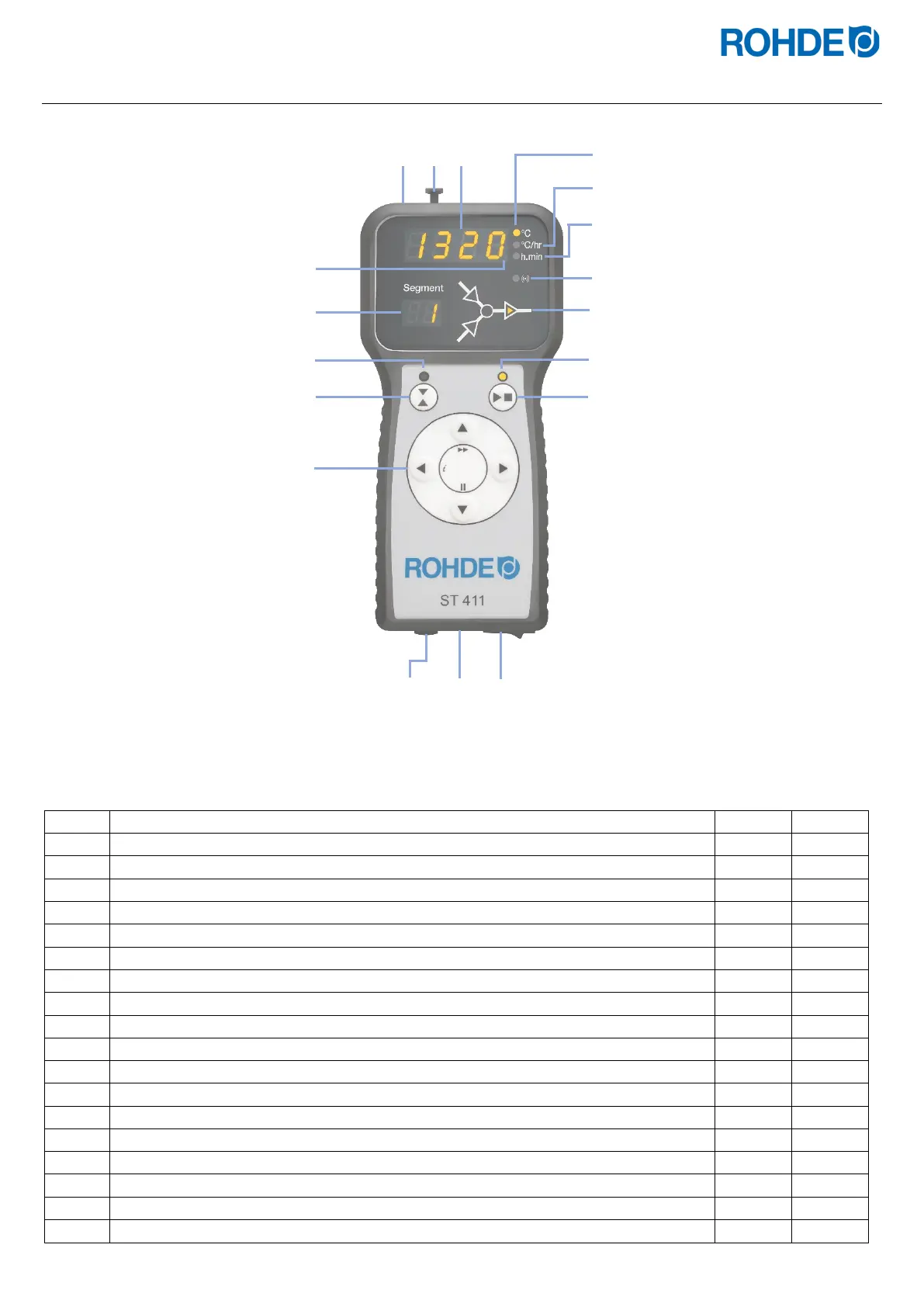

2.3. Control unit overview
No.
Description
ST 410
ST 411
1
USB port
X
X
2
“USB flash drive plugged into USB port” indicator
X
X
3
Main display
X
X
4
“Temperature” indicator
X
X
5
“Ramp rate” indicator
X
X
6
“Time” indicator
X
X
7
“Kiln heating” indicator
X
X
8
“Data transfer” indicator
X
X
9
Segment display
X
X
10
Graphical program operation display
X
X
11
“Program running” indicator
X
X
12
Start/stop key
X
X
13
Switch output (event) indicator
−
X
14
Switch output key (event)
−
X
15
Control keys
X
X
16
Fuse
X
X
17
Cable with CPC 14 connector (connection to the kiln)
X
X
18
Mains switch
X
X
10
11
1
2
4
5
6
7
8
3
9
12
13
14
15
16
17
18
