Rohde ST411 - Example of a Firing Program to Illustrate the Firing Segment

52 / 280

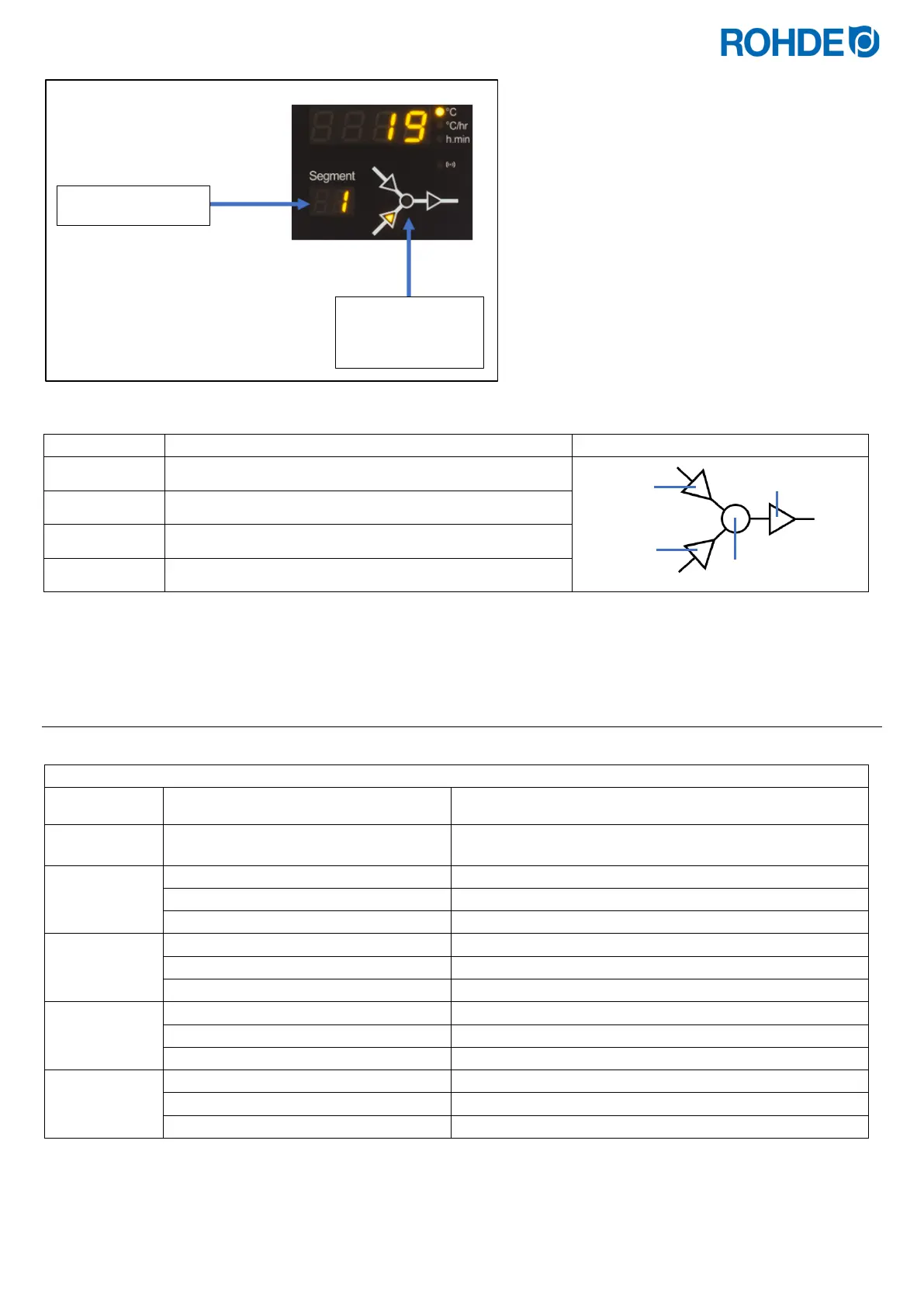

Graphical program operation display:
Value
Meaning
Graphical program operation display
1.1
Heating ramp
1.2
Cooling ramp
2
Soak Temperature (target temperature)
3
Soak time
⇒ There is only either one heating ramp (1.1) or one cooling ramp (1.2) per firing segment - never both!
6.3.2. Example of a firing program to illustrate the firing segment
Example of a simple firing program to illustrate the firing segments and their values:
Firing program
Firing
segment
Firing segment values
Description of the values
0
Program delay or program start delay
(see Section 6.6.3.)
The firing program starts with a delay.
(Factory-set to 00 hours 00 min.)
1
Heating ramp (1.1) Heating at 250°C/h
Target temperature (2) Heating up to 500°C
Soak time (3) Hold for 0 min
2
Heating ramp (1.1) Heating at 0°C/h
Soak temperature (2) Hold at 500°C
Soak time (3) Hold for 40 min
3
Cooling ramp (1.2) Cooling at 40°C/h
Target temperature (2) Cool to 20°C
Soak time (3) Hold for 0 min
4
Cooling ramp (1.2) Setting the value to “END” ends the firing program.
Target temperature (2) -
Soak time (3) -
1.2
1.1
2
3
Segment display
Graphical program
operation display
