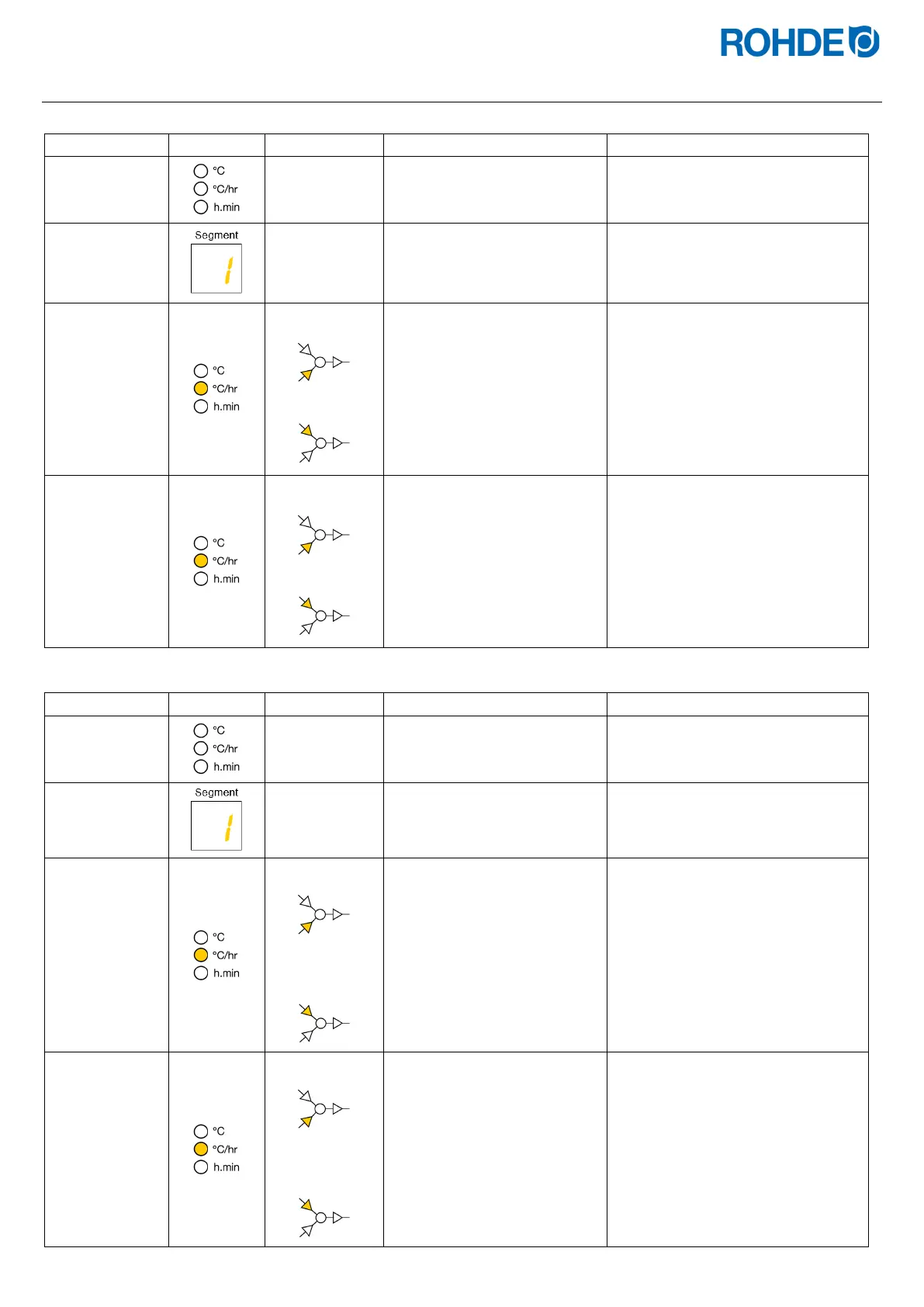

6.4.3. Programming the “FULL” & “END” ramp rates
Programming a “FULL” heating or cooling ramp in the firing program:
Display screen
Icon
Meaning
Description
Remark
Pr. 1
Program
number
Select the firing program that
is to be changed.
See Section 6.4.1.
1
Indicator in the
segment
display
Select the segment with the
heating ramp to be changed
into a cooling ramp.
See Section 6.4.1.
150
Heating ramp
Cooling ramp
The ramp rate for the heating
or cooling ramp is shown in
the main display.
Possible main display:
1°C/h-999°C/h
FULL
Heating ramp
Cooling ramp
Press or hold down the
d key
until “FULL” appears in the
main display.
• “FULL” heats or cools as fast as
possible.
• The “END” value is one step
above the ramp rate “999°C/h”.
Programming the “END” of a heating ramp or cooling ramp in the firing program:
Display screen
Icon
Meaning
Description
Remark
Pr. 1
Program
number
Select the firing program that
is to be changed.
See Section 6.4.1.
1
Indicator in the
segment
display
Select the segment with the
heating ramp to be changed
into a cooling ramp.
See Section 6.4.1.
150
Heating ramp
Cooling ramp
The ramp rate for the heating
or cooling ramp is shown in
the main display.
Possible main display:
1°C/h-999°C/h
END
Heating ramp
Cooling ramp
To mark the end of the
program, push the
f key until
"END" appears in the main
display.
• “END” ends the firing program.
• The firing program ends with the
segment in which “END” has
been programmed.
After “END” has been
programmed, the soak/target
temperature or soak time can no
longer be selected.
• The “END” value is one step
below the ramp rate “1°C/h”.
