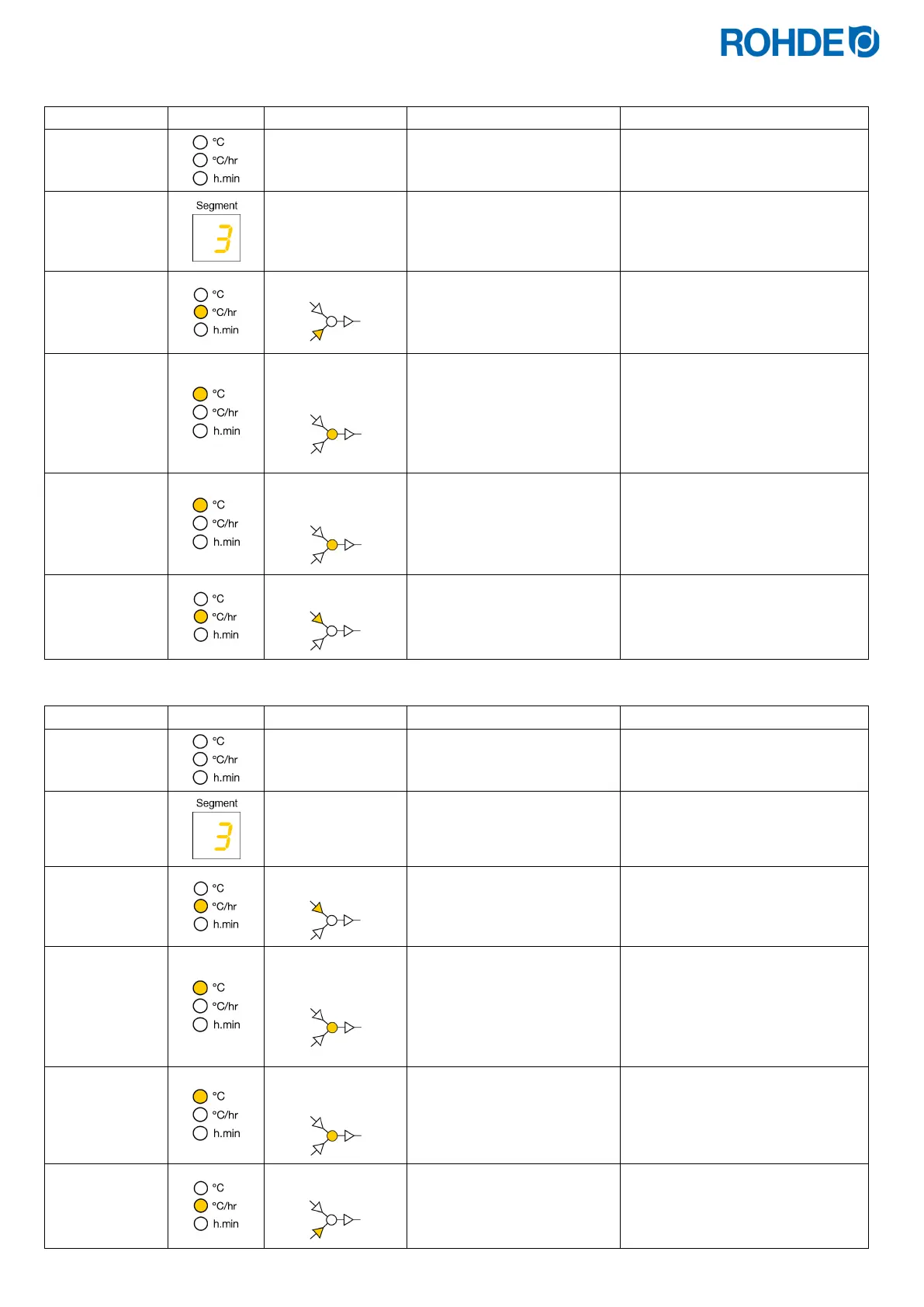

Changing a heating ramp to a cooling ramp:
Display screen
Icon
Meaning
Description
Remark
Pr. 1
Program number
Select the firing program that
is to be changed.
See Section 6.4.1.
3
Indicator in the
segment display
Select the segment with the
heating ramp to be changed
into a cooling ramp.
See Section 6.4.1.
150
Heating ramp
Press the
g key to switch to
the soak or target
temperature.
A heating ramp is set in the
selected segment.
600
Soak/Target
temperature
This can be altered with the
d & f keys.
The temperature in the selected
segment is higher than in the
previous segment.
⇒ Soak/target temperature in
the previous segment (2) =
599°C
598
Soak/Target
temperature
The
f key reduces the
value, and the
h key makes
the display return to the ramp
rate.
150
Cooling ramp
A cooling ramp is now set in
the selected segment.
From here on, the segment can
be fully programmed as a cooling
ramp.
Changing a cooling ramp to a heating ramp:
Display screen
Icon
Meaning
Description
Remark
Pr. 1
Program number
Select the firing program that
is to be changed.
See Section 6.4.1.
3
Indicator in the
segment display
Select the segment with the
cooling ramp to be changed
into a heating ramp.
See Section 6.4.1.
150
Cooling ramp
Press the g key to switch to
the soak or target
temperature.
A cooling ramp is now set in the
selected segment.
599
Soak/Target
temperature
This can be altered with the
d & f keys.
The temperature in the selected
segment is lower than in the
previous segment.
⇒ Soak/target temperature in
the previous segment (2) =
600°C
601
Soak/Target
temperature
The
d key increases the
value, and the
h key makes
the display return to the ramp
rate.
150
Heating ramp
A heating ramp is now set in
the selected segment.
From here on, the segment can
be fully programmed as a heating
ramp.
