Roland SH-4d - M;S Delay (MID-Side Delay)

MFX Parameters
141
Parameter
Value
Explanation
Distortion
0–5
Amount of tape-dependent distortion to be added
This simulates the slight tonal changes that can be detected by signal-analysis
equipment.
Increasing this value will increase the distortion.
Wf Rate
0–127
Speed of wow/flutter (complex variation in pitch caused by tape wear and rotational
irregularity)
Wf Depth
0–127
Depth of wow/flutter
Echo Level
0–127
Volume of the echo sound
Direct Lv
0–127
Volume of the original sound
Level
0–127
Output Level

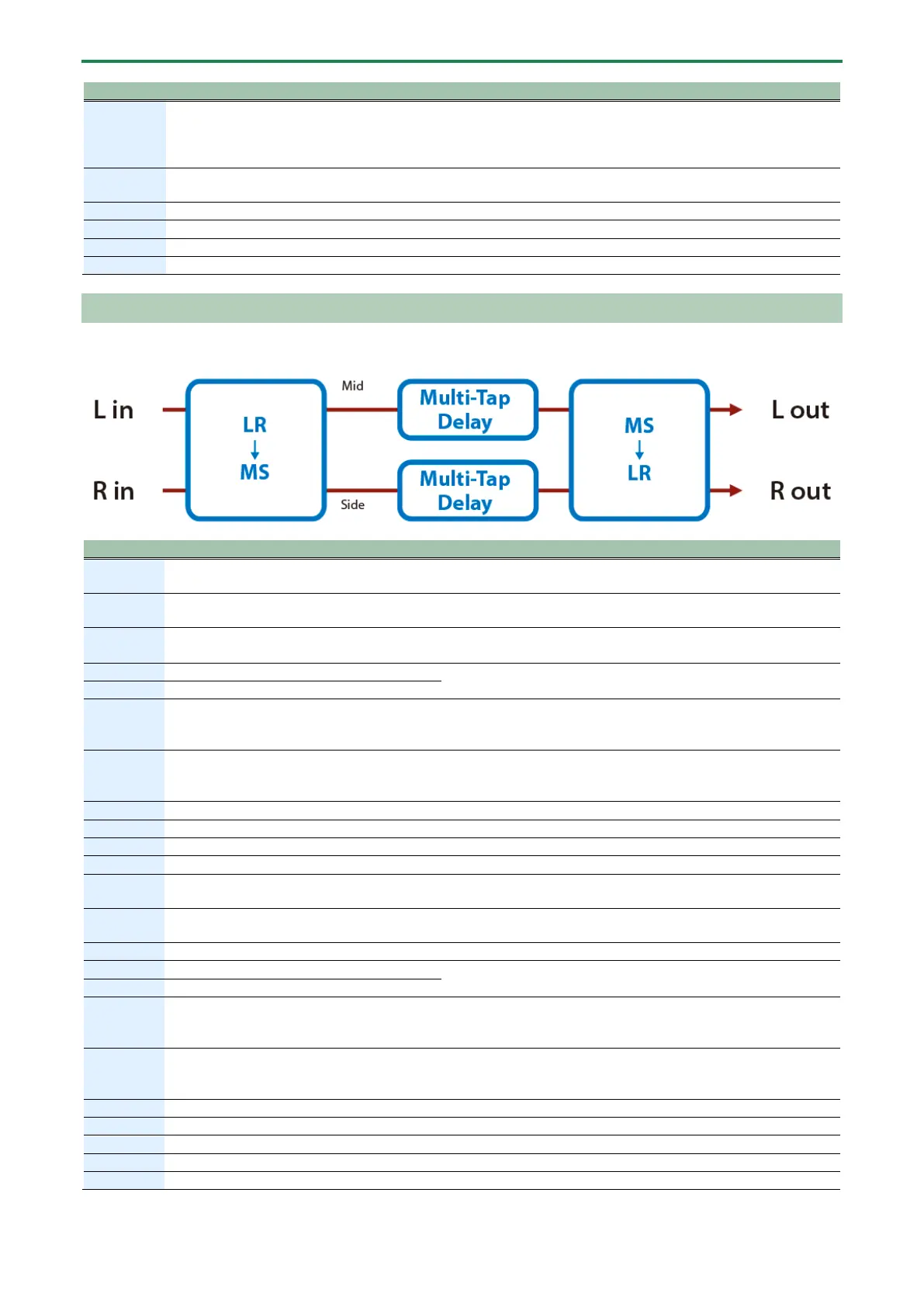

M/S Delay (Mid-Side Delay)
This effect applies different amounts of delay to left/right signals of similar phase and differing phase.
Parameter
Value
Explanation
MD Level
0–127
Delay volume of left/right input signals whose phase is similar (in
phase)
MD Mode
2TAP, 3TAP, 4TAP
Delay divisions for the input signals whose left/right phase is
similar (identical phase)
MD Tm
Sync
OFF, ON
If this is ON, the delay synchronizes with the tempo.
MD. Time
1–1300
Adjusts the time from the original sound until the delay sound is
heard.
MDTime Nt
Note(P.167)
MD
Feedback
-98–+98 [%]
Adjusts the proportion of the delay sound that is fed back into the
effect.
Negative (-) settings will invert the phase.
MD
HFDamp
200, 250, 315, 400, 500, 630, 800, 1000, 1250,
1600, 2000, 2500, 3150, 4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which sound fed back to the effect is
filtered out. If you don’t want to filter out any high frequencies, set
this parameter to BYPASS.
MD1 Pan
L64–63R
Panning of the first delay sound
MD2 Pan
L64–63R
Panning of the second delay sound
MD3 Pan
L64–63R
Panning of the third delay sound
MD4 Pan
L64–63R
Panning of the fourth delay sound
SD Level
0–127
Delay volume of left/right input signals whose phase is distant
(opposite phase)
SD Mode
2TAP, 3TAP, 4TAP
Delay divisions for the input signals whose left/right phase is
distant (reverse phase)
SD Tm Sync
OFF, ON
If this is ON, the delay synchronizes with the tempo.
SD Time
1–1300
Adjusts the time from the original sound until the delay sound is
heard.
SDTime Nt
Note(P.167)
SD
Feedback
-98–+98 [%]
Adjusts the proportion of the delay sound that is fed back into the
effect.
Negative (-) settings will invert the phase.
SD
HFDamp
200, 250, 315, 400, 500, 630, 800, 1000, 1250,
1600, 2000, 2500, 3150, 4000, 5000, 6300,
8000, BYPASS [Hz]
Adjusts the frequency above which sound fed back to the effect is
filtered out. If you don’t want to filter out any high frequencies, set
this parameter to BYPASS.
SD1 Pan
L64–63R
Panning of the first delay sound
SD2 Pan
L64–63R
Panning of the second delay sound
SD3 Pan
L64–63R
Panning of the third delay sound
SD4 Pan
L64–63R
Panning of the fourth delay sound
Level
0–127
Output Level
