Roland SH-4d - MM Filter (Multi-Mode Filter)

MFX Parameters
95
Parameter
Value
Explanation
Gain
0–+12 [dB]
Amount of boost for the filter output
Mod Sw
OFF, ON
On/off switch for cyclic change
Mod Wave
TRI, SQR, SIN, SAW1, SAW2
How the cutoff frequency will be modulated
TRI: Triangle wave
SQR: Square wave
SIN: Sine wave
SAW1: Sawtooth wave (upward)
SAW2: Sawtooth wave (downward)
Rate Sync
OFF, ON
If this is ON, the rate synchronizes with the tempo of the rhythm.
Tempo (Pattern)(P.53)
Tempo (System)(P.77)
Rate
0.05–10.00 [Hz]
Frequency of modulation
Rate Note
Note(P.167)
Depth
0–127
Depth of modulation
Attack
0–127
Speed at which the cutoff frequency will change
This is effective if Mod Wave is SQR, SAW1, or SAW2.
Level
0–127
Output Level

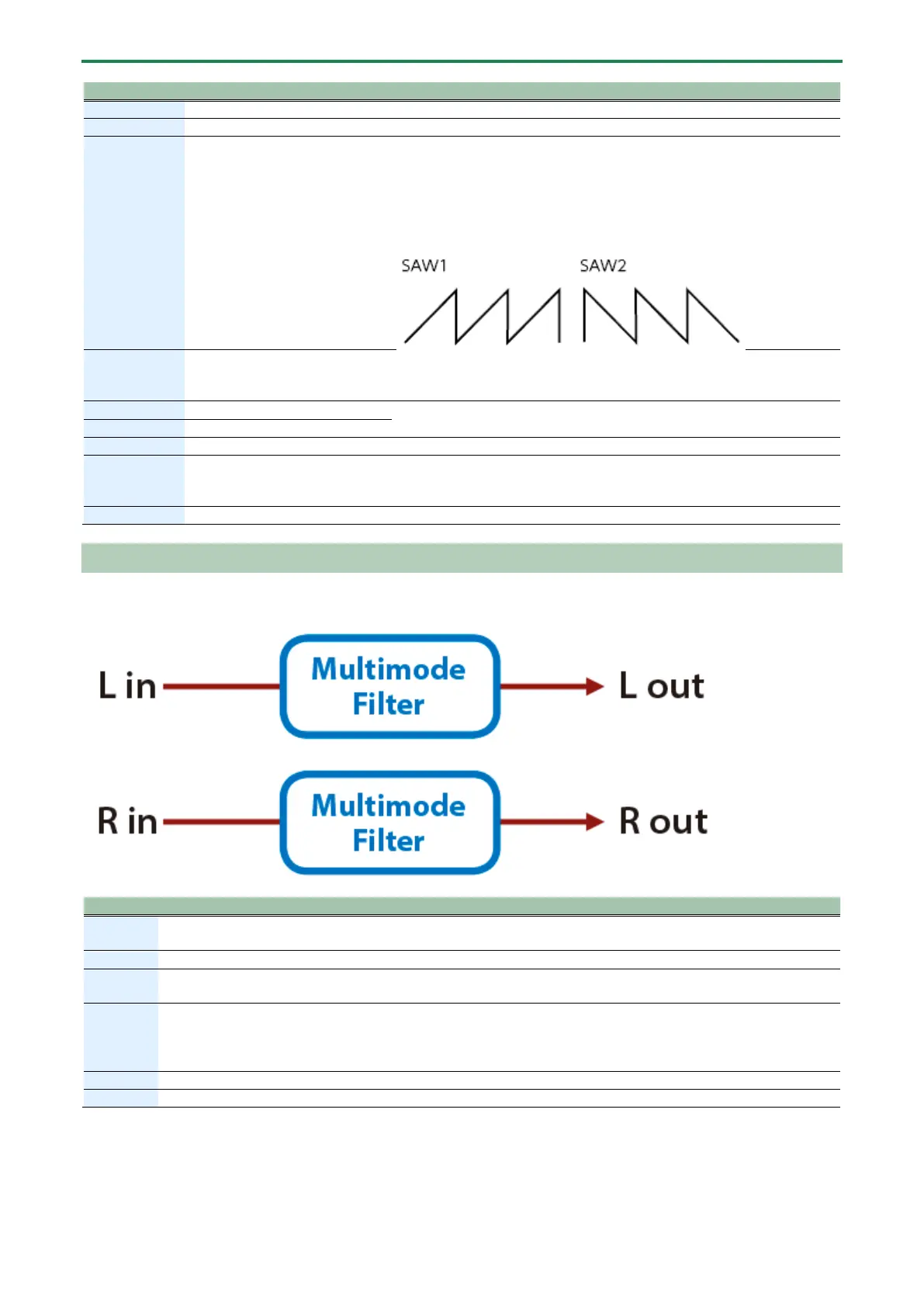

MM Filter (Multi-mode Filter)
This is a filter that is adjusted for effective use in a DJ performance.
Parameter
Value
Explanation
Type
LPF/HPF, LPF, HPF,
BPF
LPF/HPF: The filter type is automatically switched according to the Filter Tone parameter
value.
Tone
0–255
Frequency at which the filter operates
Color
0–255
Filter resonance level
Higher values more strongly emphasize the region of the operating frequency.
Slope
-12, -24, -36 [dB]
Amount of attenuation per octave
-12 dB: gentle
-24 dB: steep
-36 dB: extremely steep
Gain
0–+12 [dB]
Amount of boost for the filter output
Level
0–127
Output Level
