Filter Type
Equalizer

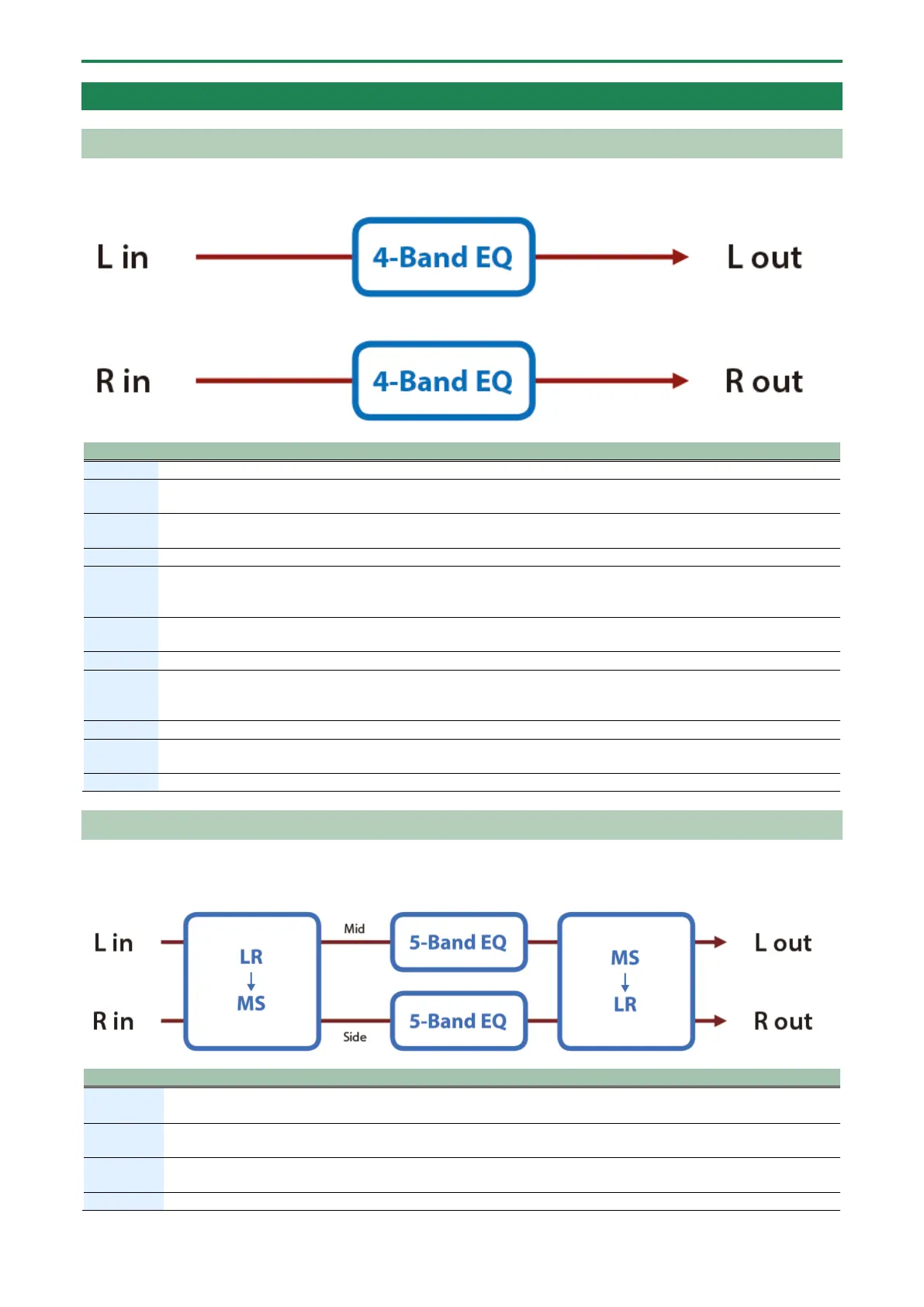

This is a four-band stereo equalizer (low, mid x 2, high).
Parameter
Value
Explanation
Low Freq
20, 25, 31, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315, 400 [Hz]
Frequency of the low range
Low Gain
-15–+15 [dB]
Amount of boost/cut for the low-frequency
range
Mid1 Freq
200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000 [Hz]
Frequency of the middle range 1
Mid1 Gain
-15–+15 [dB]
Gain of the middle range 1
Mid1 Q
0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 1
Set a higher value for Q to narrow the range
to be affected.
Mid2 Freq
200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000, 2500, 3150,
4000, 5000, 6300, 8000 [Hz]
Frequency of the middle range 2
Mid2 Gain
-15–+15 [dB]
Gain of the middle range 2
Mid2 Q
0.5, 1.0, 2.0, 4.0, 8.0
Width of the middle range 2
Set a higher value for Q to narrow the range
to be affected.
HighFreq
2000, 2500, 3150, 4000, 5000, 6300, 8000, 10000, 12500, 16000 [Hz]
Frequency of the high range
High Gain
-15–+15 [dB]
Amount of boost/cut for the high-frequency
range
Level
0–127
Output Level
Mid-Side EQ (Mid-Side Equalizer)
This effect allows the left/right signals that have similar phase to be tonally adjusted in a different way than the left/right signals
that have different phase.
Parameter
Value
Explanation
M EQ
Switch
OFF, ON
Switches whether to apply tonal adjustment to left/right
input signals whose phase is similar (in phase).
M In G
-12.00–+12.00 [dB]
Volume of left/right input signals whose phase is similar (in
phase)
M Low F
20, 25, 31, 40, 50, 63, 80, 100, 125, 160, 200, 250,
315, 400 [Hz]
Frequency of the low range
M Low G
-12.00–+12.00 [dB]
Amount of boost/cut for the low-frequency range
