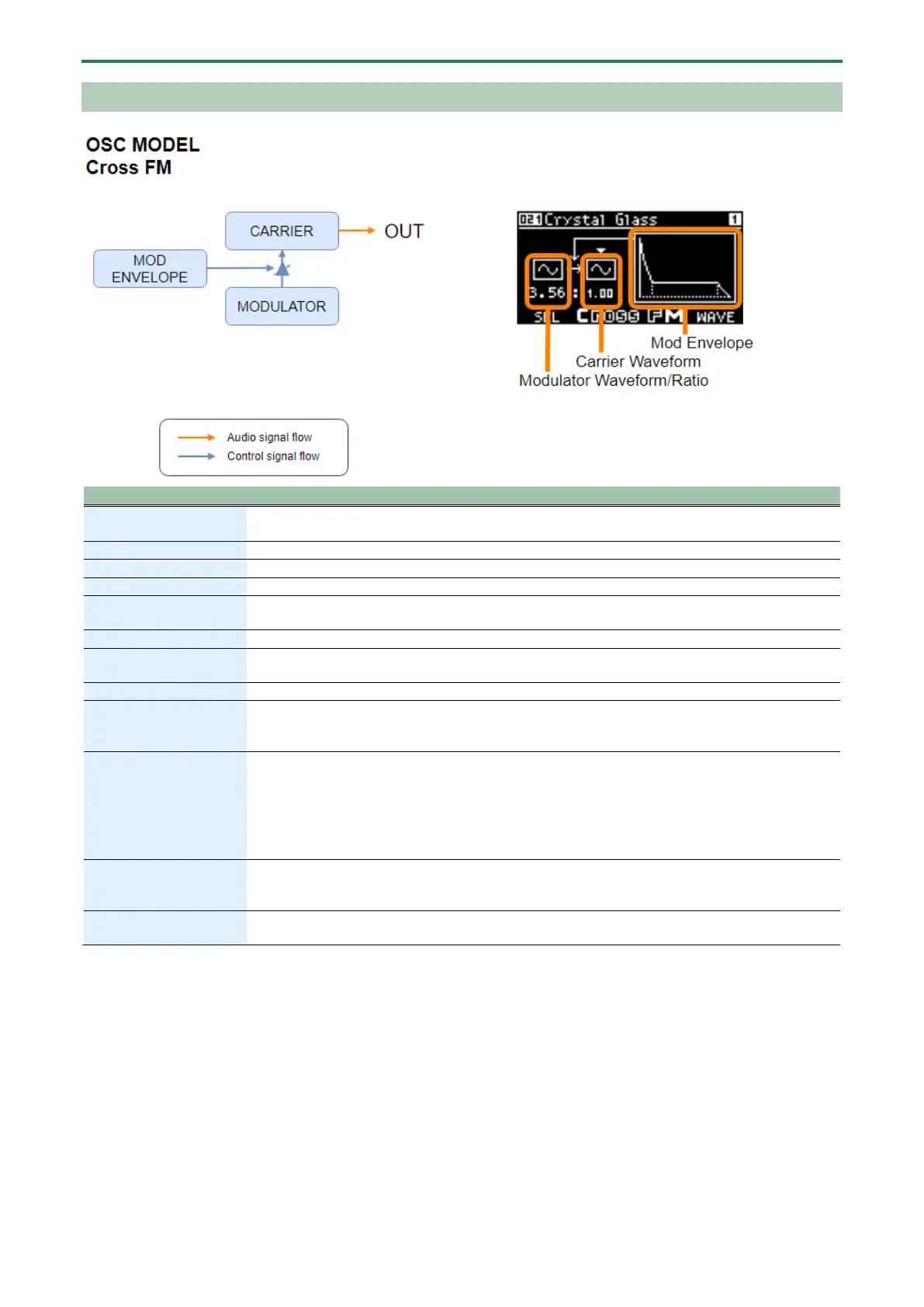

Roland SH-4d - Cross FM OSC MODEL Cross FM

Creating a Tone
33
Cross FM
Parameter
Controllers
Value
Explanation
Carrier/Modulator
Waveform
[2] knob (on the top
screen only)
SINE, TRI,
SQR, SAW
This sets the waveform.
Coarse Tune
PITCH
-24–+24
Specifies the pitch in semitone steps (maximum ±2 octaves).
Fine Tune
SHIFT+PITCH
-50–+50
Specifies the pitch in cents (maximum ±50 cents).
Ratio
TIMBRE
1.0–16.0
Sets the frequency ratio between the carrier and modulator.
Ratio Fine
SHIFT+TIMBRE
-50–+50
Sets the frequency ratio between the carrier and modulator
in smaller steps.
Mod Env Atk
[OSC 1] slider
0–1023
Sets the attack time of the modulation envelope.
Mod Env Dcy/Rel
[OSC 2] slider
0–1023
Sets the decay and release times of the modulation
envelope.
Mod Env Sus
[OSC 3] slider
0–511
Sets the sustain level of the modulation envelope.
Mod Depth
[OSC 4] slider
0–63
Sets the intensity of the modulation envelope.
Larger values produce a greater change with the
modulation envelope.
Carrier/Modulator Pulse
Width
-
0–63
This effect changes the duty ratio of the pulse width to alter
the waveform.
You can use this effect with other waveforms besides SQR
(square wave).
* A value of zero results in a 50:50% duty ratio.
Carrier/Modulator PWM
Depth
-
0–63
Sets how much the LFO is applied (depth) to the PW (pulse
width).
The pulse width is modulated according to the LFO settings.
Carrier/Modulator Fat
-
0–63
Distorts the waveform and adds a frequency component
one octave lower than the original waveform.
