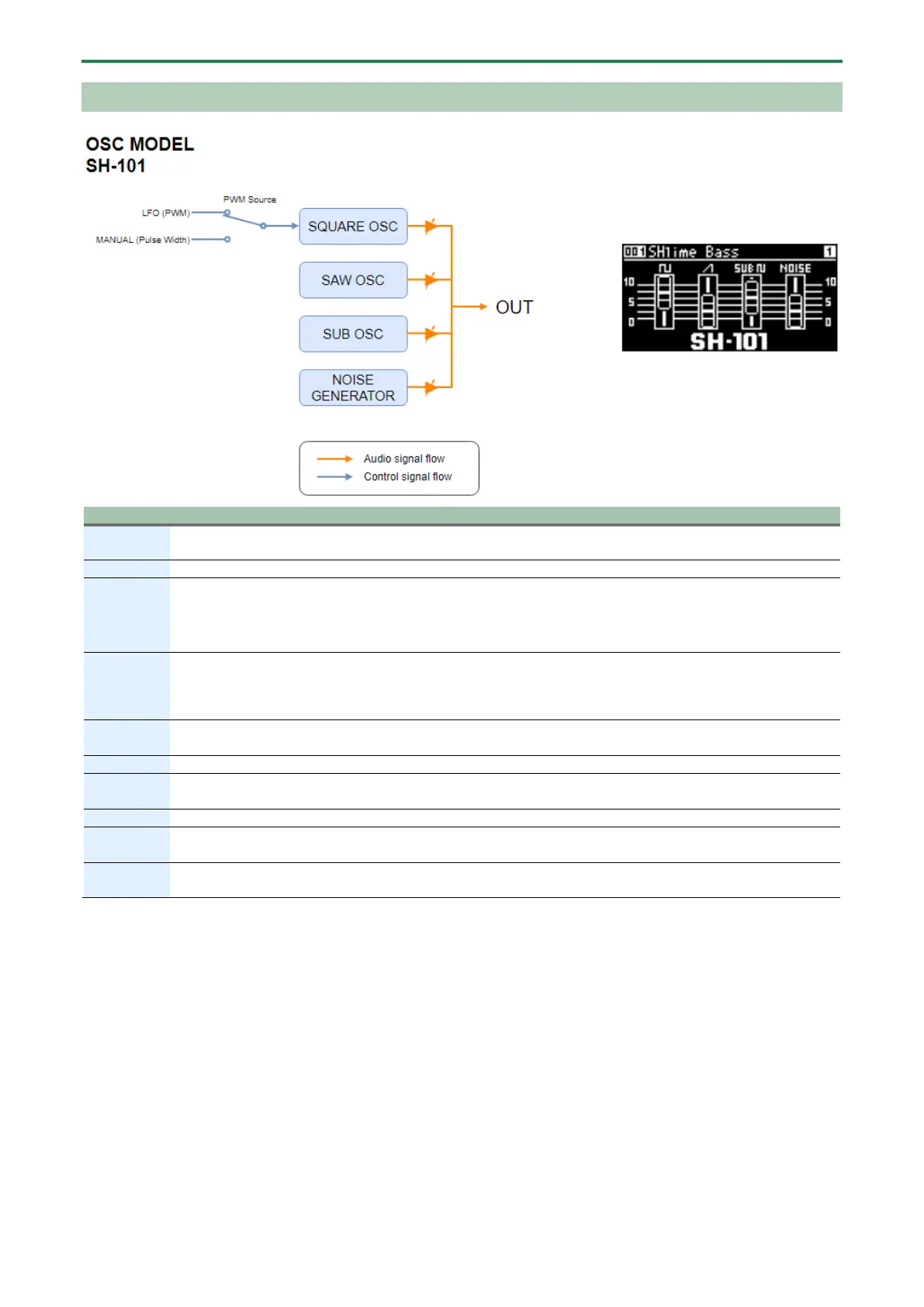

Roland SH-4d - SH-101 OSC MODEL SH-101

Creating a Tone
31
SH-101
Parameter
Controllers
Value
Explanation
Coarse Tune
PITCH
-24–+24
Specifies the pitch in semitone steps (maximum ±2
octaves).
Fine Tune
SHIFT+PITCH
-50–+50
Specifies the pitch in cents (maximum ±50 cents).
Pulse Width
TIMBRE (when “PWM Source” is
set to “MANUAL”)
0–63
Changes the duty ratio of the pulse width to alter the
waveform.
* A value of zero results in a 50:50% duty ratio.
PWM Depth
TIMBRE (when “PWM Source” is
set to “LFO”)
0–63
Sets how much the LFO is applied (depth) to the PW
(pulse width) of the square wave.
The pulse width is modulated according to the LFO
settings.
Square
Level
[OSC 1] slider
0–127
Sets the square wave volume.
Saw Level
[OSC 2] slider
0–127
Sets the sawtooth wave volume.
Sub Osc
Level
[OSC 3] slider
0–127
Sets the sub-oscillator volume.
Noise Level
[OSC 4] slider
0–127
Sets the noise generator volume.
PWM
Source
[OSC 1] button
LFO, MANUAL
Switches the function of the [TIMBRE] knob between
pulse width and PWM depth.
Sub Osc
Wave
[OSC 3] button
1OCT SQR, 2OCT SQR,
2OCT PLS
Switches between sub-oscillator pitches and
waveforms.
