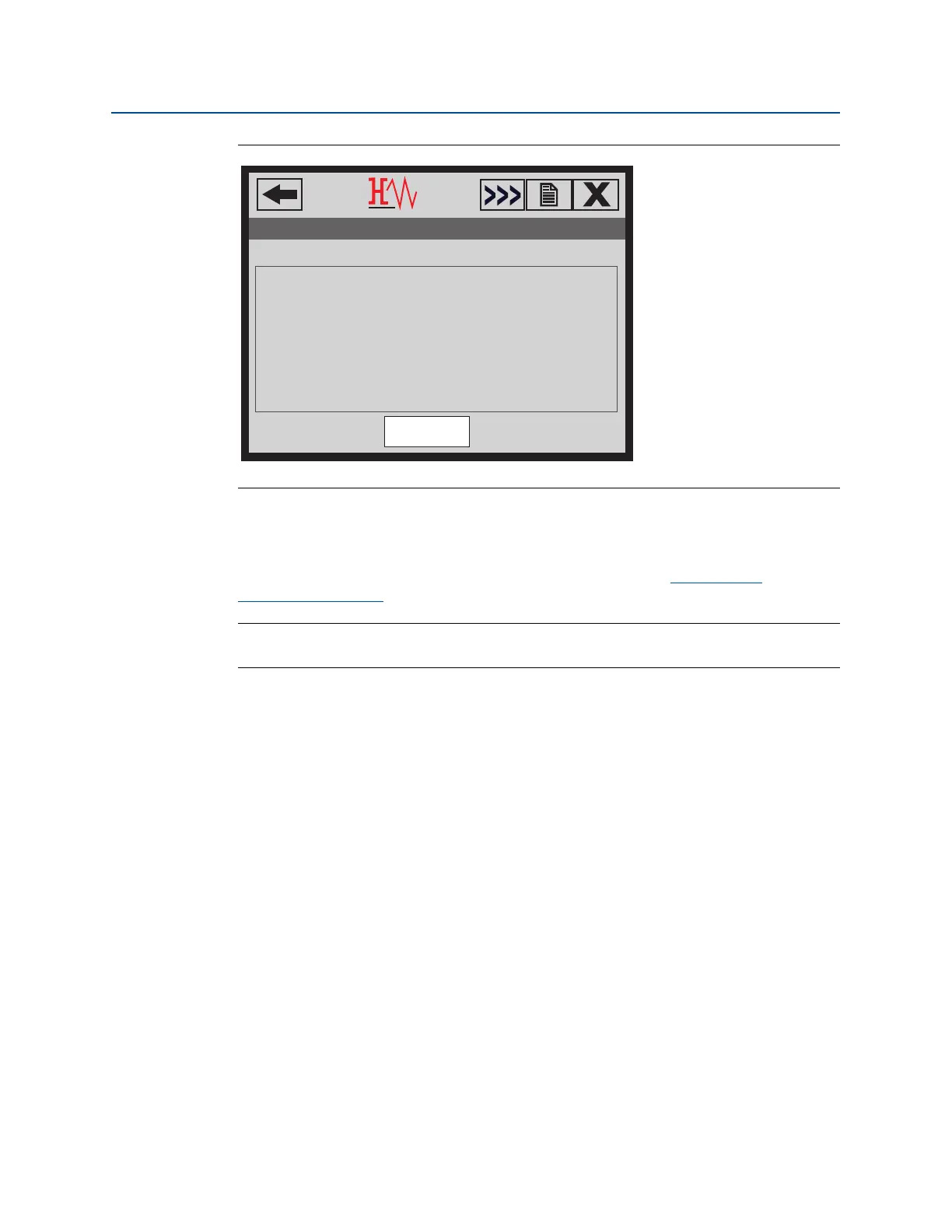

Figure 2-6. Device Dashboard
Configuring with AMS Device Manager
Full configuration capability with AMS Device Manager requires loading the most current
Device Descriptor (DD) for this device. Download the latest DD at Emerson.com
or
FieldCommGroup.org
.
Note
All steps using AMS Device Manager will be described using version 11.5.
Configuring with a local operator interface
The LOI requires option code M4 to be ordered. To activate the LOI push either
configuration button. Configuration buttons are located on the LCD display (must remove
housing cover to access), or underneath the top tag of the transmitter. See Ta bl e 2- 3 for
configuration button functionality and Figure 2-7 for configuration button location. When
using the LOI for configuration, several features require multiple screens for a successful
configuration. Data entered will be saved on a screen-by-screen basis; the LOI will indicate
this by flashing “SAVED” on the LCD display each time.
LOI menu trees are available in Appendix D: Local Operator Interface.
SAVE
1. Overview
2. Configure
3. Service Tools
2088 FT 45B
Online
To Next Page
