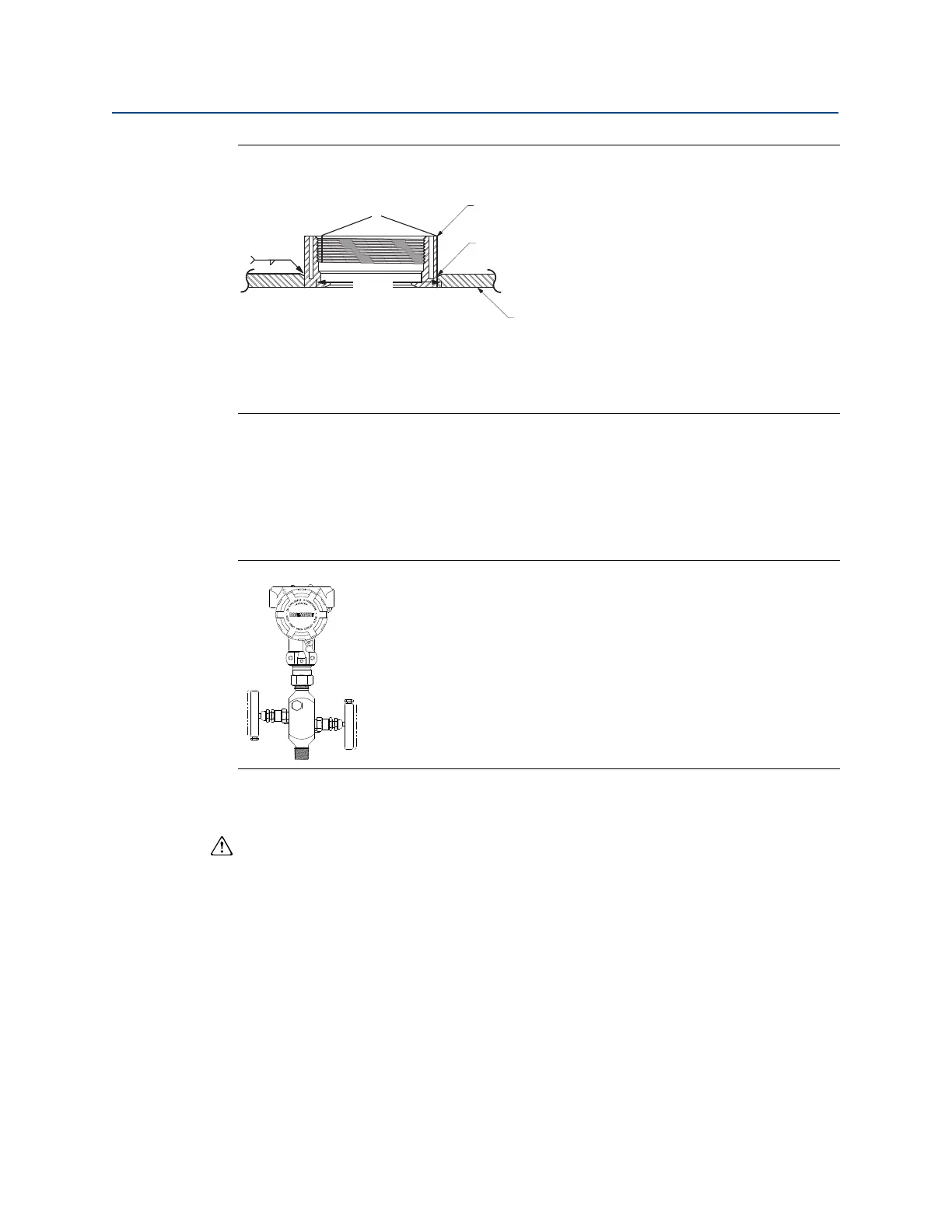

Figure 3-8. PTFE Installing the Weld Spud
A. 100–125 Amps recommended
B. Heat isolation grooves
C. Weld spud
D. Bevelled edge
E. Process
3.6 Rosemount 306 Manifold
The Rosemount 306 Integral Manifold is used with the Rosemount 2088 in-line transmitters
to provide block-and-bleed valve capabilities of up to 10000 psi (690 bar).
Figure 3-9. Rosemount 2088 and 306 In-line Manifold
3.6.1 Rosemount 306 Integral Manifold installation procedure
Assemble the Rosemount 306 Manifold to the Rosemount 2088 In-line transmitter with a
thread sealant.
B
Code “C” in Model Structure or
P/N 02088-0195-0005
C
A
D
E
2.37 (60)
308L SST
