Hardware Installation
For M20 threads, install conduit plugs to full thread engagement or until mechanical
resistance is met.
Mounting brackets
Rosemount 2088, 2090F, or 2090P transmitters may be panel-mounted or pipe-mounted
via an optional mounting bracket (option code B4). See Figure 3-1 on page 32 and for
dimensional and mounting configuration information.

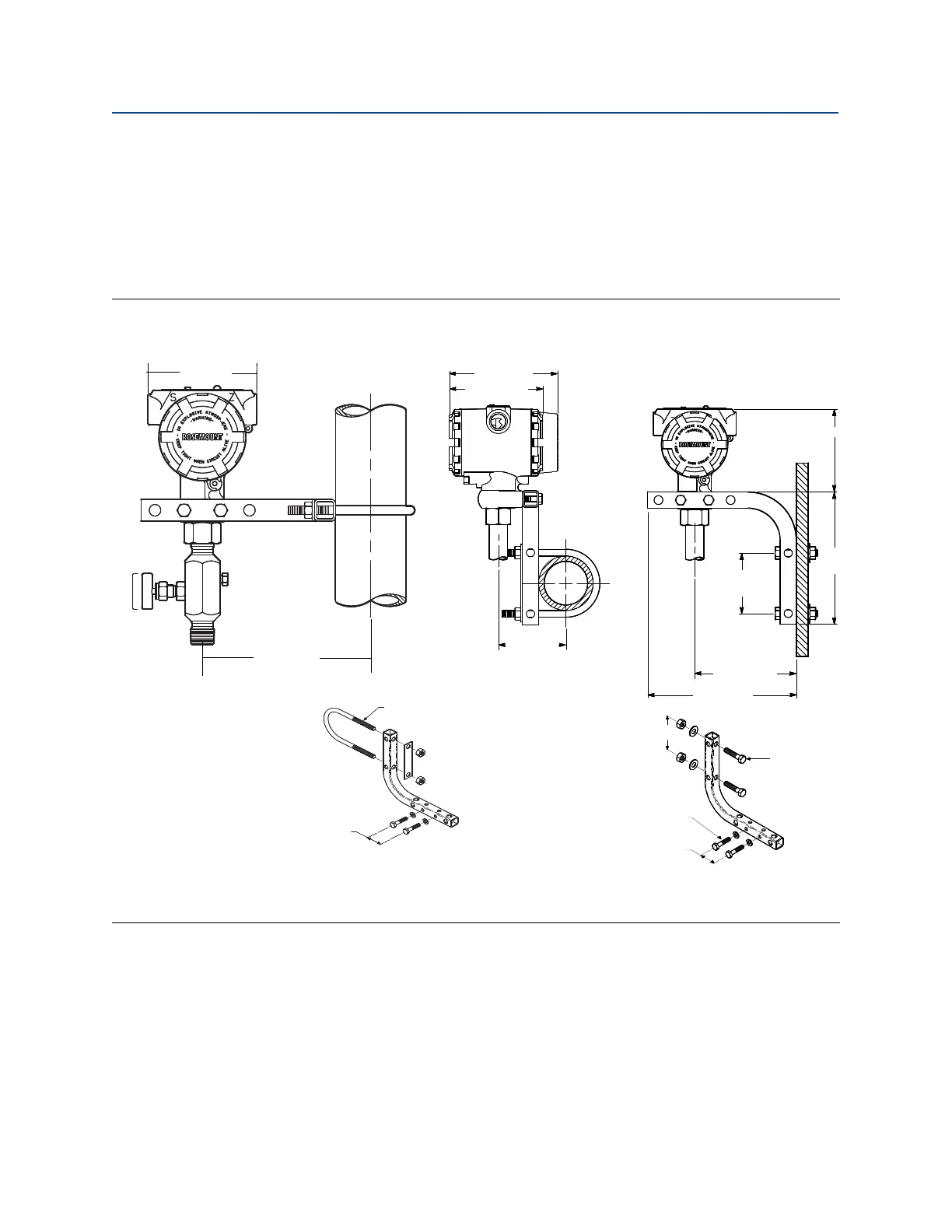

Figure 3-1. Mounting Bracket Option Code B4
Dimensions are in inches (millimeters).
Pipe mounting Panel mounting
5.97 (1.52)
2.97 (75)
3.95 (100)
6.15
(156)
2.81
(71)
4.78 (121)
6.90 (175)
2-in. U-Bolt
for pipe mounting
(clamp shown)
1.42 (36)
2.81 (71)
5
/16× 1½ Bolts
for panel
mounting
(not supplied)
1
/4× 1
1
/4 Bolts
for transmitter mounting
(not supplied)
3.85 (98)
5.13 (130)
4.26 (109)
1
/4× 1
1
/4 Bolts
for transmitter mounting
(not supplied)
1.42 (36)
