Rosemount 2088 - Field Communicator Menu Trees

Field communicator menu trees and Fast Keys
March 2017
Reference Manual
00809-0100-4108, Rev CA
Field communicator menu trees and Fast Keys
113
Appendix C Field Communicator menu
trees and Fast Keys
Field communicator menu trees . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 113
Field communicator Fast Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 117
C.1 Field communicator menu trees

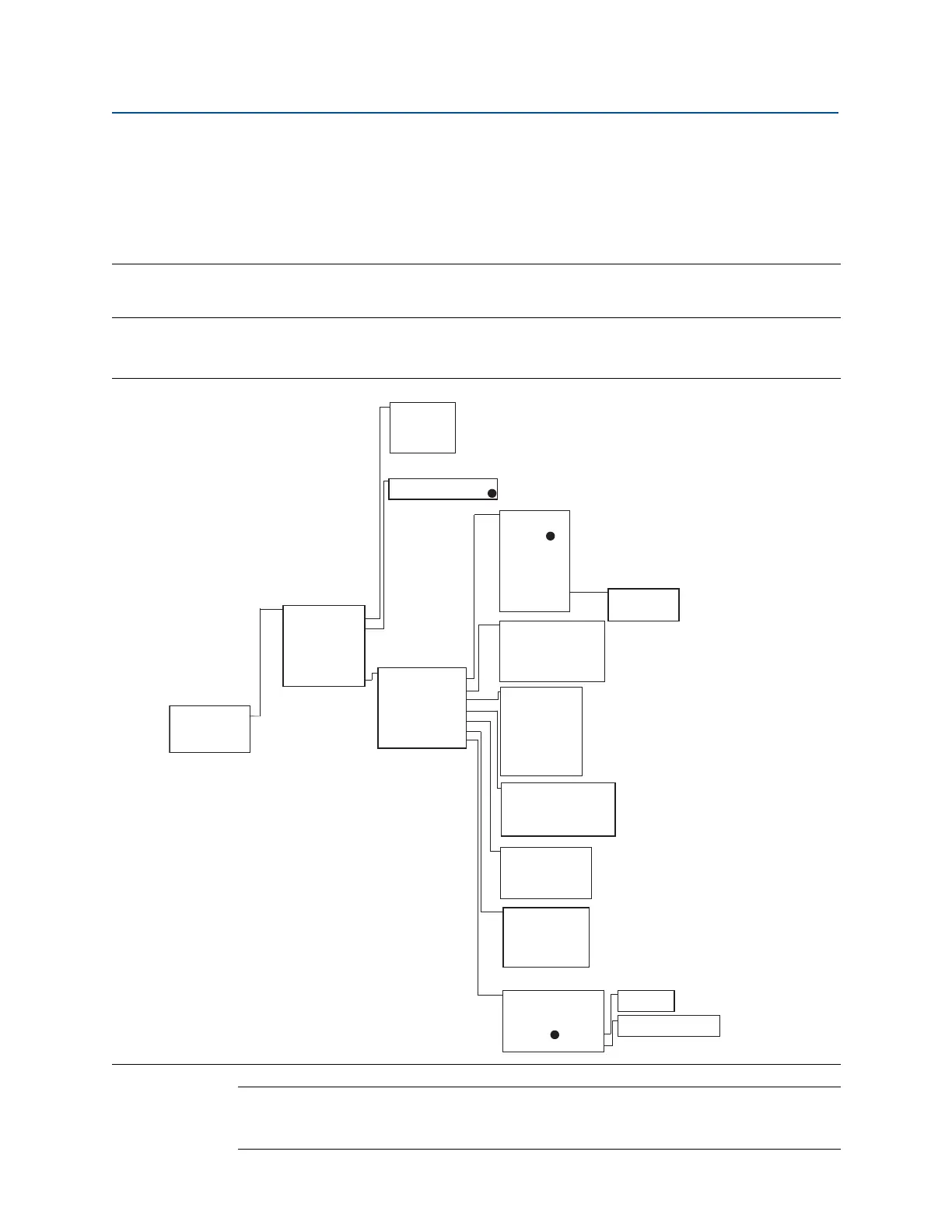

Figure C-1. Field Communicator menu tree: overview
Note
Selections with black circle are only available in HART
®
Revision 7 mode. Selection will not
appear in HART Revision 5 DD.
Home
1 Overview
2 Configure
3 Service Tools
Overview
1 Device Status
2 Comm Status
3 PV
4 Analog Output
5 Upper Range Value
6 Lower Range Value
7 Device Information
1 Model Number 1
2 Model Number 2
3 Model Number 3
Flange Info
1 Process Connection
2 Process Connection Material
3 O-ring Material
4 Drain/Vent Material
Comm Status: Polled
1 Communication Change
HART Lock
1 Device Lock
LOI Password Protection
1 Password Protection
Remote Seal Info
1 Num of Remote Seals
2 Seal Type
3 Fill Fluid
4 Diaphragm Material
Alarm Levels
1 Alarm Direction
2 High Alarm
3 High Saturation
4 Low Saturation
5 Low Alarm
Active Alerts
1 Refresh Alerts
2 Active Alert 1
3 Active Alert 2
4 Etc
Sensor Module Info
1 Serial Number
2 Measurement Type
3 Configuration
4 Sensor Range
5 PV Upper Limit
6 PV Lower Limit
7 Isolator material
8 Fill Fluid
Identification
1 Tag
2 Long Tag
3 Model
4 Serial Number
5 Date
6 Description
7 Message
8 Model Numbers
9 Manufacturer
Security
1 Security Switch Status
2 External Buttons
3 Configuration Buttons
4 HART Lock
5 LOI Password Protection
Device Information
1 Identification
2 Revision Numbers
3 Sensor Module Info
4 Flange Info
5 Remote Seal Info
6 Alarm Levels
7 Security
Revision Numbers
1 Universal Revision
2 Field Device
3 Software
4 Hardware
5 Device Driver Revision
