Reference Manual
00809-0100-4108, Rev CA
Operation and maintenance
March 2017
Operation and maintenance

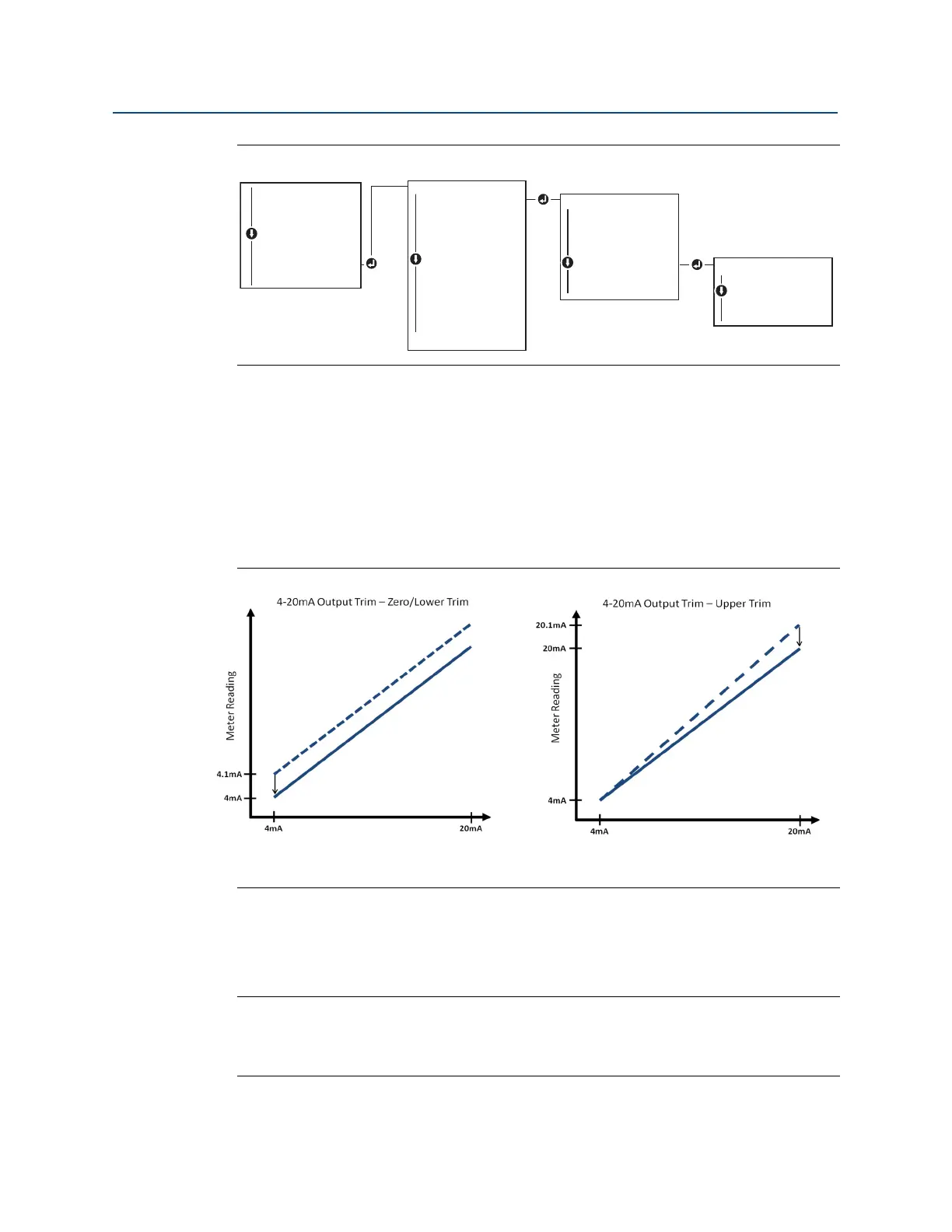

Figure 5-4. Recall Factory Trim - Sensor Trim With Local Operator Interface
5.6 Trim the analog output
The Analog Output Trim commands allow you to adjust the transmitter’s current output at
the 4 and 20 mA (1 – 5 Vdc) points to match the plant standards. This trim is performed
after the digital to analog conversion so only the 4–20 mA analog (1– 5 Vdc) signal will be
affected.
Figure 5-5 graphically shows the two ways the characterization curve is affected
when an analog output trim is performed.
Figure 5-5. Analog Output Trim Example
A. Before trim
B. After Trim
5.6.1 Performing digital-to-analog trim (4–20mA/ 1–5 V
output trim)
Note
If a resistor is added to the loop, ensure that the power supply is sufficient to power the
transmitter to a 20 mA output with additional loop resistance. Refer to “Power supply” on
page 46.
EXTENDED MENU
CALIBRAT
CALIBRAT
DAMPING
TRANSFER FUNCT
SCALED VARIAB
ASSIGN PV
TAG
ALARM SAT VALUES
PASSWORD
SIMULATE
HART REV
BACK TO MENU
EXIT MENU
VIEW CONFIG
ZERO TRIM
UNITS
RERANGE
LOOP TEST
DISPLAY
EXTENDED MENU
EXTENDED MENU
EXIT MENU
CALIBRAT
ZERO TRIM
LOWER TRIM
UPPER TRIM
ANALOG TRIM
FACTORY RECALL
FACTORY RECALL
BACK TO MENU
EXIT MENU
FACTORY RECALL
SENSOR RECALL
SENSOR RECALL
ANALOG RECALL
BACK TO MENU
EXIT MENU
A
A
B
B
mA Output
mA Output
