Electrical Installations
March 2017
Electrical Installations

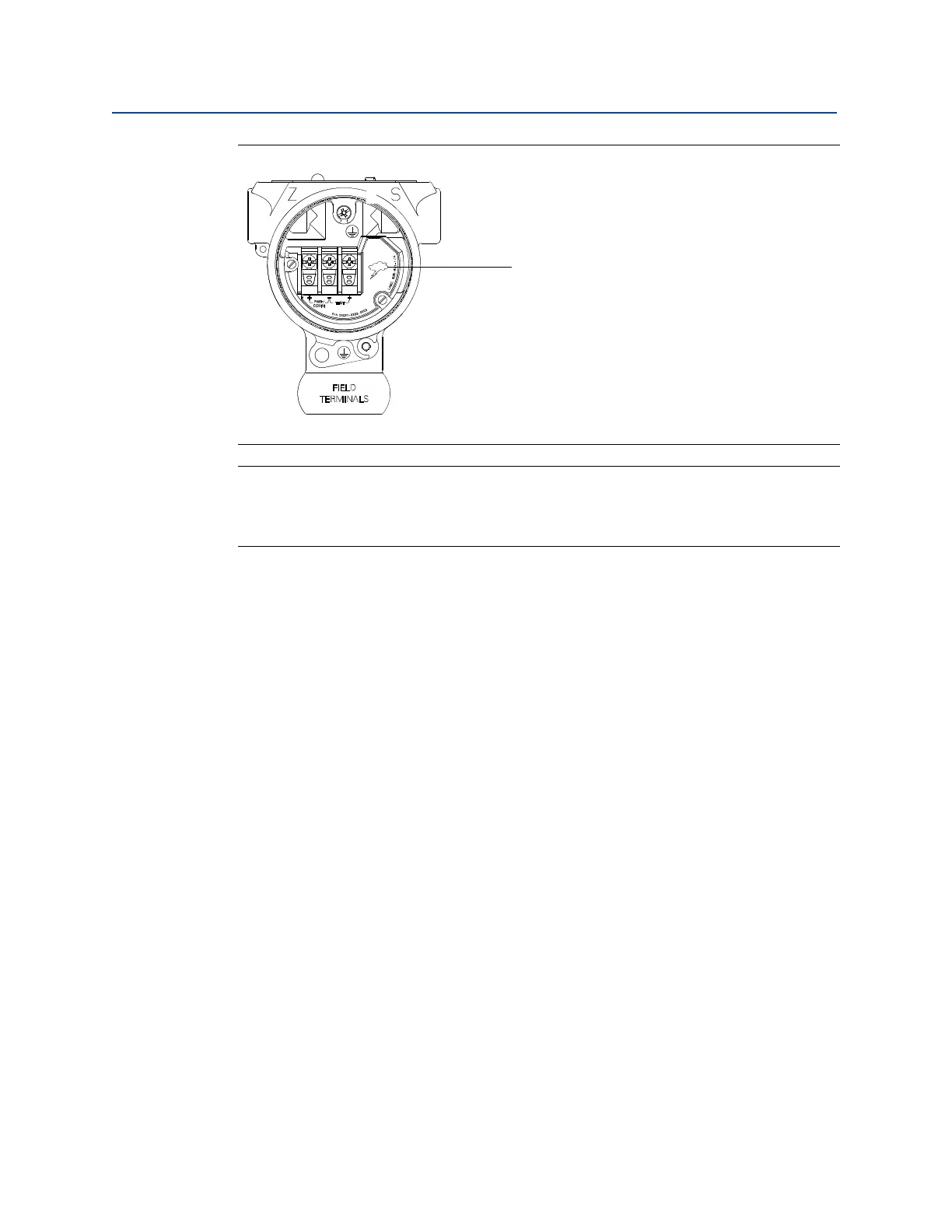

Figure 4-10. Transient protection terminal block
A. Lightning bolt location
Note
The transient protection terminal block does not provide transient protection unless the
transmitter case is properly grounded. Use the guidelines to ground the transmitter case.
Refer to Figure 4-9 on page 50.
A
