12 Cubis
®
MCA Operating Instructions
Device Description
3.2 Weighing Pan and Associated Components
4
3
2
1

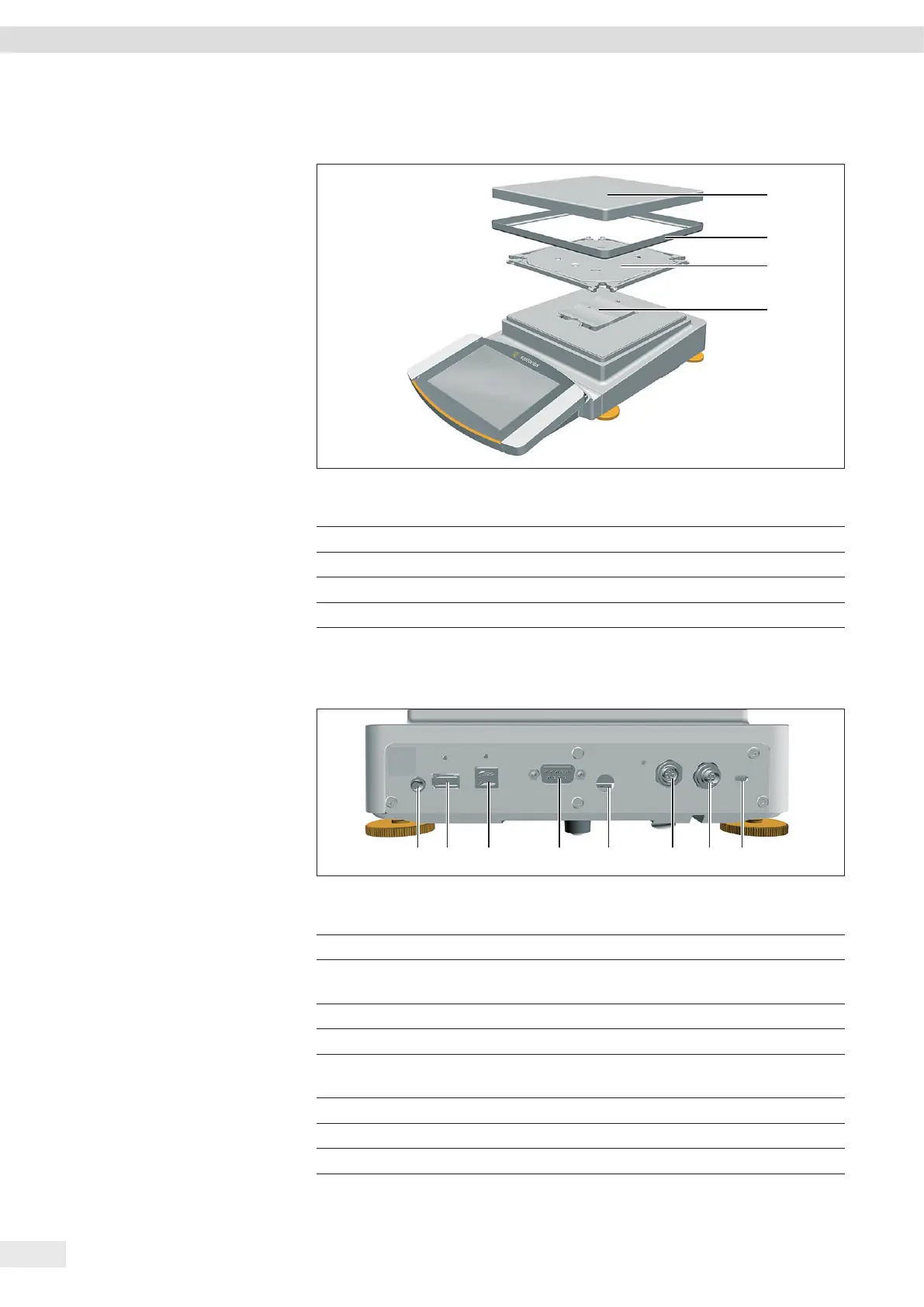

Fig. 2: Precision balance (example)
Pos. Name
1 Weighing pan
2 Shield disk
3 Pan support
4 Pan retainer
3.3 Connections and Components on the Weighing Module
1 2 3 4 5 6 7 8
Fig. 3: Connections to the weighing module (example)
Pos. Name Description
1 On key
2 USB-A connection For USB accessories, e.g. printers, USB mass storage
devices, barcode scanners
3 USB-B connection For connection to a PC
4 COM-RS232 connection 9-pin, for connection to a PC or PLC
5 Access switch Protects the device from changes to the device
settings. Is sealed for conformity-assessed devices.
6 Peripheral connection For connecting Sartorius accessories
7 Power supply For connection to the power supply
8 Slot For attaching a “Kensington” anti-theft device
