Cubis
®
MCA Operating Instructions 37
Installation

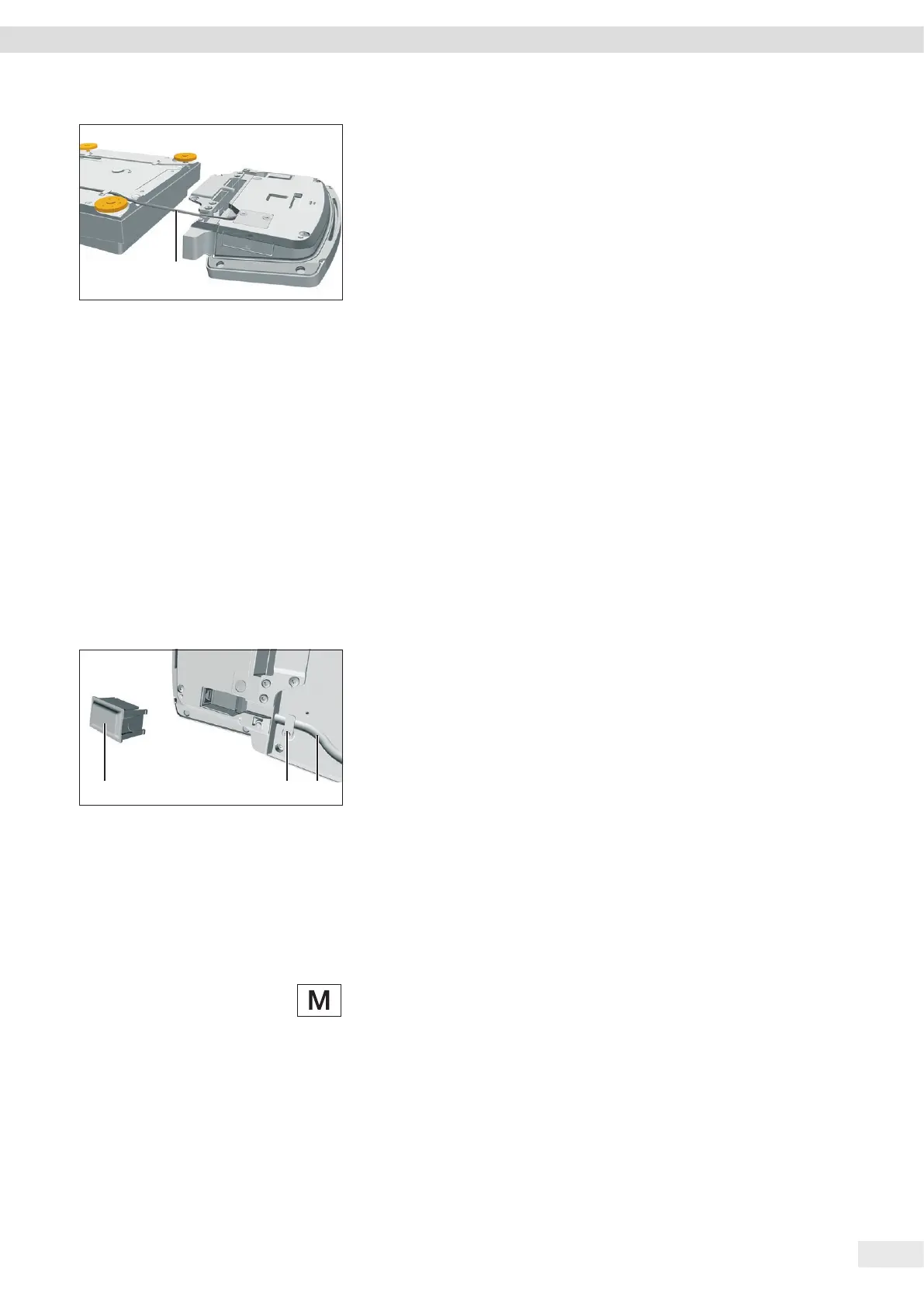

t Pull the connection cable (1) between the control unit and the weighing module
out of the control unit’s retainer and unroll it.
t Turn the device over again and place it on an even surface.
5.5 Connecting the Ethernet Cable
Material: 1 Ethernet cable
1 soft support base
Requirements
The weighing pan and the associated components have not been set up.
Procedure
t If the control unit is attached to the weighing module: Turn over the device and
place on a soft surface.
t If the control unit is removed from the weighing module: Turn over the control
unit and place on a soft surface.
t Remove the cover (3) of the Ethernet connection socket on the underside of the
display and control unit.
t Plug the Ethernet cable into the Ethernet connection socket.
t If the control unit is attached to the weighing module: Place the Ethernet cable
into the cable channel (1) and turn the cable lock (2) using the Ethernet cable.
t If the control unit is removed from the weighing module: Place the Ethernet
cable in the cable channel.
t Place the device back on the device base on a level surface.
5.6 Preparing Below-balance Weighing
The device can be configured for below-balance weighing. Samples can be
suspended for weighing using below-balance weighing, e.g. samples, which do
not fit on the weighing pan.
For below-balance weighing, the hook must be installed in the device base and the
device set up on a weighing table with recess.
In legal metrology:
− The below-balance weighing equipment may not be used.
− The cover of the below-balance weighing equipment may not be opened.
Material: 1 soft support base
1 draft protection shield
1 weighing table with recess
1
2 13
