Cubis
®
MCA Operating Instructions 81
Technical Data
15.10 Data Storage Device
Value
Maximum number of data records 150000
15.11 Interfaces
15.11.1 Specifications for the COM-RS232 Interface
Type of interface: Serial interface
Interface operation: Full duplex
Level: RS232

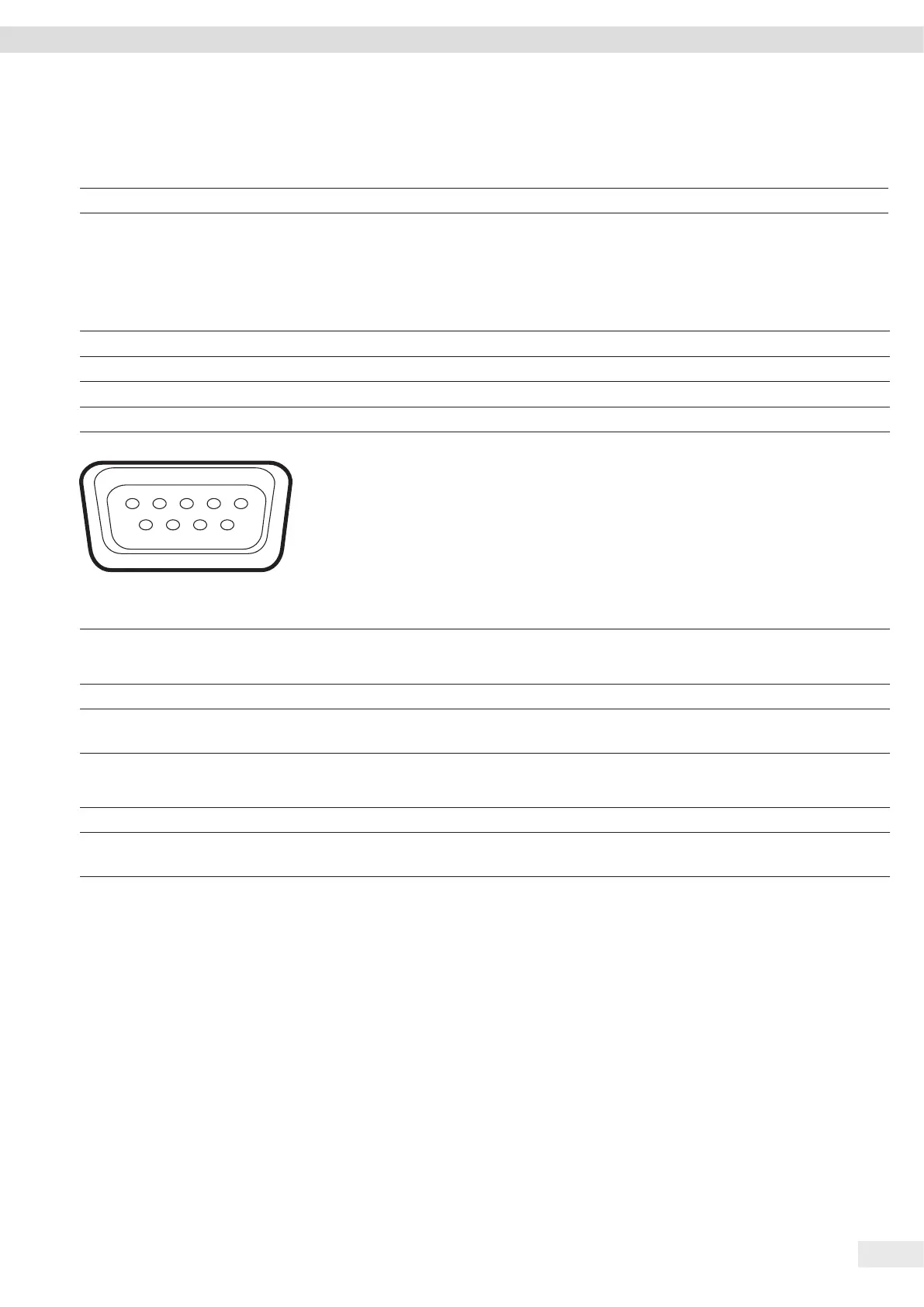

Connection: D-sub connector, 9-pin
Pin assignment
Pin 1: Not assigned
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not assigned
Pin 5: Internal ground
Pin 6: Not assigned
Pin 7: Clear to Send (CTS)
Pin 8: Request to Send (RTS)
Pin 9: Not assigned
15.11.2 Specifications for the USB-A Interface
Communication: USB host (master)
Connectable devices: Sartorius printers, USB memory sticks,
USB barcode scanners, USB keyboards
15.11.3 Specifications for the USB-B Interface
Communication: USB device (slave)
Type of interface: Virtual serial interface (virtual COM-port,
VCP) and “PC direct” communication
9
1
5
6
