4.4 Advanced Operator Guidance
Advanced applications have advanced operator guidance.
1 2

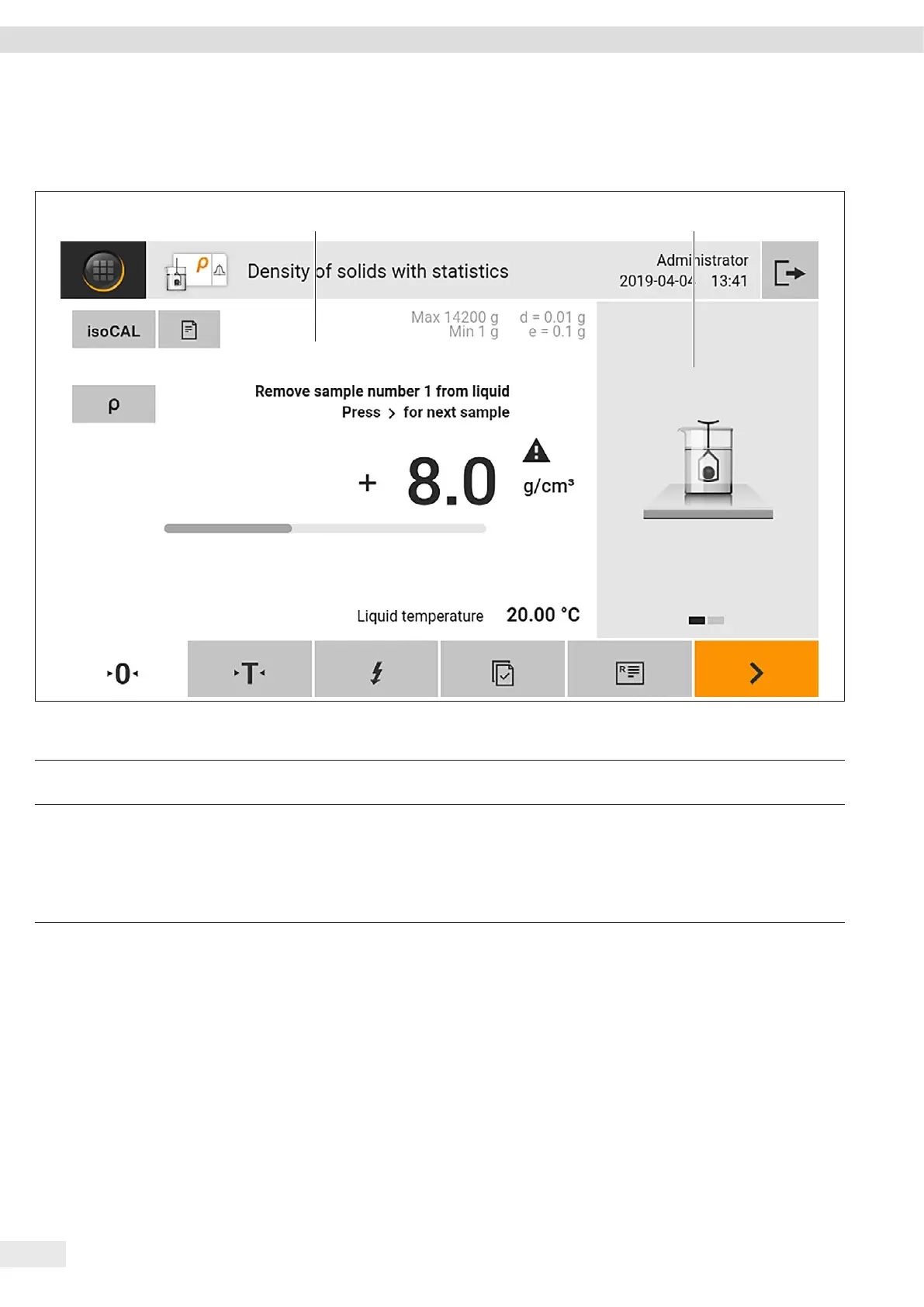

Fig. 4: Advanced operator guidance (example)
Pos. Name Description
1 Weighing display with operator
guidance
2 Advanced operator guidance Guides the user through the active task. Includes 2 or 3 convertible displays
depending on the selected application:
− First display: Shows the step currently being carried out as a graphic display.
− Second display: Shows the current parameters for the task.
− Third display, only for applications with statistics function: Represents statistical
information as a curve.
