Operating Concept
4.3 Operating Elements in the Weighing Display
6
12
1 2 3 4 5
7
9
8
10
11

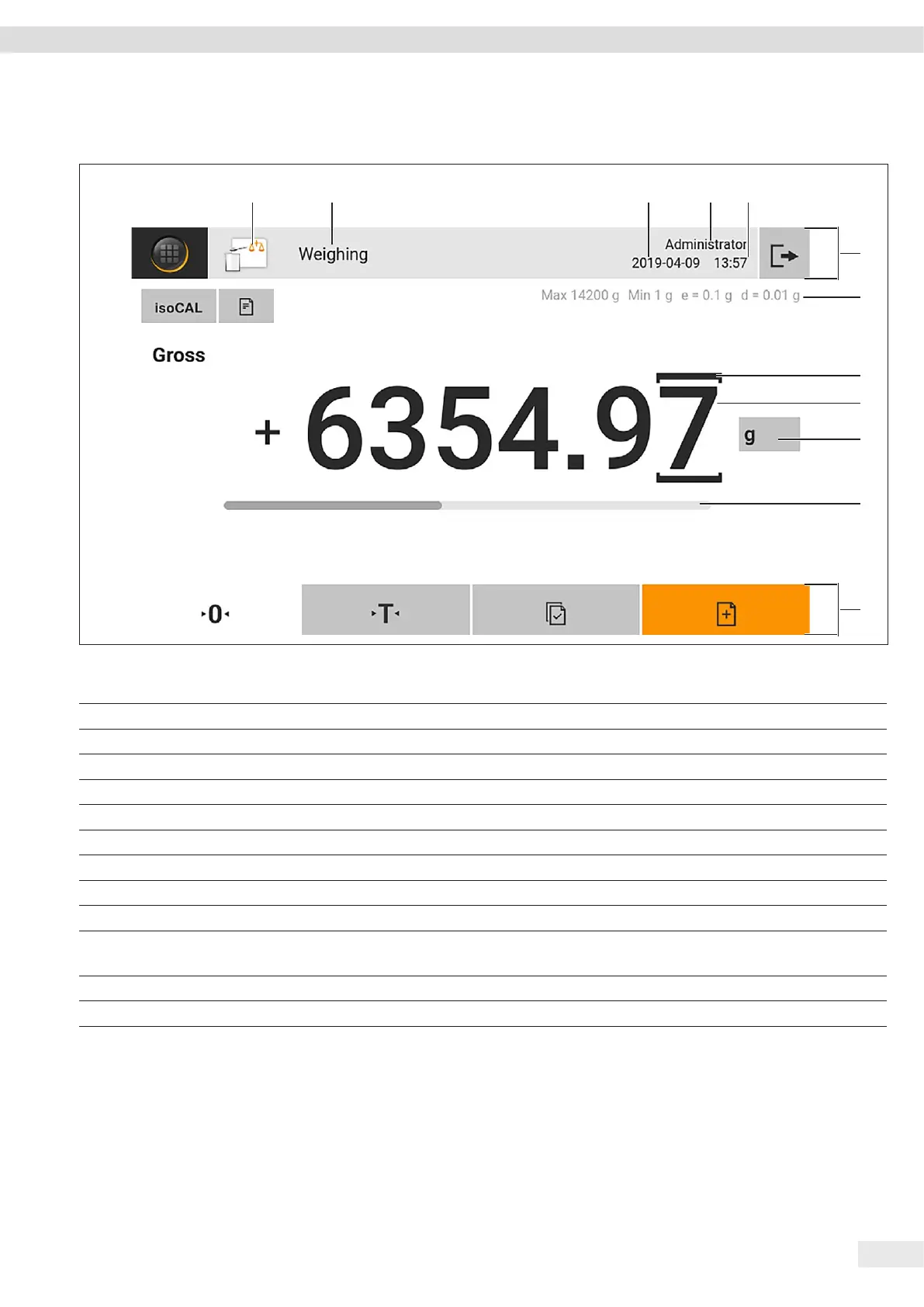

Fig. 3: Weighing display (example)
Pos. Name Description
1 Application symbol Displays the symbol for the active application.
2 Task name Displays the name of the active task.
3 Date display Displays the current date.
4 User name Displays the name of the active user profile.
5 Time display Displays the current time.
6 Navigation bar Enables navigation in menus.
7 Metrological data
8 Labeled points Labels the differentiated points.
9 Weight value display In the selected unit and resolution
10 Weighing unit Displays the selected unit, e.g. grams, [g].
Enables the unit and resolution to be selected.
11 Bar graph Displays the measured value as a percentage of weighing capacity utilization.
12 Function bar Displays available operating functions for the current display.
