MCA Operating Instructions 13
Device Description
3.4 Connections on the Control Unit
1 2 3

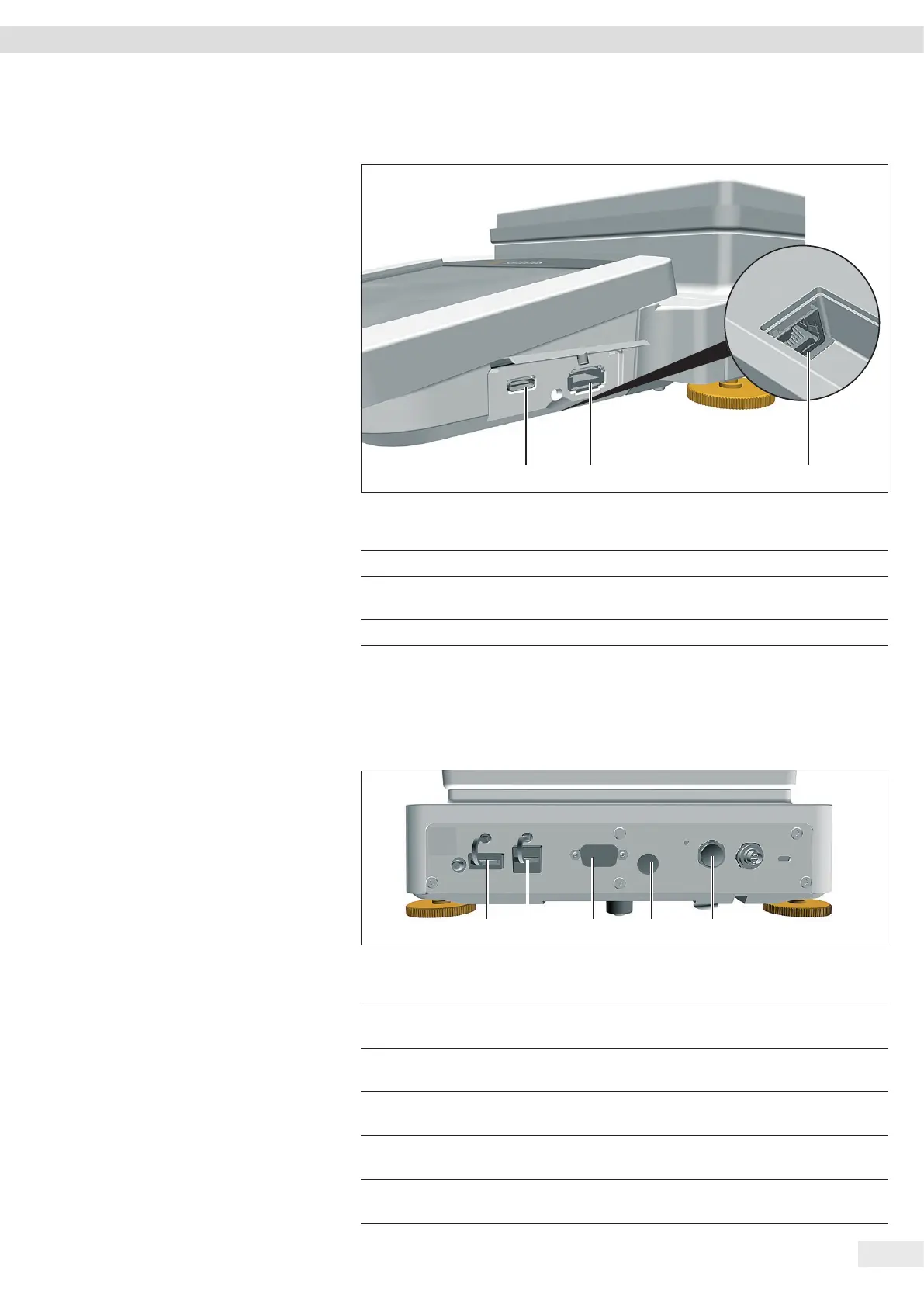

Fig. 4: Connections on the control unit (example)
Pos. Name Description
1 USB-C connection For USB mass storage
2 USB-A connection For USB accessories, e.g. printers, USB mass storage
devices, barcode scanners
3 Ethernet connection For connecting an Ethernet cable
3.5 Safety Equipment
3.5.1 Protective Caps on the Weighing Module
1 2
3 4
5
Fig. 5: Connections to the Weighing Module
Pos. Name Description
1 Protective cap for USB-A
connection
Plastic attachment hood, fastened to the device.
2 Protective cap for USB-B
connection
Plastic attachment hood, fastened to the device.
3 Protective cap for
COM-RS232 connection
Removable plastic sealing cap.
4 Protective cap for access
switch
Removable plastic sealing cap.
5 Protective cap for
peripheral connection
Removable plastic sealing cap.
