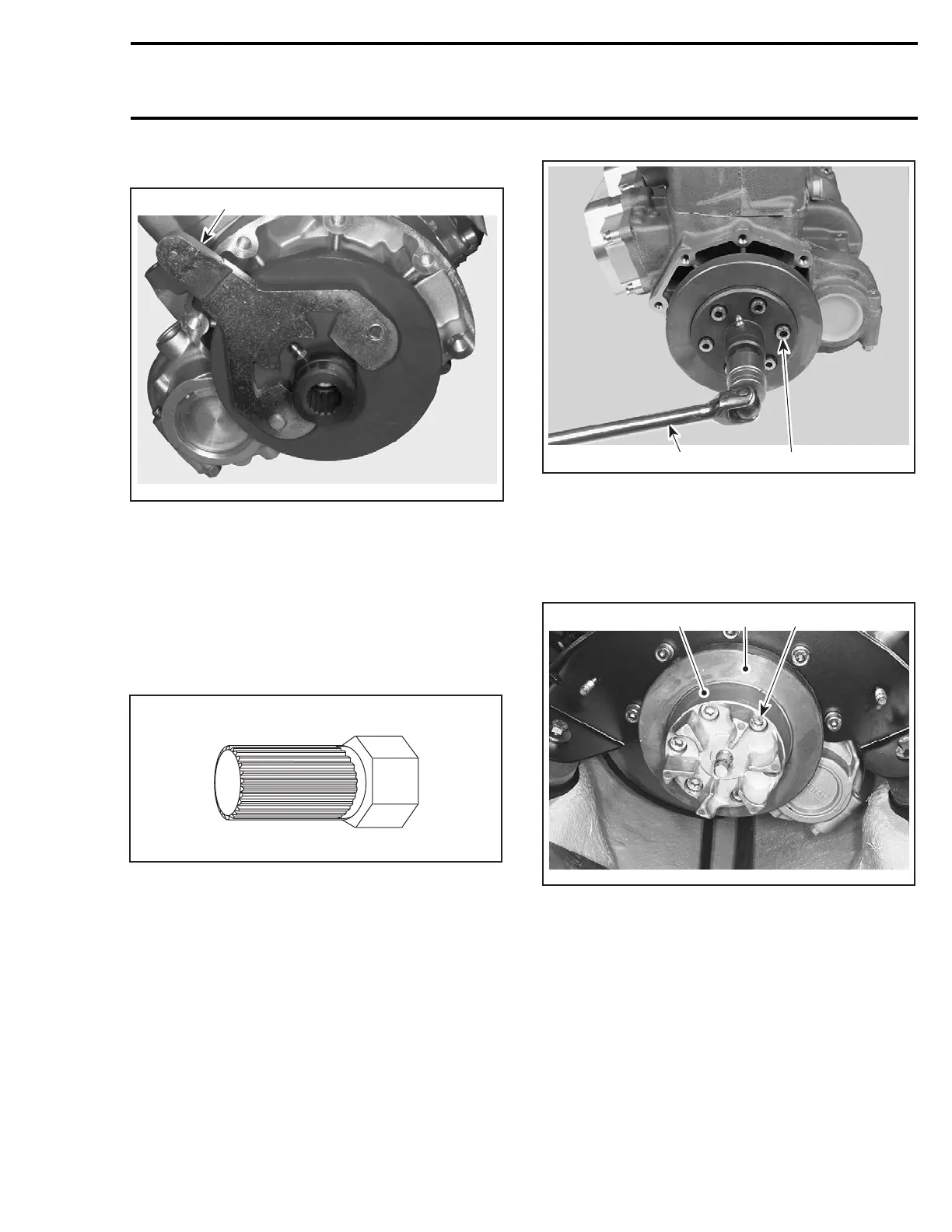

Section 04 ENGINE (2-STROKE)
Subsection 05 (BOTTOM END)
Install special tool.
F06I02A
1
1. PTO flywheel extractor
Install the extension handle (P/N 295 000 125) on
the PTO flywheel extractor. Loosen PTO flywheel
COUNTERCLOCKWISE when facing it.
947 DI Engines except XP DI
Use PTO flywheel remover (P/N 295 000 001) to
hold flywheel and remove Allen screws no. 21 re-
taining coupler no. 20 to PTO flywheel.
F01J0TA
PTO FLYWHEEL REMOVER TOOL
F06D37A
2
1
1. Loosen Allen screws
2. Breaker bar locking crankshaft
Remove the coupler no. 20.
XP DI Models
Remove Allen screws no. 21.
2
F08D02A
31
1. PTO flywheel
2. Coupler
3. Loosen Allen screw
Remove coupler no. 20.
947 DI Engines
Install puller plate (P/N 529 035 533) and extension
handle (P/N 295 000 125) to PTO flywheel.
NOTE: Puller plate can be used without the exten-
sion handle.
smr2004-Complete Line Up 133
