Section 06 ENGINE MANAGEMENT (RFI)
Subsection 01 (OVERVIEW)
OVERVIEW
F07F18S
1
3
2
4
5
6
15
7
8
9
11
12
10
14
13
16

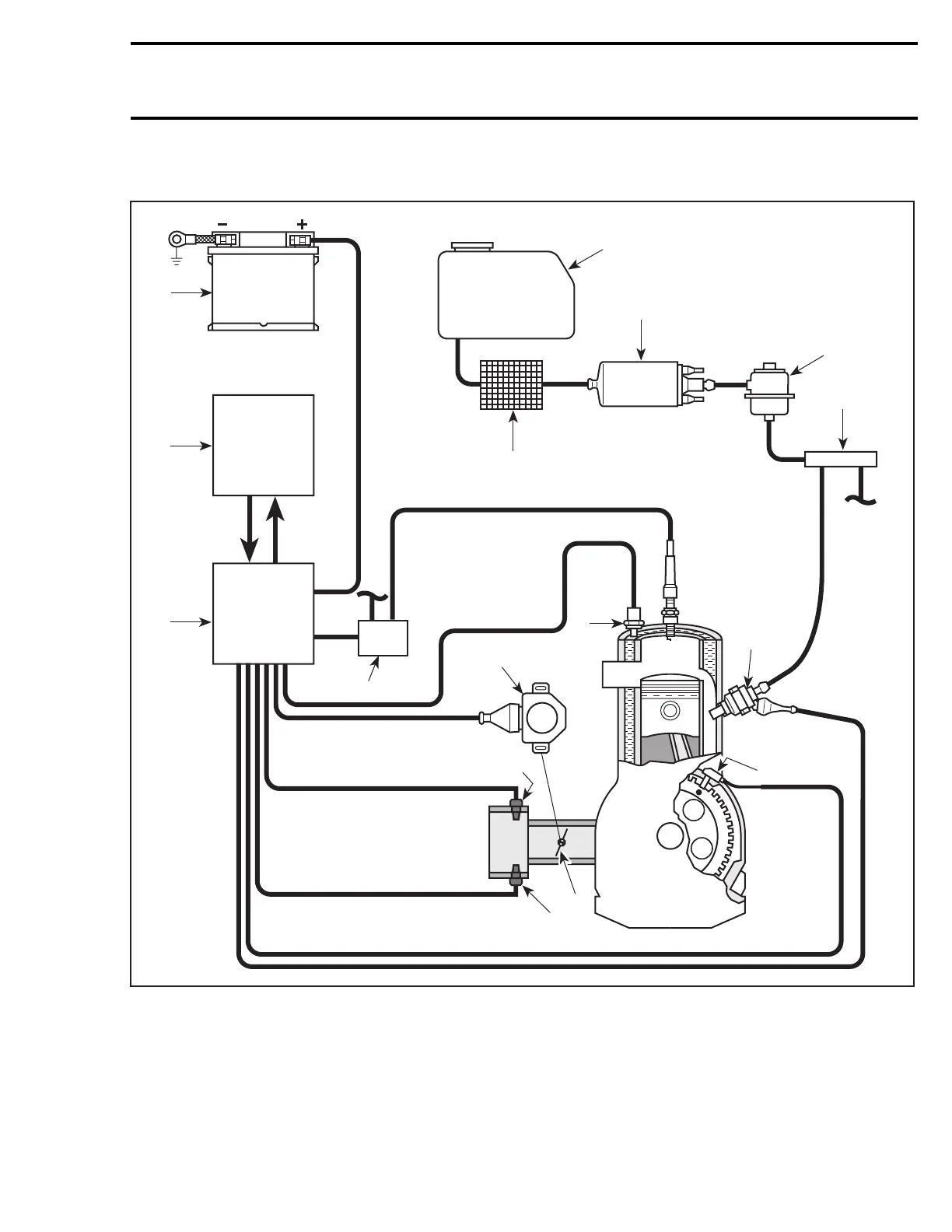

DESCRIPTION OF THE FUEL INJECTION SYSTEM
1. Fuel tank
2. Fuel filter
3. Fuel pump
4. Regulator
5. Fuel rail
6. Fuel injector
7. Electronic Control Unit (ECU)
8. Multi-Purpose Electronic Module (MPEM)
9. Throttle plate
10. Throttle Position Sensor (TPS)
11. Air Pressure Sensor (APS)
12. Air Temperature Sensor (ATS)
13.Crankshaft Position Sensor (CPS)
14.Water Temperature Sensor (WTS)
15. Battery
16. Ignition coil
