SeaDoo GTX 4-TEC Supercharged User Manual

Section 13 PROPULSION
Subsection 01 (JET PUMP)

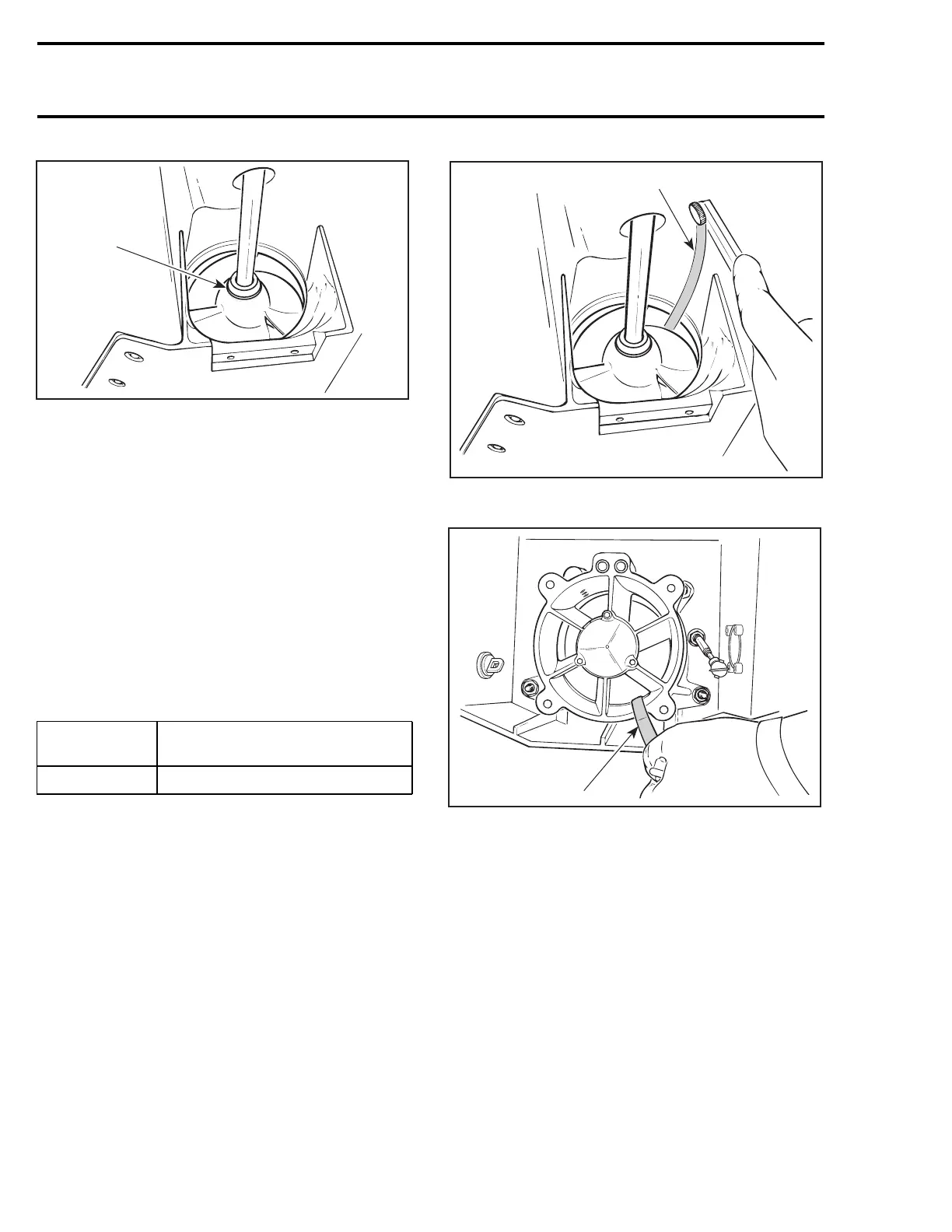

F01J0DA
1
TYPICAL
1. Inspect impeller and boot
Impeller/Wear Ring Clearance
This clearance is critical for jet pump performance.
Clearance can be checked from water inlet open-
ing or from venturi side. However, the last
method requires more work.
To check clearance from water inlet side, remove
inlet grate.
To check clearance from venturi side, remove ven-
turi/nozzle assembly.
Using a feeler gauge with 30 cm (12 in) blades,
measure clearance between impeller blade tip and
wear ring. Measure each blade at its center.
MODEL
MAXIMUM WEAR CLEARANCE
mm (in)
All 4-TEC 0.35 (.014)
If clearance is greater, disassemble jet pump and
inspect impeller and wear ring. Renew worn
parts.
F01J0EA
1
TYPICAL — MEASURING FROM WATER INLET SIDE
1. Feeler gauge
F01J0FA
1
TYPICAL — MEASURING FROM VENTURI SIDE
1. Feeler gauge
REMOVAL
Pump Assembly
Remove O.P.A.S. “U” lever screws.
