Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)

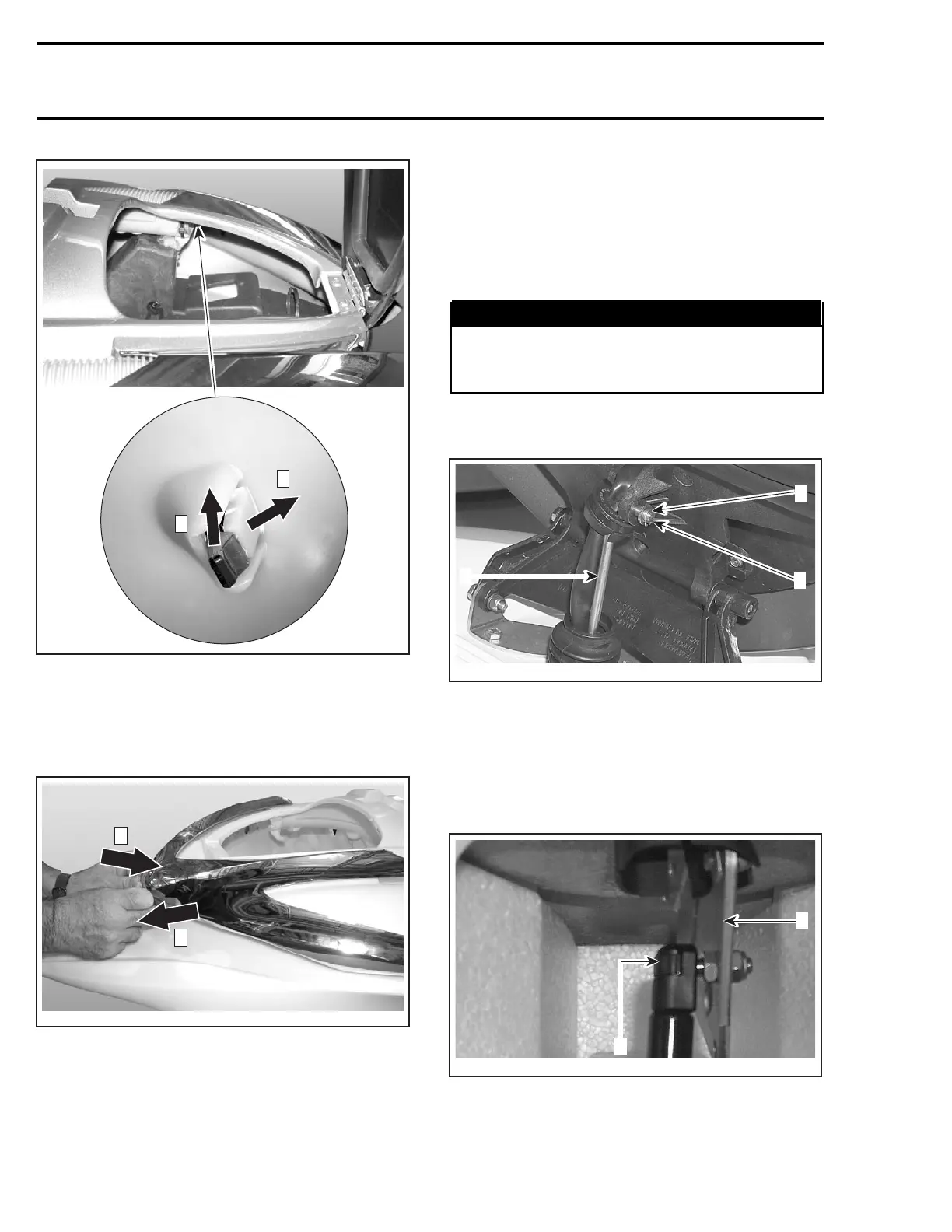

F19L1KA
1
2
Step 1: Release the locking tab and HOLD
Step 2: Push tab upward
– Release front part of grill and remove it.
At installation, first install the front part of front
grill. Do not snap rear tabs yet.
F19L1NA
1
2
Step 1: Pull out the bottom edges by slightly twisting to hook up
Step 2: Push the top corner to snap in
Ensure to properly position and secure top tubes.
Snap the other tabs of front grill.
Install screws to retain front grill.
Reinstall inner shell.
STORAGE COVER SHOCK
All Models except XP DI
To remove storage cover shock proceed as fol-
lows:
WARNING
Make sure to have a 2 x 4 piece of wood
around the work bench to support the stor-
age cover while changing the cover shock.
– Unlock shock rod from circlip and remove wash-
er.
F18L1NA
1
3
2
1. Shock rod
2. Circlip
3. Washer
– Release the shock from top linkage bracket
and bottom support bracket by inserting a flat
screwdriver in the shock top and bottom lock-
ing devices.
F18L1YA
1
2
1. Top linkage bracket
2. Shock top locking device
744 smr2004-Complete Line Up
