Section 06 ENGINE MANAGEMENT (RFI)
Subsection 01 (OVERVIEW)
F07F0KA
1
2

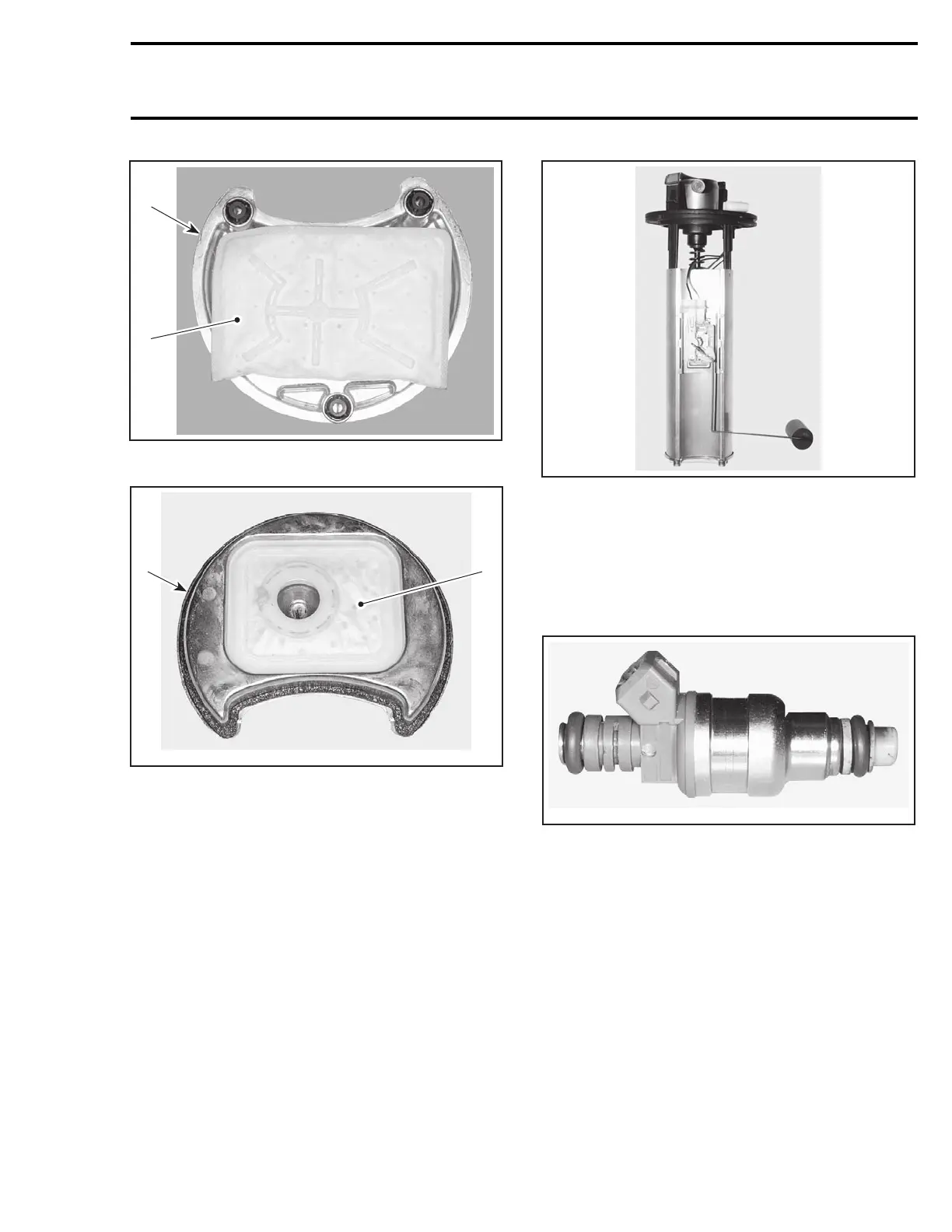

1. Fuel pump assembly
2. External fuel filter
F07F0LA
2
1
1. End cap of fuel pump assembly removed
2. Internal fuel filter
Under normal condition of use, the fuel filter does
notneedtobereplaced.
FUEL PUMP MODULE
All these components are comprised in a single
module mounted in the fuel tank. The fuel gauge
sender is also mounted on this module.
F07F09A
FUEL PUMP ASSEMBLY
FUEL INJECTORS
The injectors inject a metered quantity of fuel from
the fuel rail into the cylinder rear transfer port in ac-
cordance with the signal from the Electronic Con-
trol Unit (ECU).
F07F0AA
INJECTOR
ELECTRONIC MANAGEMENT
ELECTRONIC CONTROL
UNIT (ECU)
The electronic fuel injection is equipped with a
Bosch Electronic Control Unit (ECU).
smr2004-Complete Line Up 299
