Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
NOTE: Pay attention not to drop retaining blocks
under cover when removing screws.
Pull out engine cover.

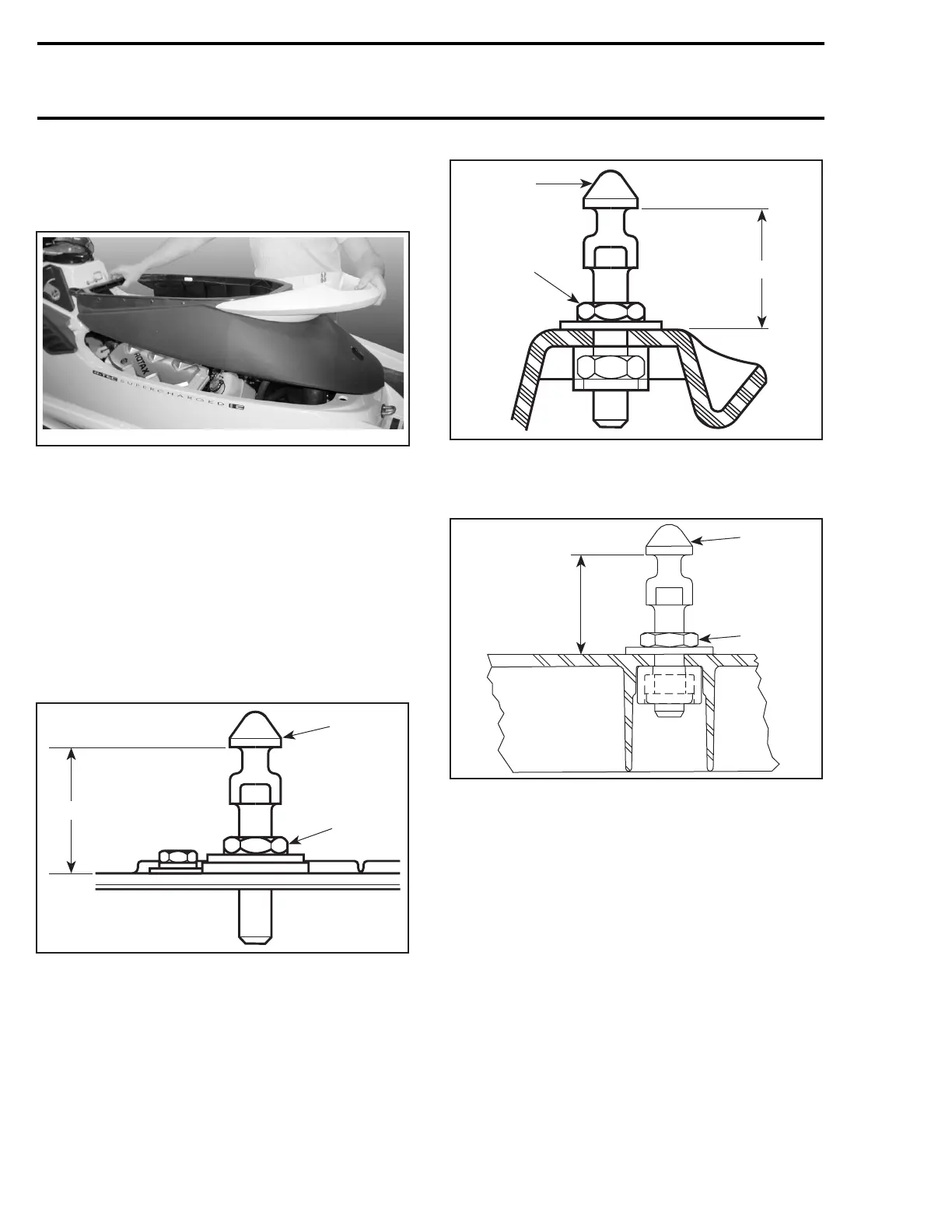

F19L1SA
Assembly is the opposite procedure of removal.
Ensure to tighten screws in a criss-cross order and
to torque to 18 N•m ((159 lbf•in).
SEAT ADJUSTMENT
Seat Retainer
NOTE: Apply Loctite 243 on threads of lock pin
when the adjustment is required or when the lock
pin is removed then reinstalled. The threads on
new lock pin are coated with a self-locking prod-
uct, do not apply Loctite 243 on threads.
F07L08A
A
2
1
TYPICAL— GTX 4-TEC SERIES — FRONT SEAT
1. Lock pin
2. Adjustment nut (Loctite 243). Torque to 5 N•m(44lbf•
in)
A. 33 ± 1 mm (1-35/64 ± 3/64 in)
F06L03A
A
1
2
TYPICAL — GTX 4-TEC SERIES — REAR SEAT
1. Lock pin
2. Adjustment nut (apply Loctite 243). Torque to 5 N•m(44lbf•
in)
A. 35 ± 1 mm (1-5/16 ± 3/64 in)
A
2
F17L0PA
1
GTI SERIES — FRONT SEAT
1. Lock pin
2. Adjustment nut (apply Loctite 243). Torque to 5 N•m(44lbf•
in)
A. 35 ± 1 mm (1-5/16 ± 3/64 in)
