Section13PROPULSION
Subsection 02 (DRIVE SYSTEM)
F00J04B
1

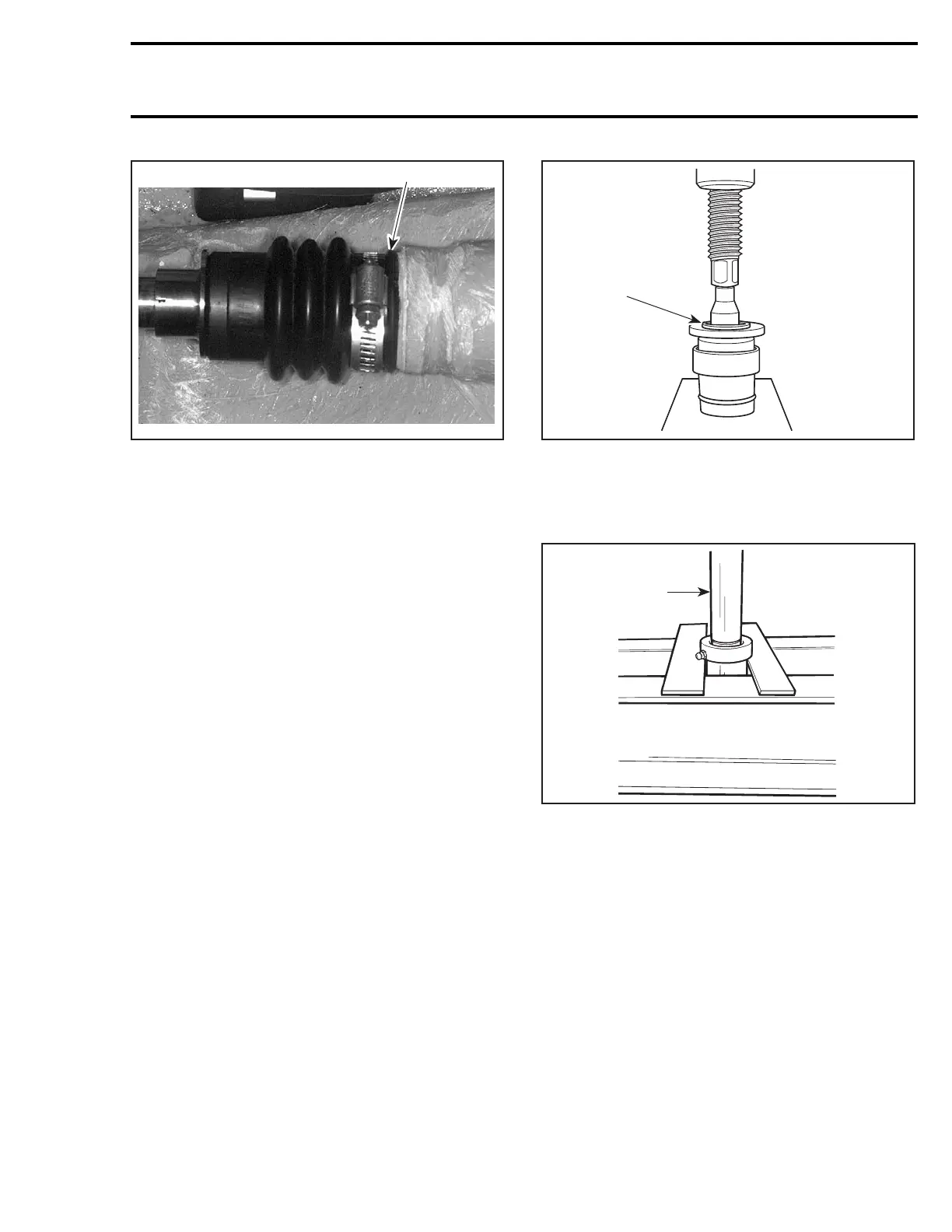

1. Spacer
NOTE: Drive shaft must be removed to install
spacer.
Seal Carrier of Mid Bearing
XP DI Models
Inspect seal carrier needle bearing no. 16.Check
parts for scoring, pitting, chipping or other evi-
dence of wear.
Inspect seals no. 15 for deterioration or excessive
wear. Replace if necessary.
ASSEMBLY
Seal Carrier of Mid Bearing
XP DI Models
Properly support seal carrier housing no. 17 when
installing seals and bearing.
CAUTION: Ensure to install stamped end of
bearing (showing identification markings) first
on tool. Never hammer the bearing into its
housing.
Install bearing no. 16 with the bearing/seal in-
staller tool (P/N 295 000 107).
F01J51A
1
1. Press bearing in its housing
NOTE: Bearing can also be installed with the same
driver used at disassembly. Center bearing in lon-
gitudinal axis of housing.
1
F01J2TA
1. Push bearing centered in its housing
Install double-lip seal no. 15 with protector toward
jet pump.
On both seals no. 15, raised edge of lip must be
located outwards of seal carrier.
smr2004-Complete Line Up 665
